ABB - Low Voltage Drives AF305-40-22-11

ABB - Low Voltage Drives AF305-40-22-11 by ABB - Low Voltage Drives

Call for Price
  • Part Number: AF305-40-22-11
  • UPC: 00888614427730
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

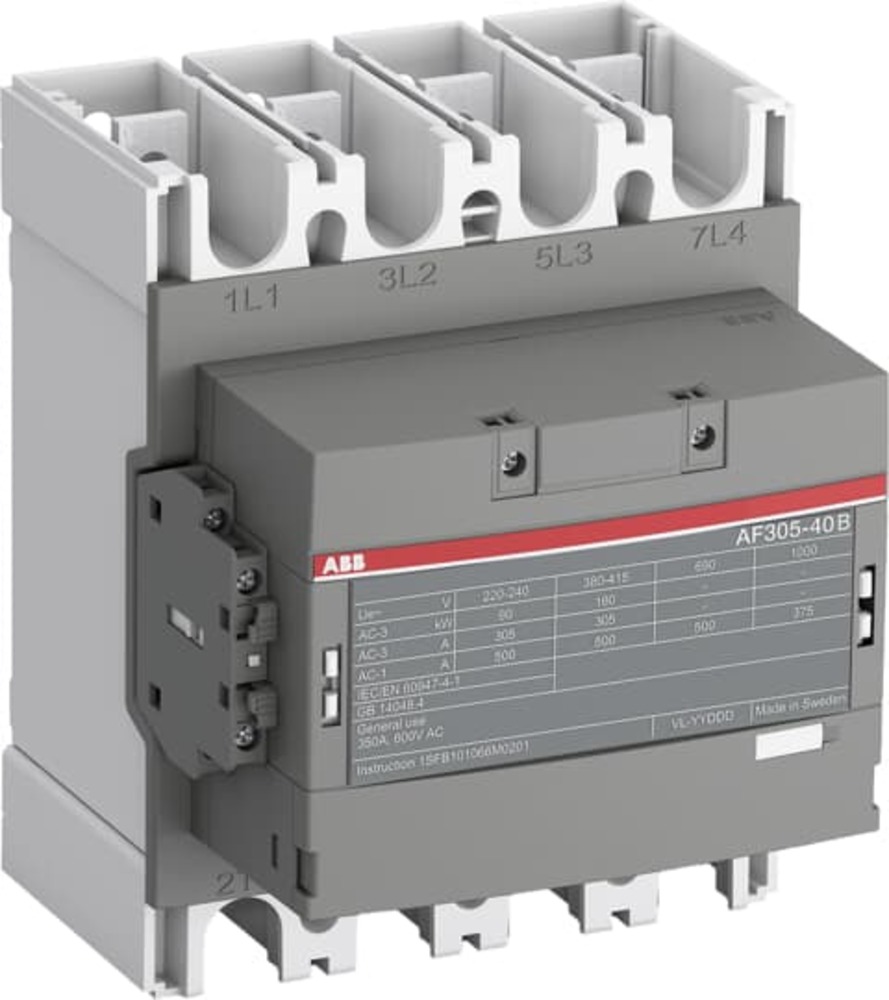

ABB AF305-40-22-11 3-Phase AC/DC Operated IEC Contactor, 24 to 60 VAC, 20 to 60 VDC V Coil, 350/500 A, 4NO Contact, 4 Poles
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Contactors
Category Level 3:
NEMA & IEC Contactors
Coil Power Rating:
90/160 kW
Coil Voltage:
24 to 60 VAC, 20 to 60 VDC
Connection Type:
Flat
Contact Configuration:
4NO
Dimensions:
225 mm H x 184 mm W x 180 mm D
Enclosure Type:
IP00/IP20
Frequency Rating:
50/60 Hz
Maximum Load Current:
350/500 A
Number of Auxiliary Contacts:
2NO-2NC
Number of Poles:
4
Operating Cycles:
5000000 Cycles
Operating Temperature:
-40 to 70 deg C
Terminal Type:
Screw
Type:
3-Phase AC/DC Operated
Additional Information
Manufactured By:
ABB - Low Voltage Drives
