ABB - Low Voltage Drives AF30Z-30-00-23

ABB - Low Voltage Drives AF30Z-30-00-23 by ABB - Low Voltage Drives

Call for Price
  • Part Number: AF30Z-30-00-23
  • UPC: 00804325538855
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

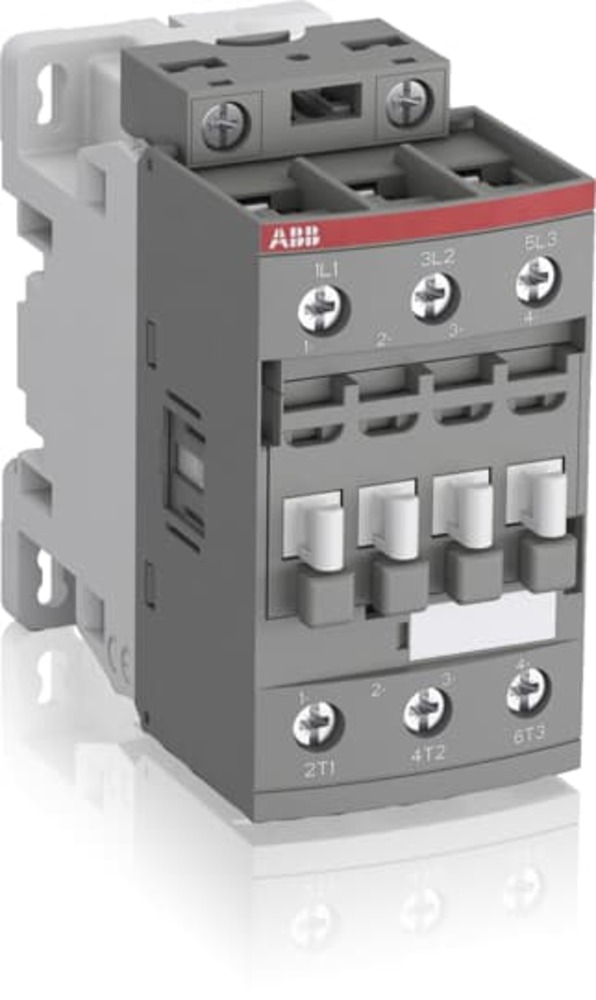

ABB AF30Z-30-00-23 AC/DC Operated Low Coil Consumption Non-Reversing IEC Contactor, 100 to 250 VAC/VDC V Coil, 32.2 A, 3NO Contact, 3 Poles
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Contactors
Category Level 3:
NEMA & IEC Contactors
Coil Power Rating:
15 kW, 20 hp, 25 hp
Coil Voltage:
100 to 250 VAC/VDC
Connection Type:
Cable Clamp
Contact Configuration:
3NO
Dimensions:
86 mm H x 45 mm W x 86 mm D
Enclosure Type:
IP20
Frequency Rating:
50/60 Hz
Maximum Load Current:
32.2 A
Number of Poles:
3
Operating Cycles:
10000000 Cycles
Operating Temperature:
-60 to 80 deg C
Terminal Type:
Screw
Type:
AC/DC Operated Low Coil Consumption Non-Reversing
Additional Information
Manufactured By:
ABB - Low Voltage Drives
