Product Overview

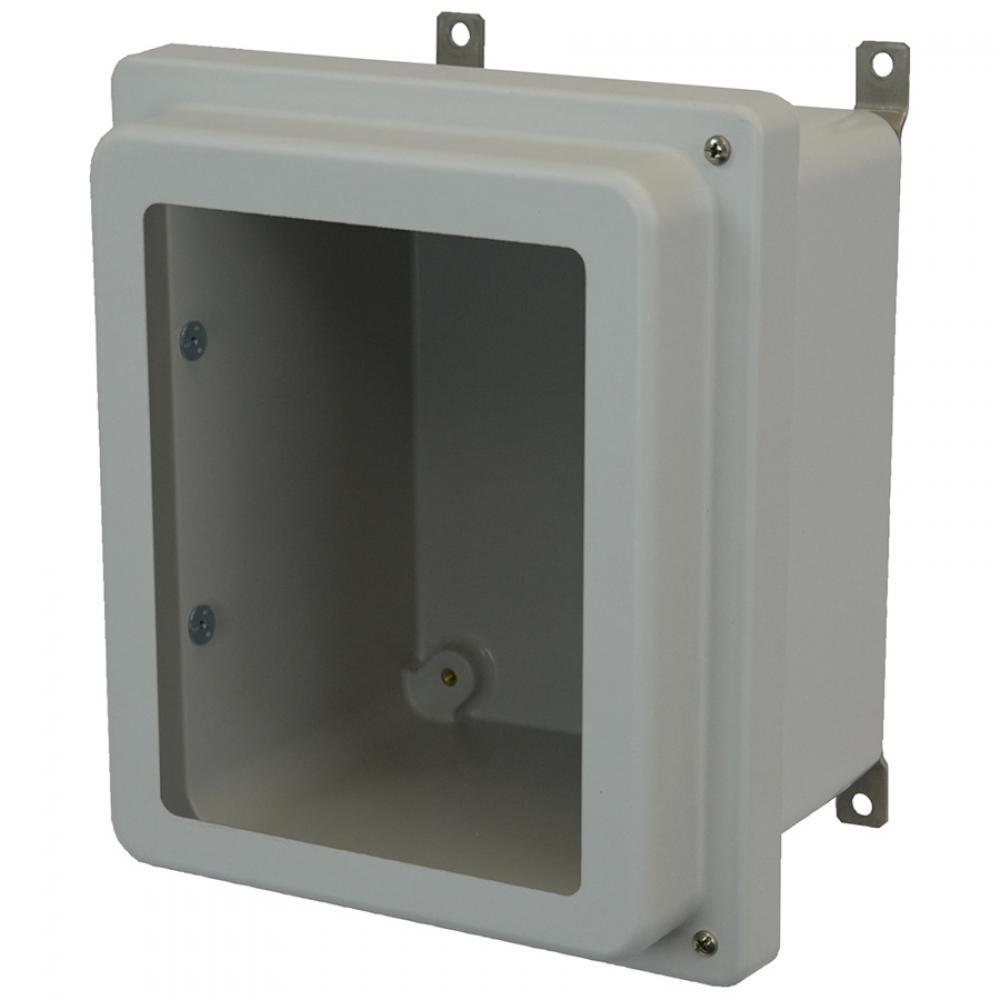

Allied Moulded AM864RHW AM-R Series JIC Size Junction Box With Matching Cover, 8 in L x 6.13 in W x 4.13 in D, Raised/Hinged 2-Screw Clear Window Cover, NEMA 4X, ULTRAGUARD® Fiberglass Reinforced Polyester/Thermoset
Specifications
Details
Category Level 1:
Enclosures, Cabinets & Racks
Application:
For industrial control panels intended for general industrial use, operating from a voltage of 600 VAC or less, enclose and protect electrical and electronic controls, instruments or components for indoor and outdoor applications and especially well suited
Cover Type:
Raised/Hinged 2-Screw Clear Window
Insulation:
Non-Conductive/Non-Metallic
Material:
ULTRAGUARD® Fiberglass Reinforced Polyester/Thermoset
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 508A, UL 50 and UL 50E, File No. E120175|cULus Listed|CSA C22.2 No. 14 and No. 94, File No. 89590|cCSAus Certified|EN/IEC 60204-1 and 60529|CE Certified|ECCN: EAR99 Certified
Temperature Rating:
-40 to 266
-40 to 266 deg F
Manufactured By:
Allied Moulded Products
