Allied Moulded Products AMU1084WF

Allied Moulded Products AMU1084WF by Allied Moulded Products

Call for Price
  • Part Number: AMU1084WF
  • UPC: 00085339959533
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

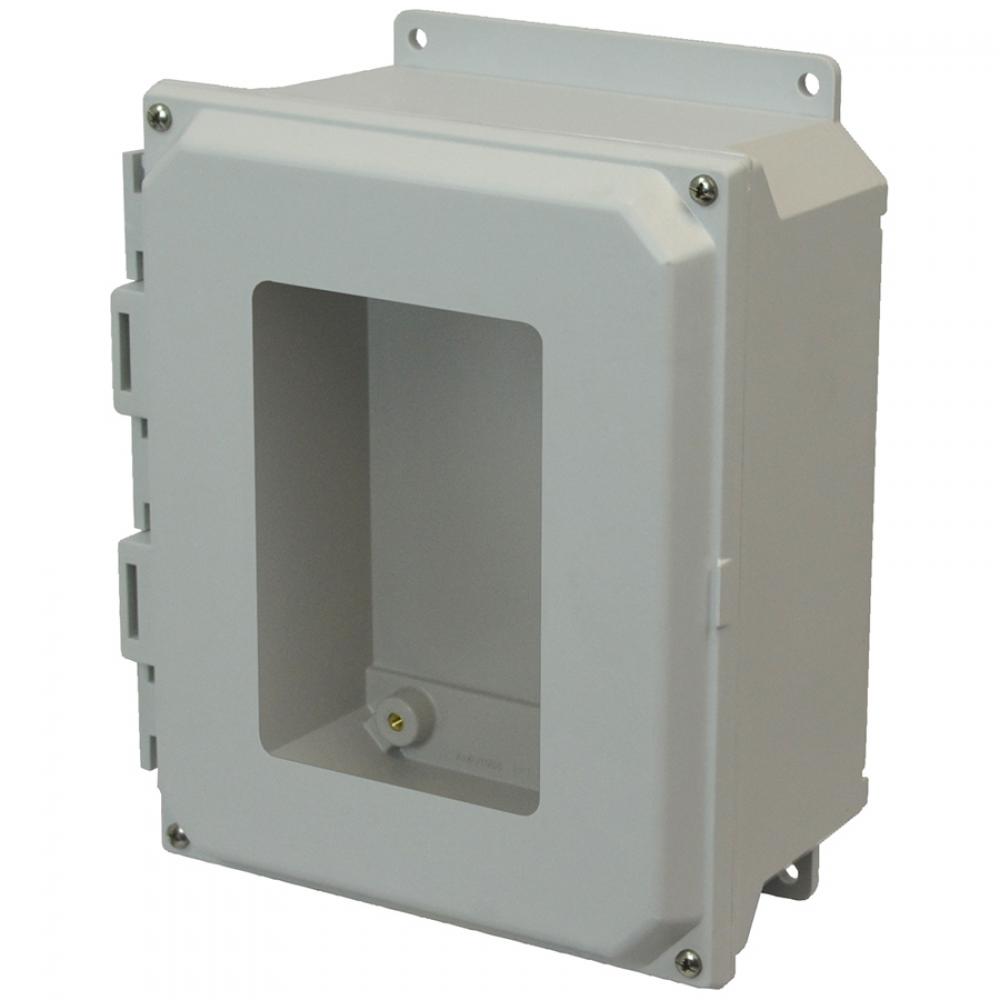

Allied Moulded Ultraline® AMU1084WF JIC Size Junction Box With Flush, Polycarbonate Cover, 10.05 in L x 8.27 in W x 4.13 in D, Lift-Off 4-Screw Clear Viewing Window Cover, NEMA 4X, ULTRAGUARD® Fiberglass Reinforced Polyester/Thermoset
Specifications
Details
Category Level 1:
Enclosures, Cabinets & Racks
Category Level 2:
Enclosures
Category Level 3:
Junction Boxes
Application:
For industrial control panels intended for general industrial use, operating from a voltage of 600 VAC or less, enclose and protect electrical and electronic controls, instruments or components for indoor and outdoor applications and especially well suited
Capacity:
416
416 cu-in
Category Name:
Junction Boxes
Color:
Gray
Country:
USA
Cover Type:
Lift-Off 4-Screw Clear Viewing Window
Depth:
4.13
4.13 in
Electrical Ratings:
600
600 VAC
Height:
10.05 in
Insulation:
Non-Conductive/Non-Metallic
Length:
10.0
10.05
Material:
ULTRAGUARD® Fiberglass Reinforced Polyester/Thermoset
Mounting Type:
Flange/Wall
NEMA Rating:
NEMA 4X
Panel Size:
8.75 in H x 6.88 in W
Series:
AMU Series
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 508A, UL 50 and UL 50E, File No. E120175|cULus Listed|CSA C22.2 No. 14 and No. 94, File No. 89590|cCSAus Certified|EN/IEC 60204-1 and 60529|CE Certified|ECCN: EAR99 Certified
Temperature Rating:
-40 to 266
-40 to 266 deg F
Type:
JIC Size
Unspsc:
39121332
Volume:
0.0
Weight:
4.0
Width:
8.27
8.27 in
Additional Information
Manufactured By:
Allied Moulded Products
