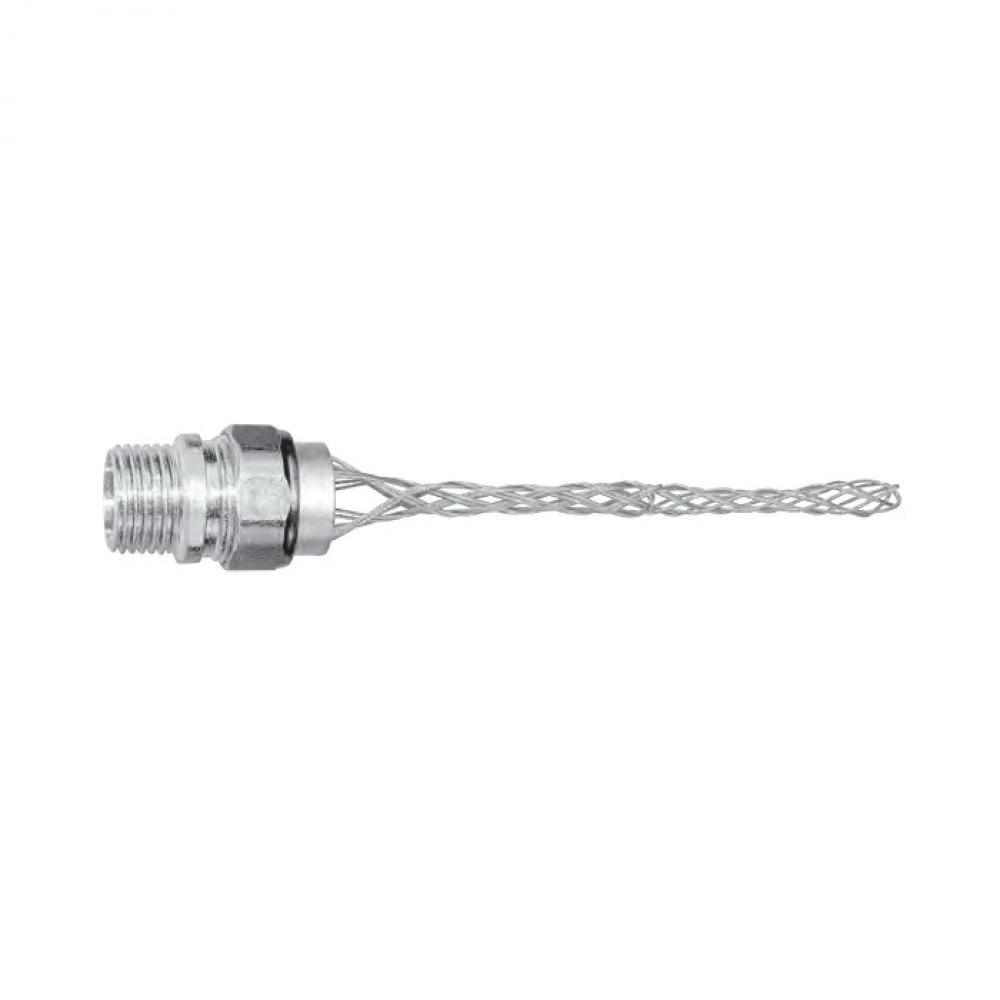

AMERICAN FITTINGS SPEC-grade‚Ñ¢ CG100B750GT Straight Cordgrip Connector With Wire Mesh Strain Relief, 1 in Trade
Details
Category Level 2:
Flexible Cord & Cable Fittings
Category Level 3:
Flexible Cord Connectors with Grips
All Features:
Industrial specification grade, screw machined steel, zinc plated|Provides a UL liquid tight and strain relief termination for flexible type, neoprene, vinyl, or PVC control cord and cable|Color coded grommet to indicate cable diameter range
CATEGORY NAME:
Flexible Cord Connectors with Grips
ITEM FEATURES 1:
Industrial specification grade, screw machined steel, zinc plated
ITEM FEATURES 2:
Provides a UL liquid tight and strain relief termination for flexible type, neoprene, vinyl, or PVC control cord and cable
ITEM FEATURES 3:
Color coded grommet to indicate cable diameter range
KEYWORDS:
SPEC-grade CG100B750GT Straight Cordgrip Connector With Wire Mesh Strain Relief, 1 in Trade ; AMERICAN FITTINGS ; CG100B750GT ; 662364500291 ; Flexible Cord Connectors with Grips
Matching Part Number:
AMERICANFITTINGSCG100B750GT
Merged Taxonomy Code:
240000000000|241200000000|241221000000
Merged Taxonomy Description:
Fittings & Connectors|Flexible Cord & Cable Fittings|Flexible Cord Connectors with Grips
PART NUMBER KEYWORDS:
CG100B750GT ; 662364500291 ; 66236450029
Standard/Approvals:
CSA LR61799|NEC Class I|Division 2 Class II|Divisions 1, 2 Class III|Divisions 1, 2 NEC 501-4(b)|505-4(a)|503-3(a)|UL 514B
Additional Information
- Cable Openings : 0.65 to 0.75 in
- Dimensions : 1-11/32 in Dia x 2-5/32 in L
- Material : Alloy Steel
- Mesh Length : 37438 in
- Trade Size : 1 in
- Type : Straight
Manufactured By:
AMERICAN FITTINGS
