Details
Category Level 2:
Strut Channels & Accessories
Category Level 3:
Channel Brackets & Braces
All Features:
1500 lb compression, 300 lb tension load rating|13/16 in from end, 1-7/8 in on-center hole spacing
CATEGORY NAME:
Channel Brackets & Braces
ITEM FEATURES 1:
1500 lb compression, 300 lb tension load rating
ITEM FEATURES 2:
13/16 in from end, 1-7/8 in on-center hole spacing
KEYWORDS:

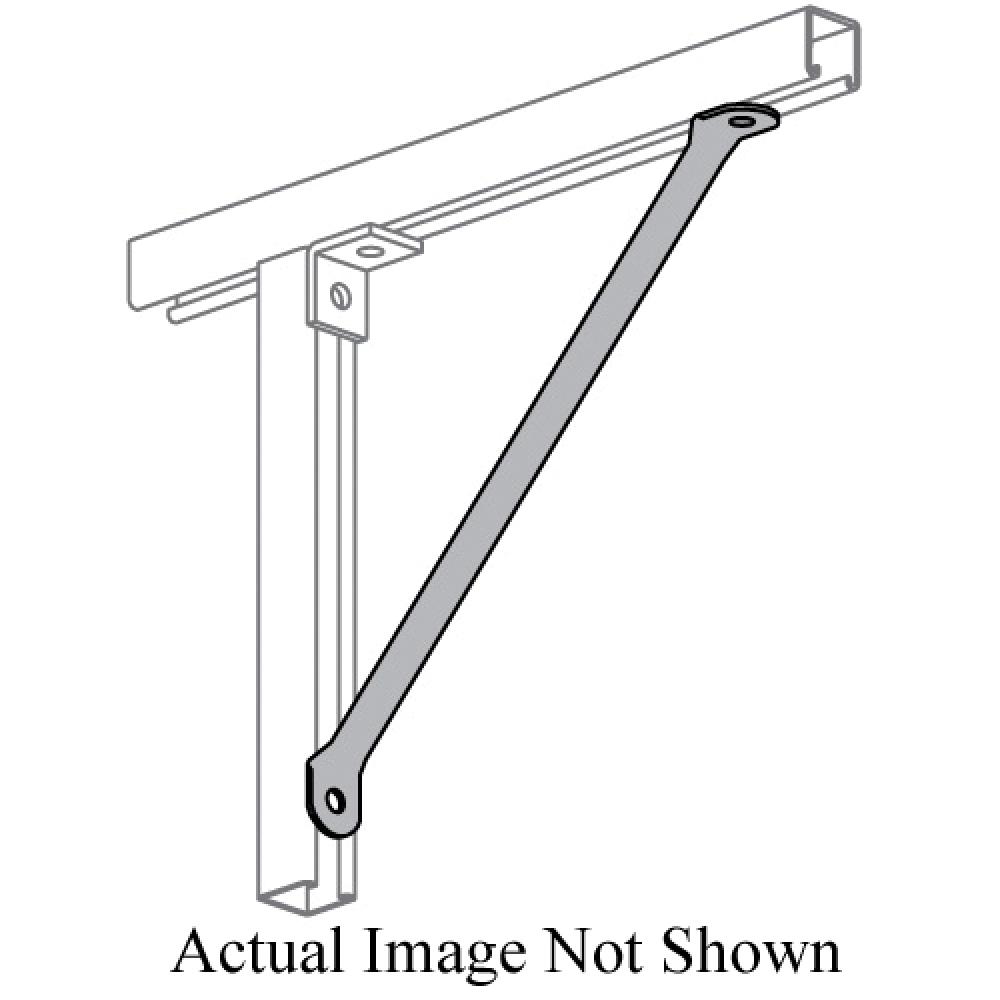

PS-812-18-GR PS 812 Diagonal Tubular Knee Brace, 18 in L x 1-5/8 in W x 1/4 in THK, Steel ; Atkore ; PowerStrut ; PS81218GR ; 721396 ; 702316524330 ; Channel Brackets & Braces
Merged Taxonomy Code:
140000000000|141300000000|141312000000
Merged Taxonomy Description:
Cable Trays & Struts|Strut Channels & Accessories|Channel Brackets & Braces
PART NUMBER KEYWORDS:
PS-812-18-GR ; PS81218GR ; 721396 ; 8632548 ; 702316524330 ; 70231652433 ; 00702316524330
Standard/Approvals:
Buy American Act Compliant
Additional Information
- Depth : 1-17/32 in
- Finish : Power-Green®
- Hole Size : 17/32 in Dia
- Hole Spacing : 13/16, 1-7/8 in
- Length : 18 in
- Load Capacity : 1500/300 lb
- Material : Steel
- Series : PS 812
- Thickness : 1/4 in
- Type : Diagonal Tubular
- Width : 1-5/8 in
