Eaton 6067 HEELS

Eaton 6067 HEELS by Eaton

Call for Price
  • Part Number: 6067 HEELS
  • UPC: 00782051114645
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

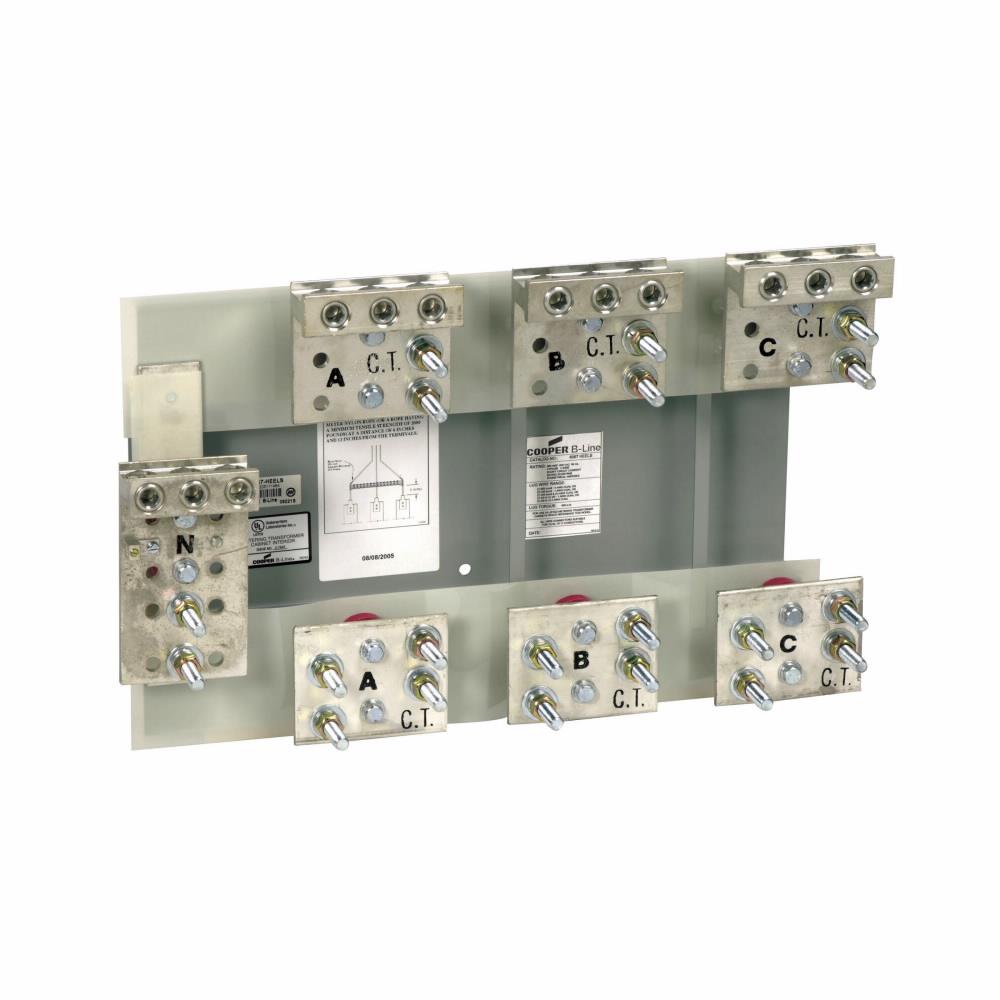

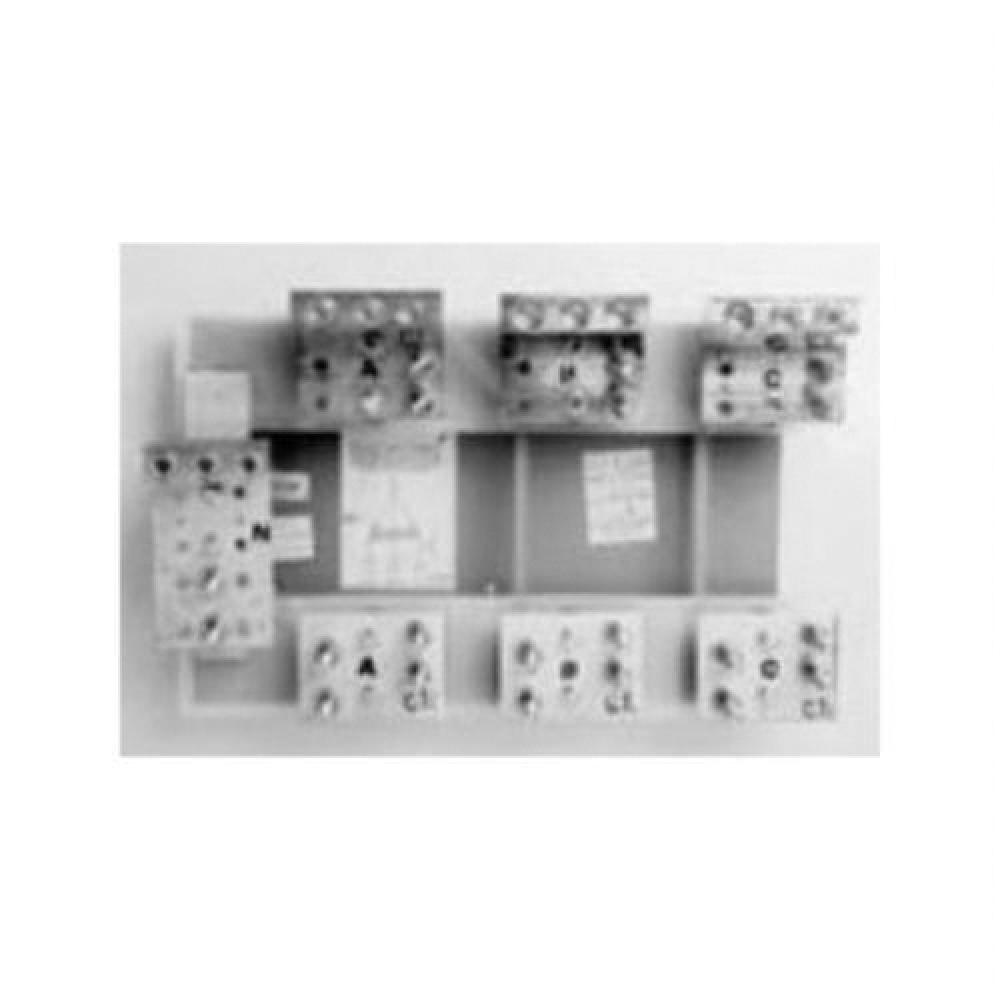

B-Line 6067 HEELS 4-Wire Current Transformer Mounting Base, 600 VAC, 800 A, Stud/Lug Terminal, 3 Phase, Surface Mount
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Metering Equipment Accessories
Category Level 3:
Current Transformer Bases
Amperage Rating:
800
800 A
Application:
For use on current transformer meter, overhead, underground, current transformer rated metering enclosure
Category Name:
Current Transformer Bases
Country:
USA
Finish:
Gray Acrylic Electro Coated
Interrupt Rating:
50
50 kA
Length:
24.0
Mounting Type:
Surface
Number of Provisions:
3
Phase:
3
Standard/Approvals:
ARRA, Buy American Act and RoHS Compliant, Federal Spec WW-H-171E, A-A-1192A, ANSI/MSS SP-69, SP-58, Type 23, UL/cUL Listed
Terminal Type:
Lug/Stud
Stud/Lug
Type:
4-Wire
Unspsc:
39121102
Voltage Rating:
600
600 VAC
Volume:
0.0
Weight:
24.0
Wire Size:
4 AWG to 600 kcmil
4 AWG to 600 MCM
Additional Information
Manufactured By:
Eaton
