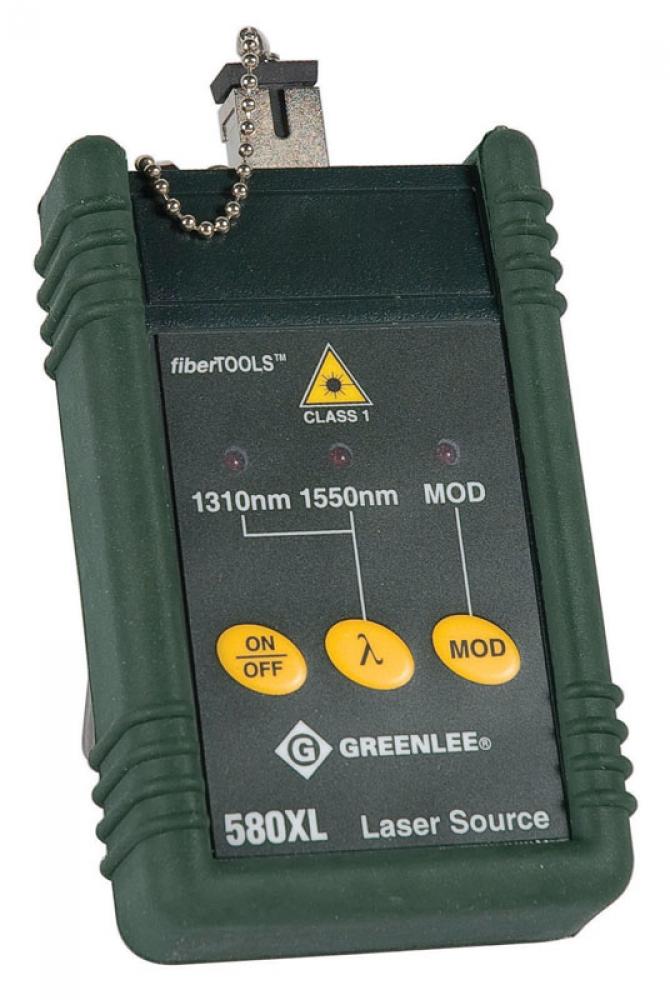

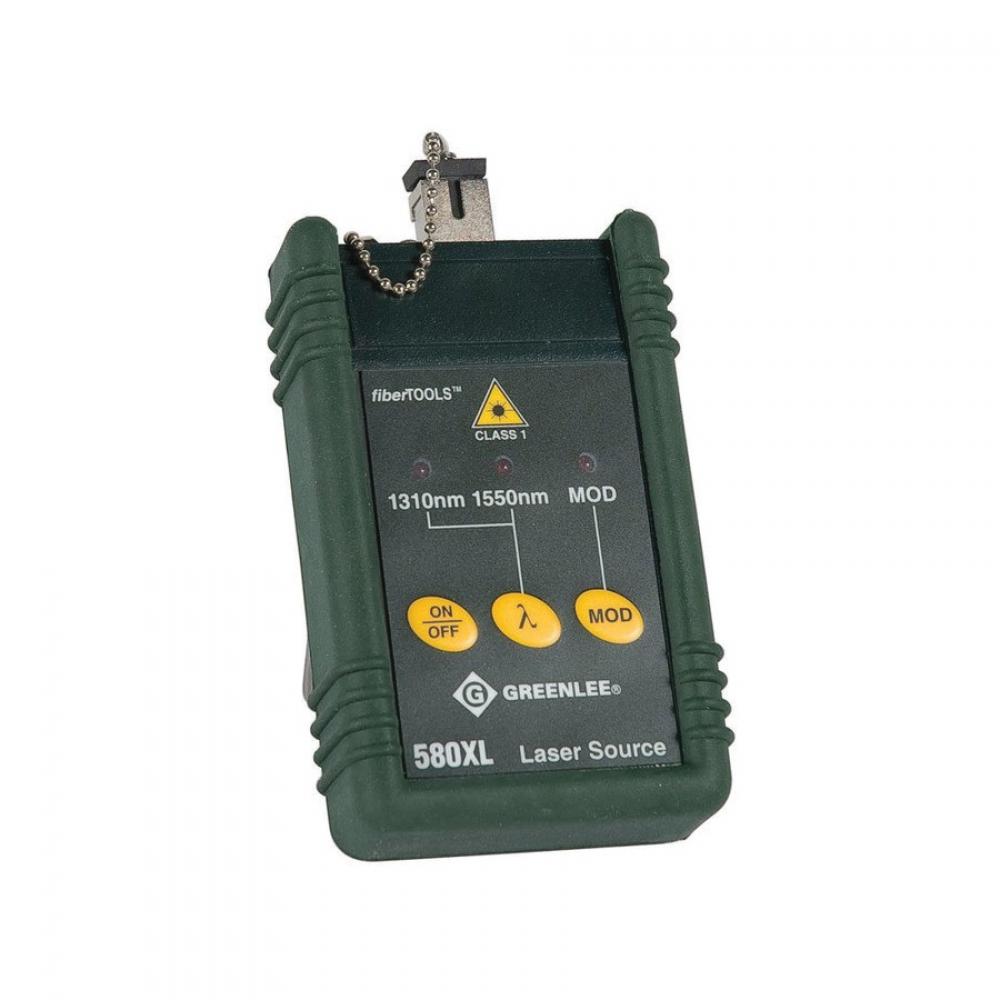

Greenlee Textron 580XLSC

Greenlee Textron 580XLSC by Greenlee Textron

Call for Price
  • Part Number: 580XL-SC
  • UPC: 00783310844907
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Greenlee® fiberTOOLS® 580XL-SC 580XL Laser Source, 1310/1550 nm, -8 dBm min, -7 dBm Typical, SC Interface, AA Alkaline
Specifications
Details
Category Level 1:
Testing & Measuring
Category Level 2:
Datacommunications Testers
Category Level 3:
Fiber Optic Tester Light Sources
Battery:
AA Alkaline
Category Name:
Fiber Optic Tester Light Sources
Connector:
SC Interface
Country:
USA/Canada
Dimensions:
2.8 in L x 5.6 in W x 1.4 in H
Length:
0.0
Modulation Frequencies:
270 kHz/1 kHz/2 kHz
Output Power:
-8 dBm min, -7 dBm Typical
Output Stability:
+/- 0.05 dB for 1 HR
Power Supply:
(2) 1.5 V Batteries
Series:
580XL
Standard/Approvals:
EN61010, EN50081-1: 1992, EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4, ARRA Compliant, RoHS Compliant
Storage/Operating Temperature:
-35 to 70 deg C
Unspsc:
41113717
Volume:
0.0
Wavelength:
1310/1550
Weight:
28.5
Additional Information
Manufactured By:
Greenlee Textron
