Hubbell AYP500

Hubbell AYP500 by Hubbell

Call for Price
  • Part Number: AYP500
  • UPC: 00781810737743
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

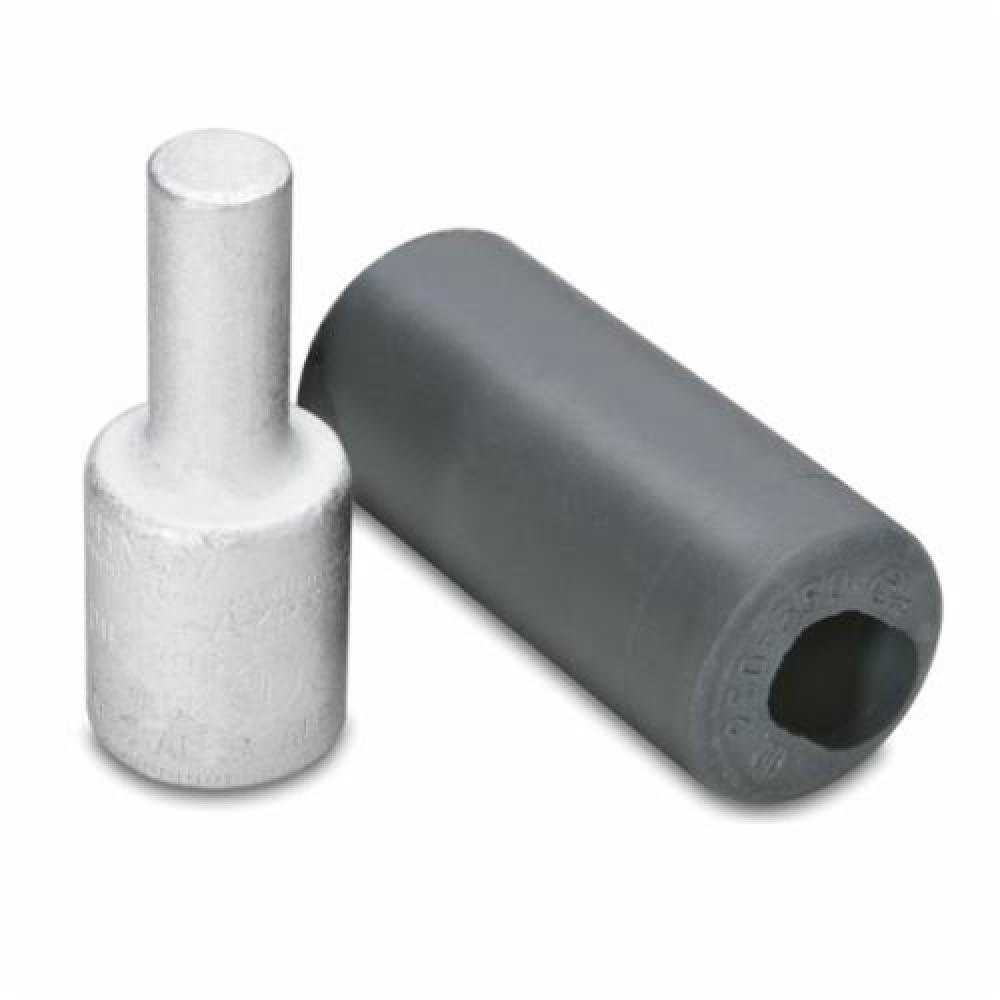

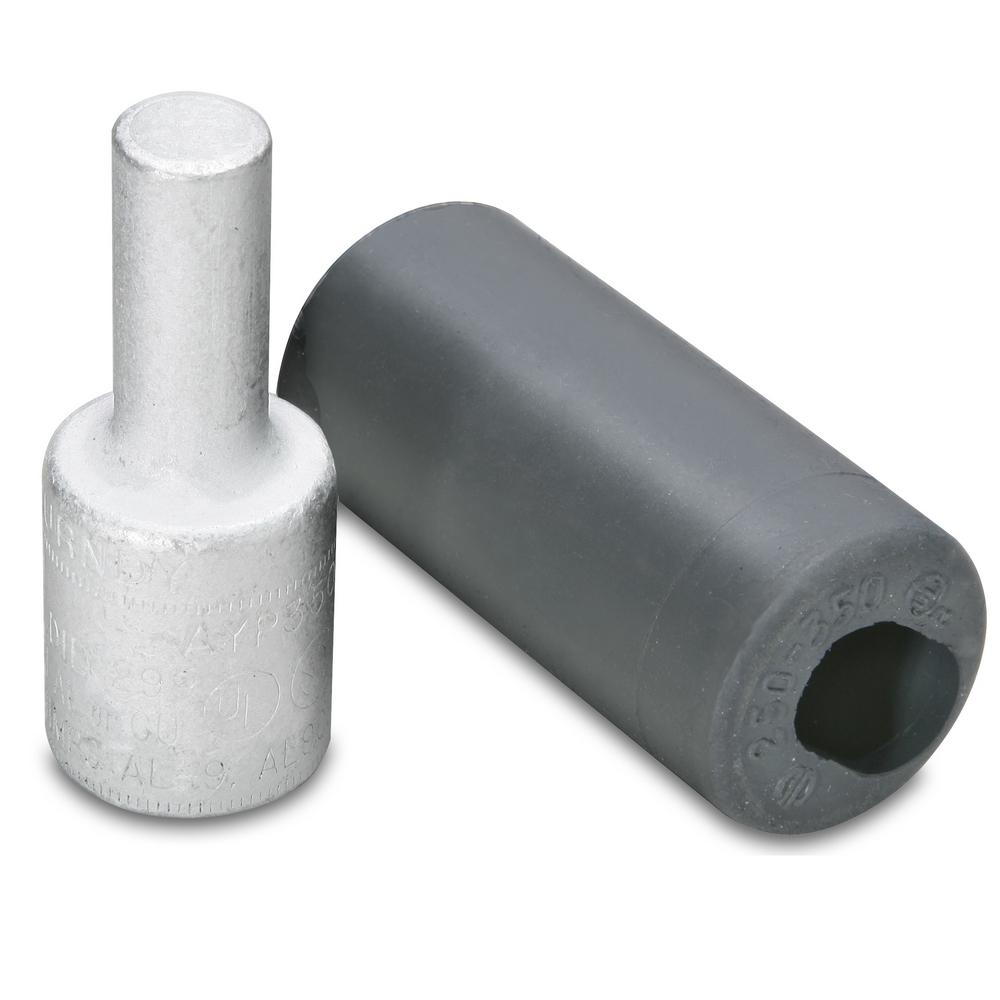

BURNDY® HYPLUG™ AYP500 Type AYP Straight Compression Pin Adapter, 500 kcmil Conductor, Die Code: 300 Element A, 0.68 in Dia x 1.6 in L Pin, Aluminum
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Compression Connectors & Lugs
Category Level 3:
Compression Terminal Pin Adapters
Application:
For aluminum and copper conductors, mechanical connectors in molded case circuit breakers, panel board equipment and meter sockets
Barrel Length:
1-1/16
1-1/16 in
Category Name:
Compression Terminal Pin Adapters
Color Code:
Pink
Conductor Size:
500
500 kcmil
Country:
USA
Die Code:
300 Element A
Dimensions:
38 in L
Length:
7.0
Material:
Aluminum
Pin Diameter:
0.68
0.68 in
Pin Length:
1.6
1.6 in
Specifications:
2.81 in Cover, 1-1/8 in L Wire Strip, Electro-Plated Tin, 90 deg C Temperature Rating
2.81 in Cover, 1-1/8 in L Wire Strip, Tin-Electro Plated, 194 deg F
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of Californ
Type:
Type AYP Straight
Unspsc:
39121448
Voltage Rating:
600 to 35000
600 to 35000 VAC
Volume:
0.0
Weight:
3.0
Additional Information
Manufactured By:
Hubbell
