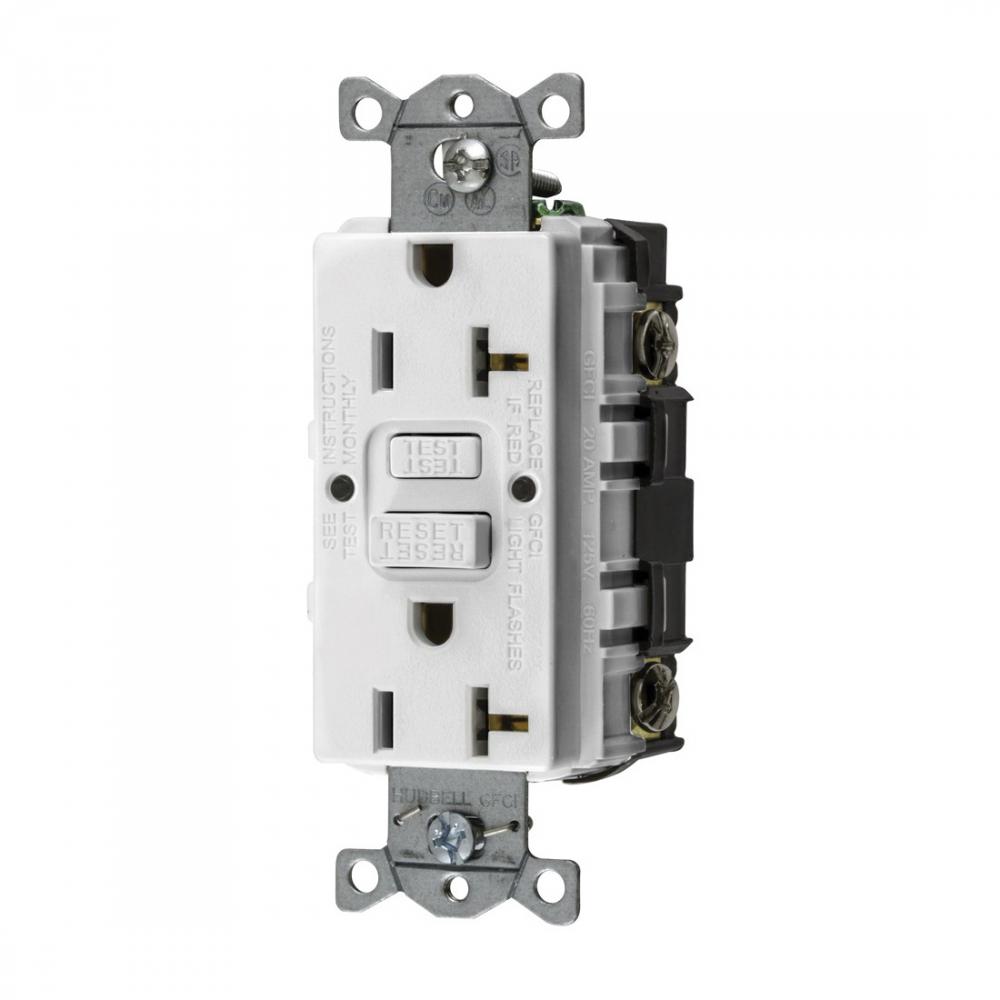

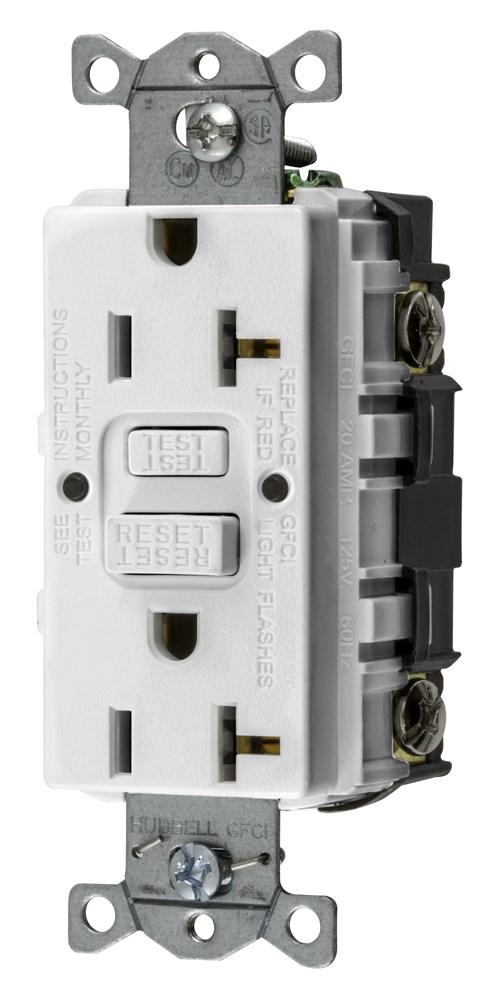

Wiring Device-Kellems AUTOGUARD® Style Line GFRST20W3 Decorator Duplex Heavy Duty Standard Straight Blade Self-Test GFCI Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
GFCI Devices
Category Level 3:
GFCI Receptacles
Amperage Rating:
20
20 A
Application:
Dry Locations and Indoor Applications
Category Name:
GFCI Receptacles
Color:
White
Country:
USA
Dimensions:
1.75 in W x 1.47 in D
Frequency Rating:
60
60 Hz
Grade:
Commercial
Horsepower:
1
1 hp
Length:
6.0
Material:
Composite/Nylon/Thermoplastic
NEMA Rating:
NEMA 5-20R
Number of Poles:
2
Number of Wires:
3
Standard/Approvals:
ANSI 73, UL 498, 943, File No. E41978, CSA Certified, NEMA WD6, NEC, CEC, ARRA, Buy American Act Compliant
Temperature Rating:
-40 to 75
-40 to 75 deg C
Terminal Type:
Back and Side Wired/Screw
Back/Side Wired Screw
Type:
Decorator Duplex Heavy Duty Standard Straight Blade Self-Test
