Hubbell HBL2365

Hubbell HBL2365 by Hubbell

Call for Price
  • Part Number: HBL2365
  • UPC: 00783585128962
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

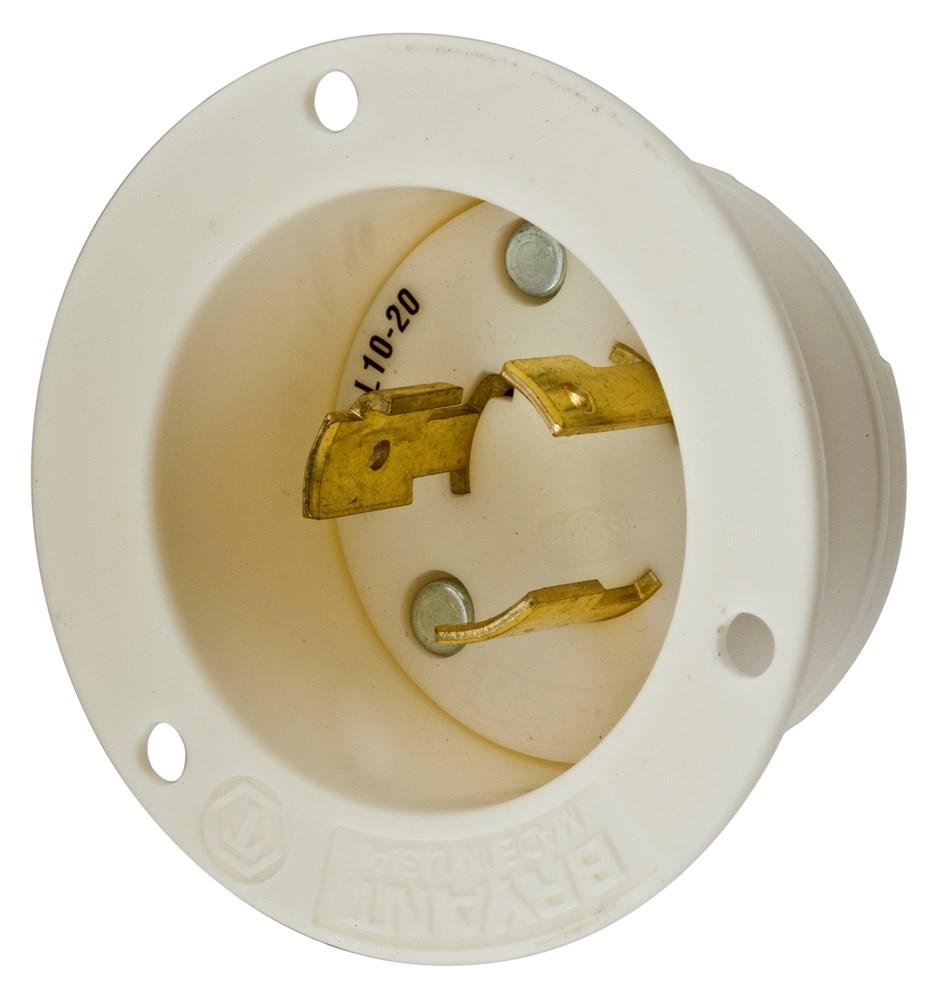

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2365 1-Phase Extra Heavy Duty Non-Grounding Standard Flanged Inlet With Mounting Screw, 125/250 VAC, 20 A, 3 Poles, 3 Wires, White
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Locking Devices
Category Level 3:
Locking Flanged Inlets & Outlets
Amperage Rating:
20
20 A
Application:
Dry Locations and Indoor Applications
Category Name:
Locking Flanged Inlets & Outlets
Color:
White
Country:
USA
Dimensions:
2.88 in Dia x 2.16 in L
Enclosure:
IP20
Grade:
Industrial
Length:
10.0
Material:
Brass/Clear Polycarbonate/Composite/Nylon/Thermoplastic
NEMA Rating:
NEMA L9-20P
Number of Poles:
3
Number of Wires:
3
Standard/Approvals:
UL 498 Listed, CSA 22.2 No. 42, 0.17, UL 94-HB Flammability Rating, Federal Specification W-C-596, NEMA WD1, WD5, RoHS, ARRA, Buy American Act Compliant
Temperature Rating:
-40 to 75
-40 to 75 deg C
Terminal Type:
Back Wired Screw
Back Wired/Screw
Type:
1-Phase Extra Heavy Duty Non-Grounding Standard
Unspsc:
39121406
Voltage Rating:
125/250
125/250 VAC
Volume:
0.0
Weight:
2.0
Additional Information
Manufactured By:
Hubbell
