Hubbell HBL2510SR2

Hubbell HBL2510SR2 by Hubbell

Call for Price
  • Part Number: HBL2510SR2
  • UPC: 00783585235004
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

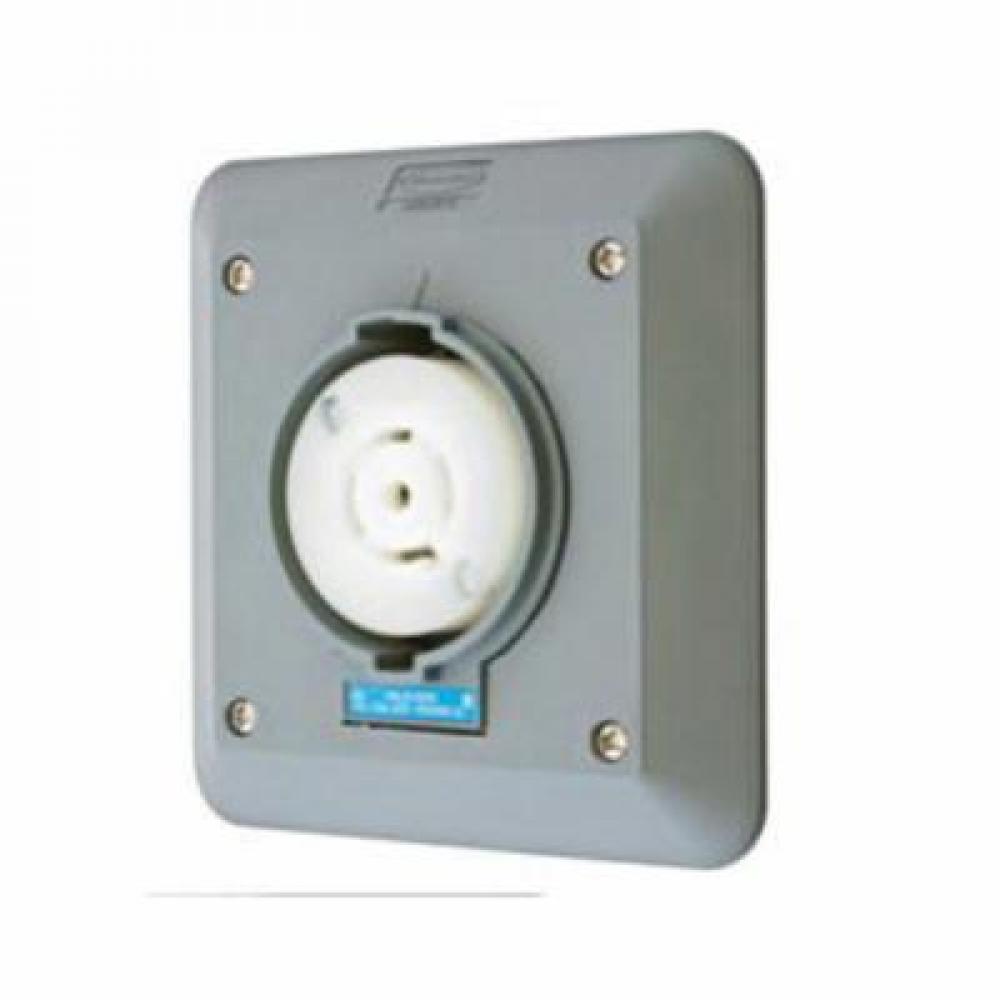

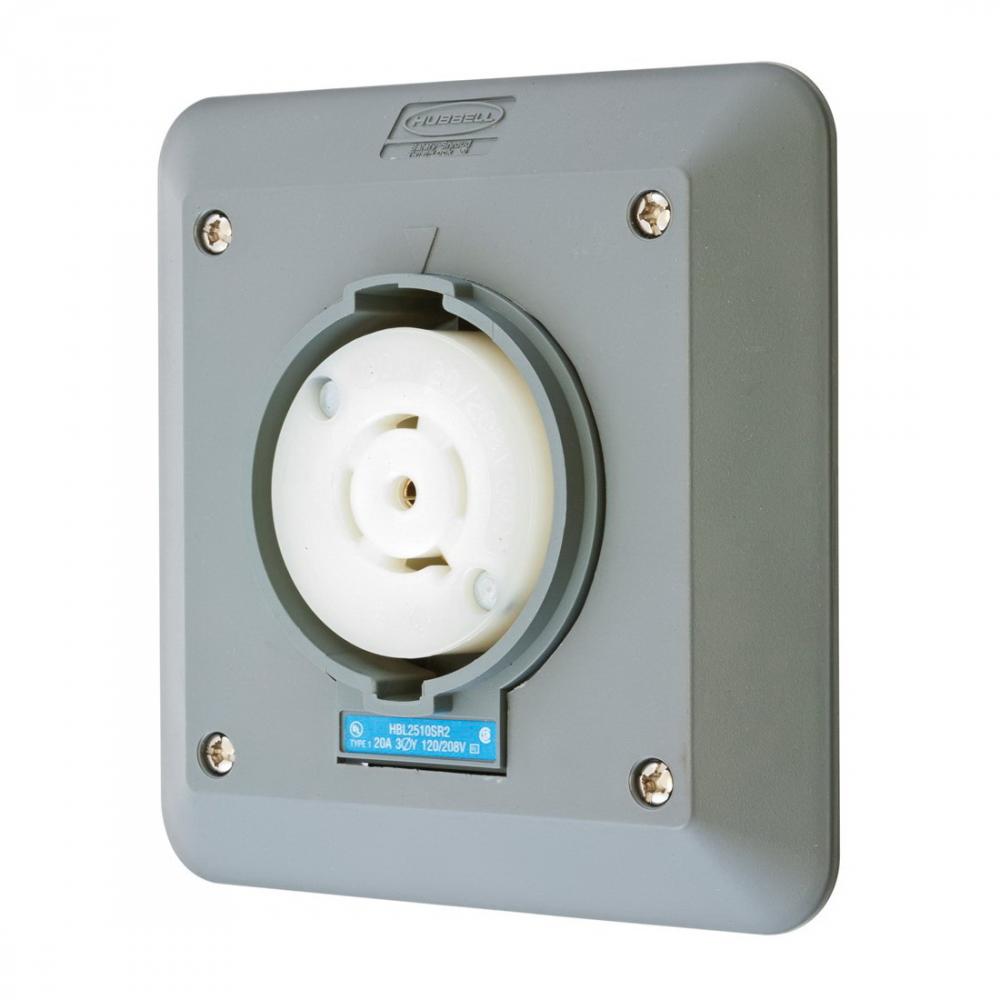

Hubbell® Twist-Lock® Safety-Shroud® HBL2510SR2 2-Gang Shrouded Single Locking Receptacle, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Gray
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Locking Devices
Category Level 3:
Locking Receptacles
Amperage Rating:
20
20 A
Category Name:
Locking Receptacles
Color:
Gray
Gray/White
Country:
USA
Dimensions:
5.12 in H x 5.12 in W
5.12 in L x 1.45 in W x 5.12 in H
Enclosure:
IP20
Grade:
Industrial
Horsepower:
2
2 hp
Length:
0.0
Material:
Composite/Thermoplastic
PBT
NEMA Rating:
NEMA L21-20R
Number of Poles:
4
Number of Wires:
5
Standard/Approvals:
CSA C22.2 No. 42, Federal Specification W-C-596, UL 498
Temperature Rating:
-40 to 75
-40 to 75 deg C
Terminal Type:
Back Wired Screw
Back Wired/Screw
Screw
Type:
2-Gang Heavy Duty Grounding Standard Single Semi-Flush
2-Gang Shrouded Single
Unspsc:
39121406
Voltage Rating:
120/208
120/208 VAC
Volume:
0.0
Weight:
0.65
Additional Information
Manufactured By:
Hubbell
