Hubbell HBL2610SR

Hubbell HBL2610SR by Hubbell

Call for Price
  • Part Number: HBL2610SR
  • UPC: 00783585234267
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

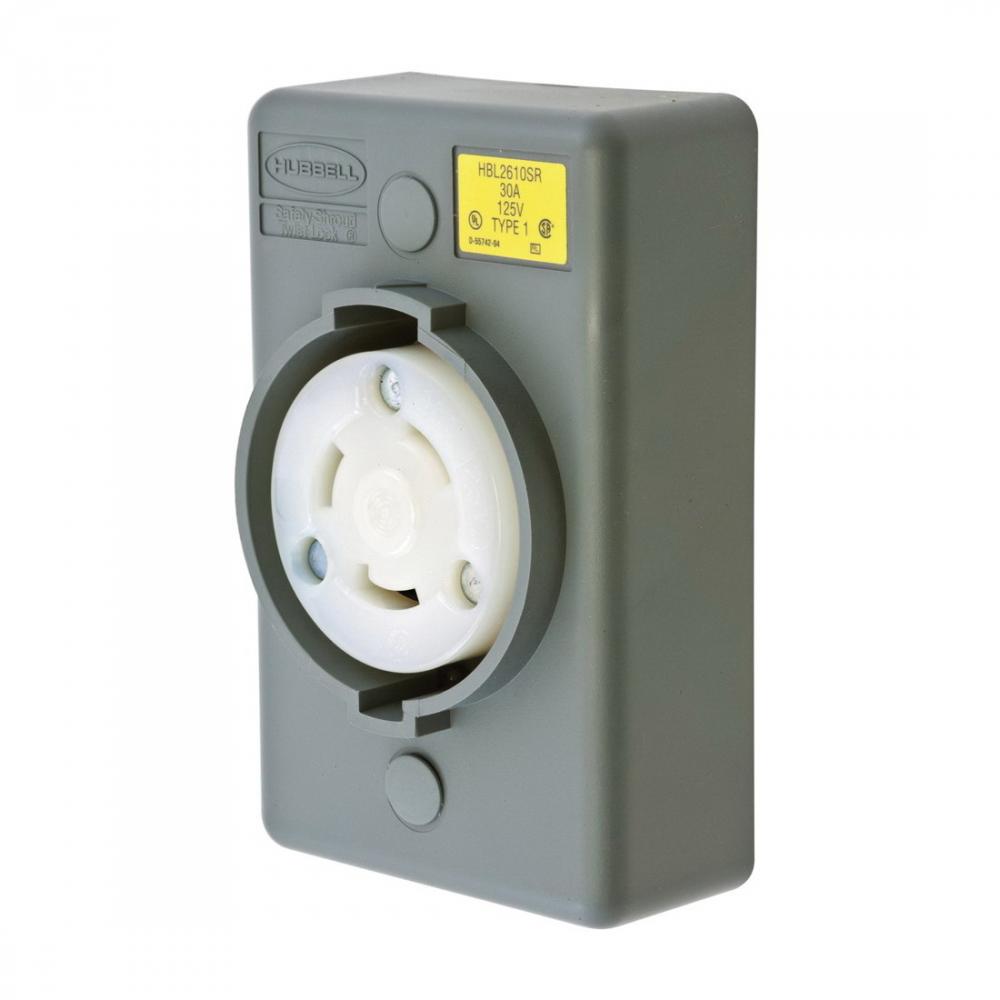

Hubbell® Twist-Lock® Safety-Shroud® HBL2610SR Shrouded Single Straight Locking Receptacle, 125 VAC, 30 A, 2 Poles, 3 Wires, Gray
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Locking Devices
Category Level 3:
Locking Receptacles
Amperage Rating:
30
30 A
Category Name:
Locking Receptacles
Color:
Gray
Gray/White
Country:
USA
Dimensions:
2.84 in W x 1.58 in D x 4.56 in H
4.56 in L x 2.84 in W x 1.58 in H
Enclosure:
IP20
Grade:
Industrial
Horsepower:
2
2 hp
Length:
0.0
Material:
Composite/Thermoplastic
PBT
NEMA Rating:
NEMA L5-30R
Number of Poles:
2
Number of Wires:
3
Standard/Approvals:
CSA C22.2 No. 42|Federal Specification W-C-596|UL 498
Temperature Rating:
-40 to 75
-40 to 75 deg C
Terminal Type:
Back Wired Screw
Back Wired/Screw
Screw
Type:
1-Gang Heavy Duty Grounding Standard Single
Shrouded Single Straight
Unspsc:
39121406
Voltage Rating:
125
125 VAC
Volume:
0.0
Weight:
0.4
Additional Information
Manufactured By:
Hubbell
