Hubbell HBL2611BK

Hubbell HBL2611BK by Hubbell

Call for Price
  • Part Number: HBL2611BK
  • UPC: 00783585172200
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

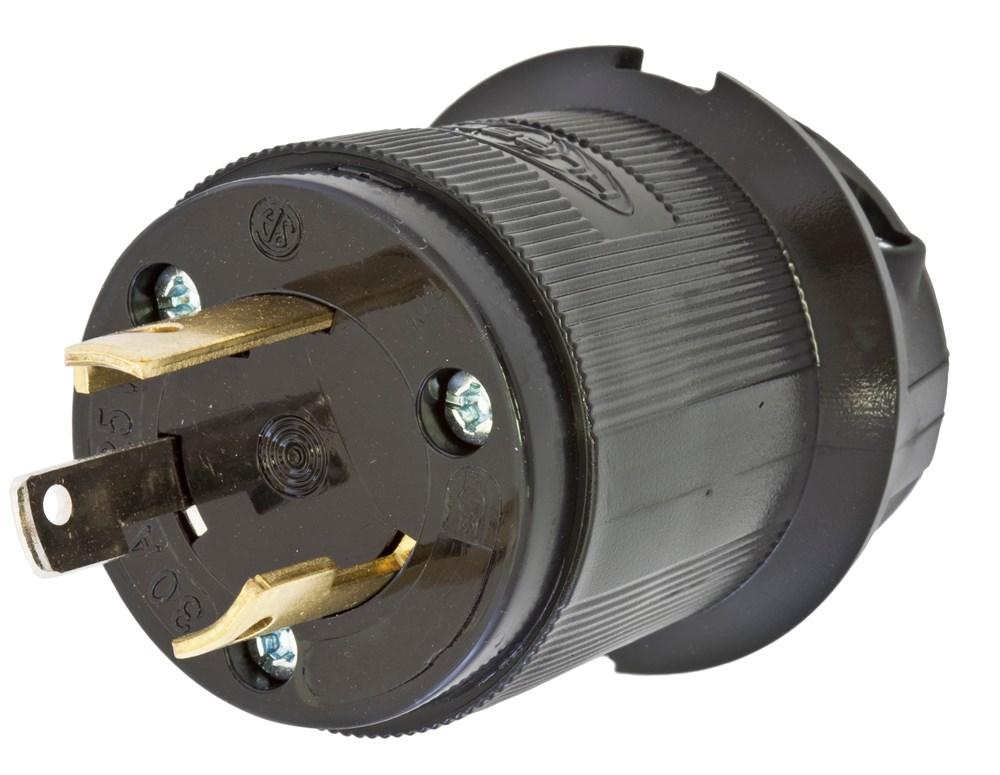

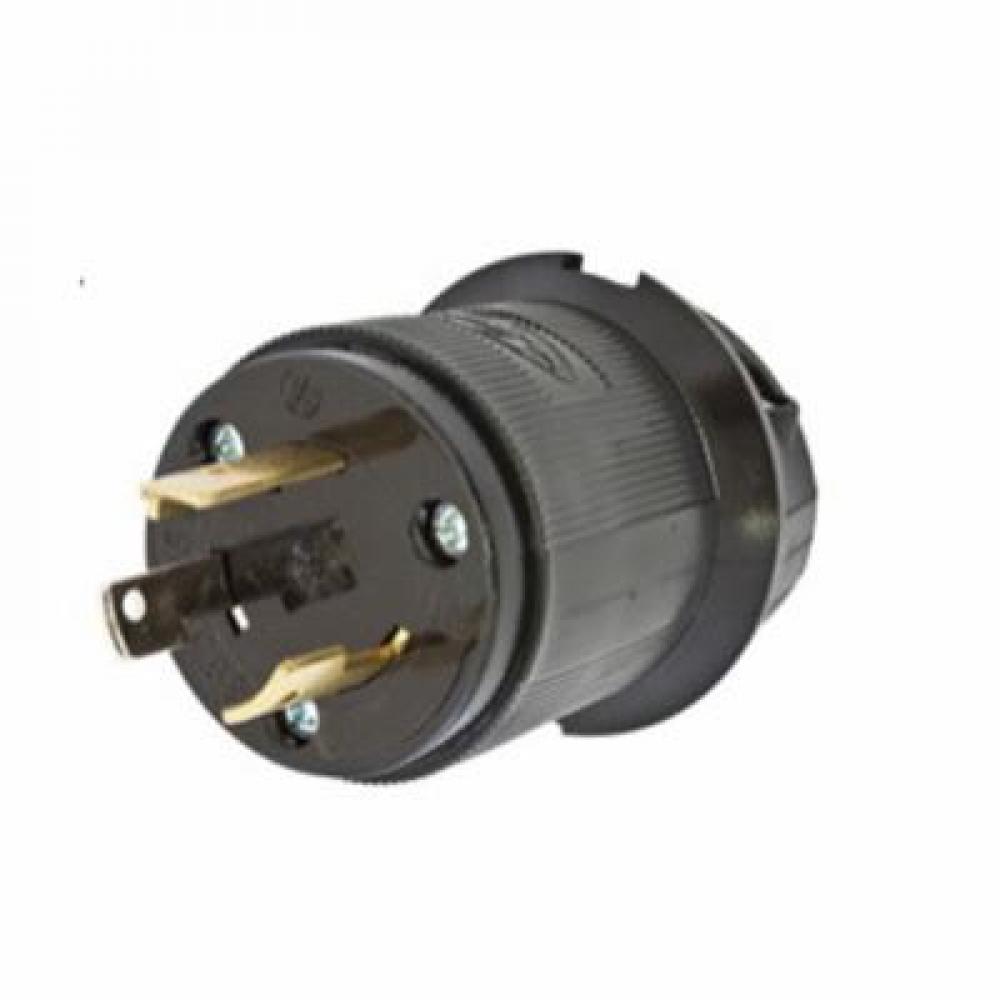

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2611BK 1-Phase Grounding Male Standard Locking Plug, 125 VAC, 30 A, 2 Poles, 3 Wires, Black
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Locking Devices
Category Level 3:
Locking Plugs
Amperage Rating:
30
30 A
Application:
Dry Locations, Power Connection and Indoor Applications
Category Name:
Locking Plugs
Color:
Black
Cord Diameter:
0.36 to 0.93
0.36 to 0.93 in
Country:
USA
Dimensions:
2.26 in Dia x 2.75 in L
Enclosure:
IP20
Grade:
Industrial
Horsepower:
2
2 hp
Length:
4.0
Material:
Brass/Clear Polycarbonate/Composite/Nylon
NEMA Rating:
NEMA L5-30P
Number of Poles:
2
Number of Wires:
3
Standard/Approvals:
UL 498|CSA C22.2 No. 42|0.17|UL 94-HB Flammability Rating|Federal Specification W-C-596|RoHS Compliant|ARRA Compliant|Buy American Act Compliant
Temperature Rating:
-40 to 75
-40 to 75 deg C
Terminal Type:
Screw
Type:
1-Phase Grounding Male Standard
Unspsc:
39121402
Voltage Rating:
125
125 VAC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Hubbell
