Hubbell HBL2636

Hubbell HBL2636 by Hubbell

Call for Price
  • Part Number: HBL2636
  • UPC: 00783585038995
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

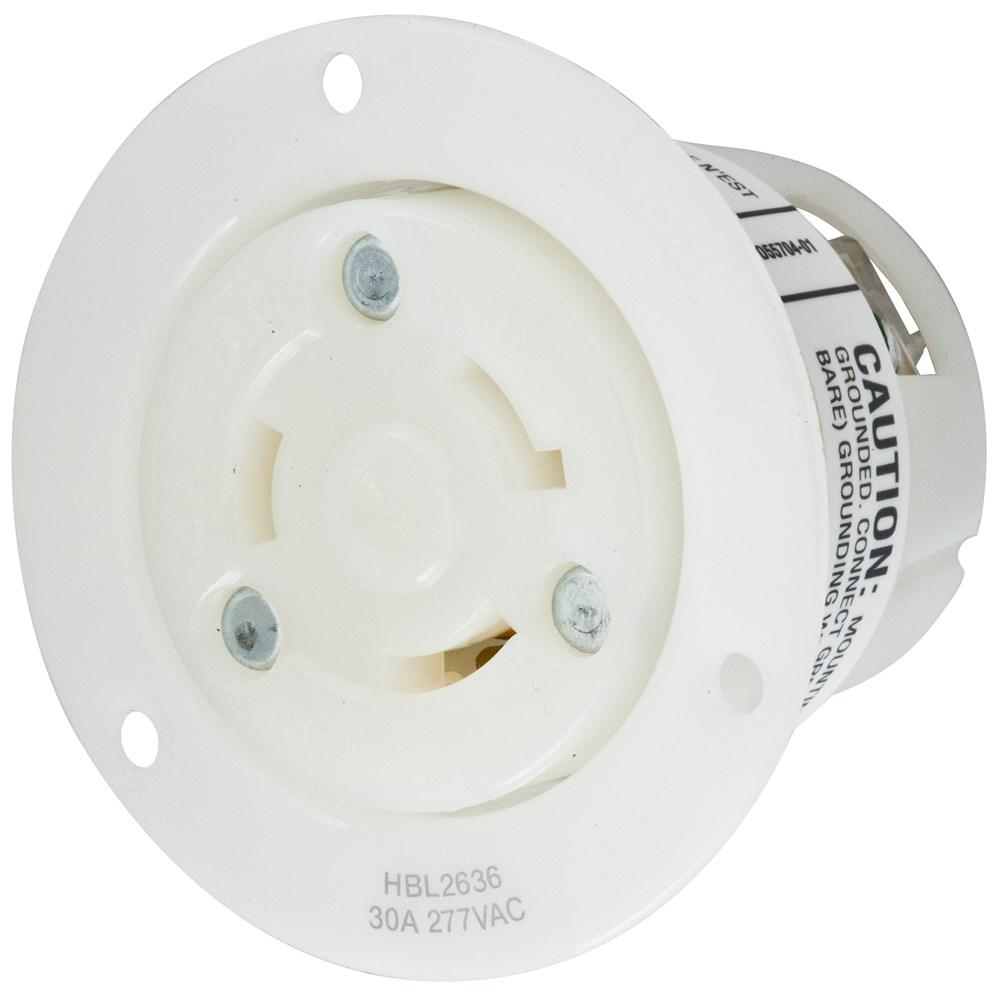

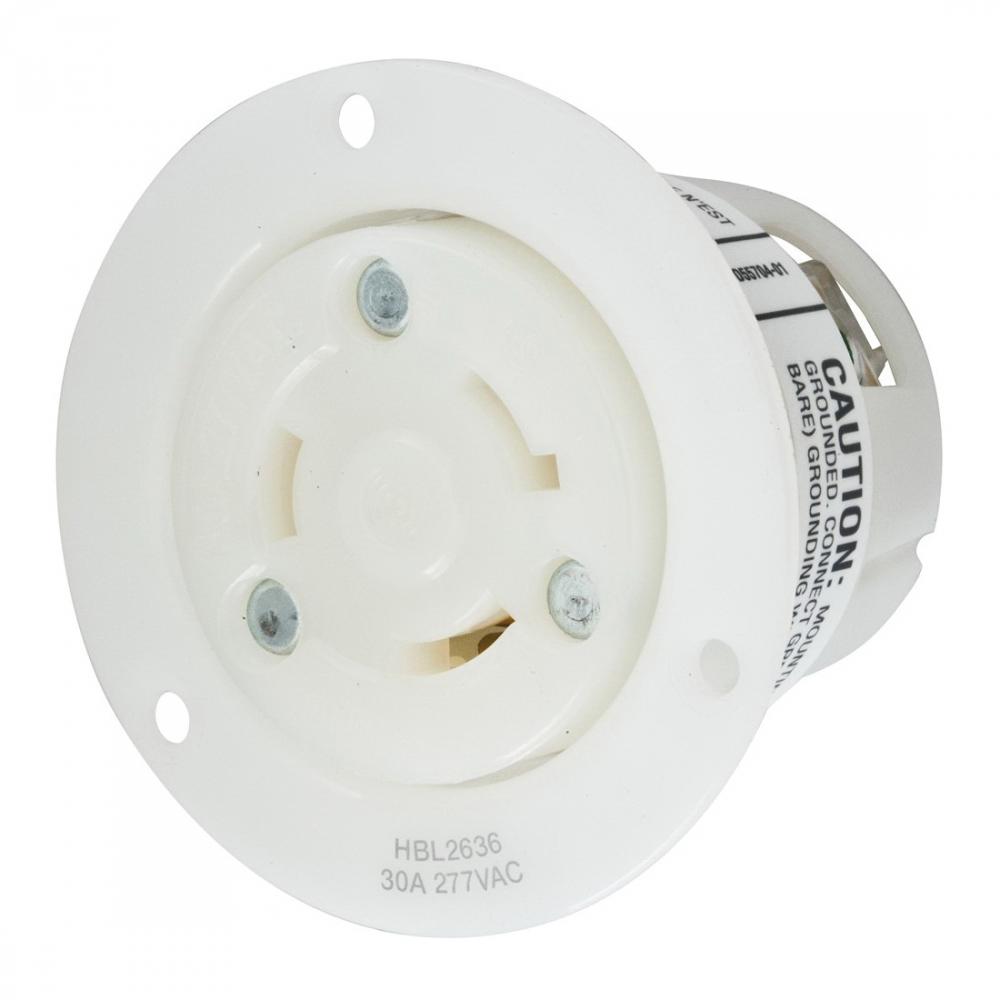

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2636 Flanged Grounding Single Standard Locking Receptacle, 277 VAC, 30 A, 2 Poles, 3 Wires, White
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Locking Devices
Category Level 3:
Locking Receptacles
Amperage Rating:
30
30 A
Application:
Dry Locations and Indoor Applications
Category Name:
Locking Receptacles
Color:
White
Country:
USA
Dimensions:
2.22 in L x 2.88 in W x 2.88 in H
Enclosure:
IP20
Grade:
Industrial
Horsepower:
3
3 hp
Length:
3.0
Material:
Composite/Thermoplastic
NEMA Rating:
NEMA L7-30R
Number of Poles:
2
Number of Wires:
3
Standard/Approvals:
UL 498, CSA C22.2 No. 42, 0.17, UL 94-V-2 Flammability Rating, Federal Specification W-C-596, NEMA WD1, WD5, RoHS, ARRA, Buy American Act Compliant
Temperature Rating:
-40 to 75
-40 to 75 deg C
Terminal Type:
Back Wired Screw
Back Wired/Screw
Type:
Flanged Grounding Single Standard
Unspsc:
39121406
Voltage Rating:
277
277 VAC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Hubbell
