Hubbell HBL2751

Hubbell HBL2751 by Hubbell

Call for Price
  • Part Number: HBL2751
  • UPC: 00783585039435
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

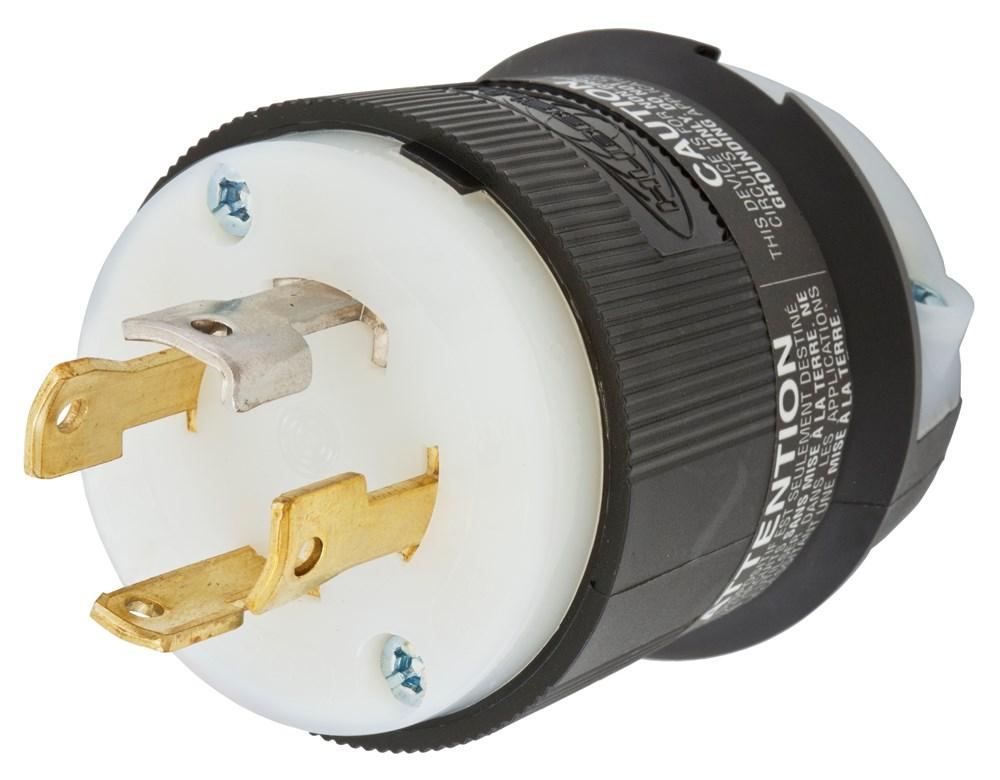

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2751 3-Phase Non-Grounding Locking Plug, 120/208 VAC, 30 A, 3 Poles, 4 Wires, Black/White
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Locking Devices
Category Level 3:
Locking Plugs
Amperage Rating:
30
30 A
Application:
Dry Locations, Power Connection and Indoor Applications
Category Name:
Locking Plugs
Color:
Black/White
Cord Diameter:
0.35 to 1.15
0.35 to 1.15 in
Country:
USA
Dimensions:
2.26 in Dia x 2.75 in L
Enclosure:
IP20
Grade:
Industrial
Horsepower:
2
2 hp
Length:
13.0
Material:
Brass/Clear Polycarbonate/Composite/Nylon/Polybutylene Terephthalate
NEMA Rating:
NEMA L18-30P
Number of Poles:
3
Number of Wires:
4
Standard/Approvals:
UL 498|CSA C22.2 No. 42, 0.17|UL 94-HB Flammability Rating|Federal Specification W-C-596|RoHS|ARRA|Buy American Act Compliant
Temperature Rating:
-40 to 75
-40 to 75 deg C
Terminal Type:
Screw
Type:
3-Phase Non-Grounding
Unspsc:
39121402
Voltage Rating:
120/208
120/208 VAC
Volume:
0.0
Weight:
9.0
Additional Information
Manufactured By:
Hubbell
