Hubbell HBL29W09

Hubbell HBL29W09 by Hubbell

Call for Price
  • Part Number: HBL29W09
  • UPC: 00783585456454
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

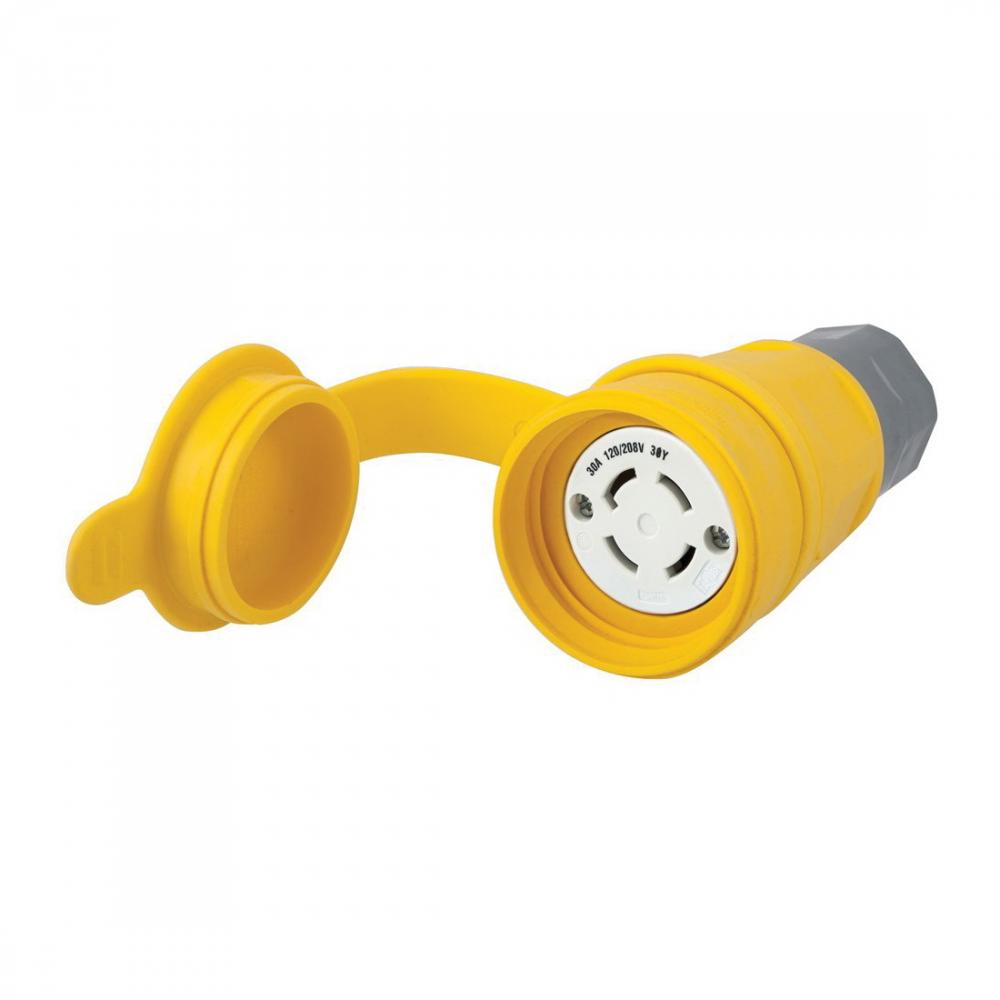

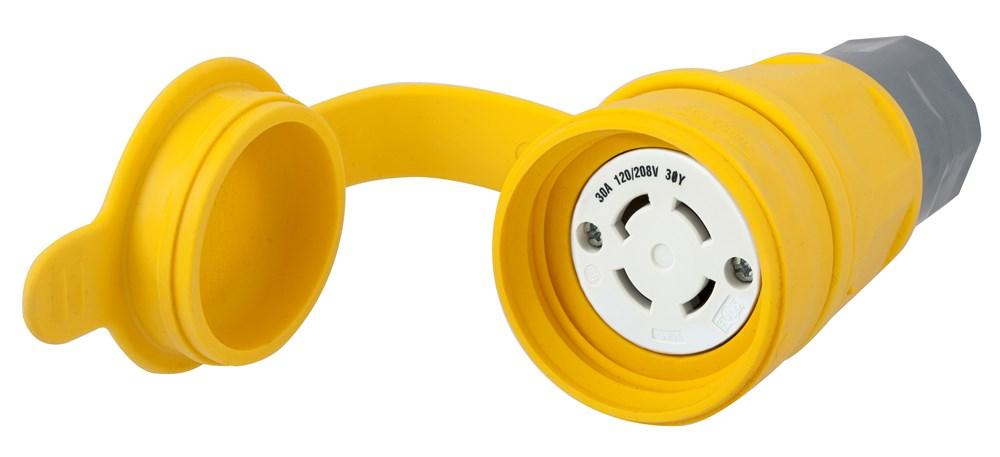

Wiring Device-Kellems Twist-Lock® Elastogrip® HBL29W09 3-Phase Isolated Non-Grounding Water/Dust-Tight Female Connector
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Locking Devices
Category Level 3:
Locking Connectors
Amperage Rating:
30
30 A
Category Name:
Locking Connectors
Color:
Yellow
Cord Diameter:
3/8 to 1
3/8 to 1 in
Country:
USA
Dimensions:
5.67 in L x 2.77 in W
Enclosure:
IP65/IP66/IP67/NEMA 4/4X/12/6/6P
Grade:
Commercial/Industrial
Length:
17.0
Material:
Thermoplastic Elastomer
Number of Poles:
4
Number of Wires:
4
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of Californ
Temperature Rating:
-40 to 75
-40 to 75 deg C
Terminal Type:
Screw
Type:
3-Phase Isolated Non-Grounding Standard Sized Water/Dust-Tight
Unspsc:
39121421
Voltage Rating:
120Y/208 VAC
Volume:
0.0
Weight:
11.0
Additional Information
Manufactured By:
Hubbell
