Hubbell HBL67W09

Hubbell HBL67W09 by Hubbell

Call for Price
  • Part Number: HBL67W09
  • UPC: 00783585456645
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

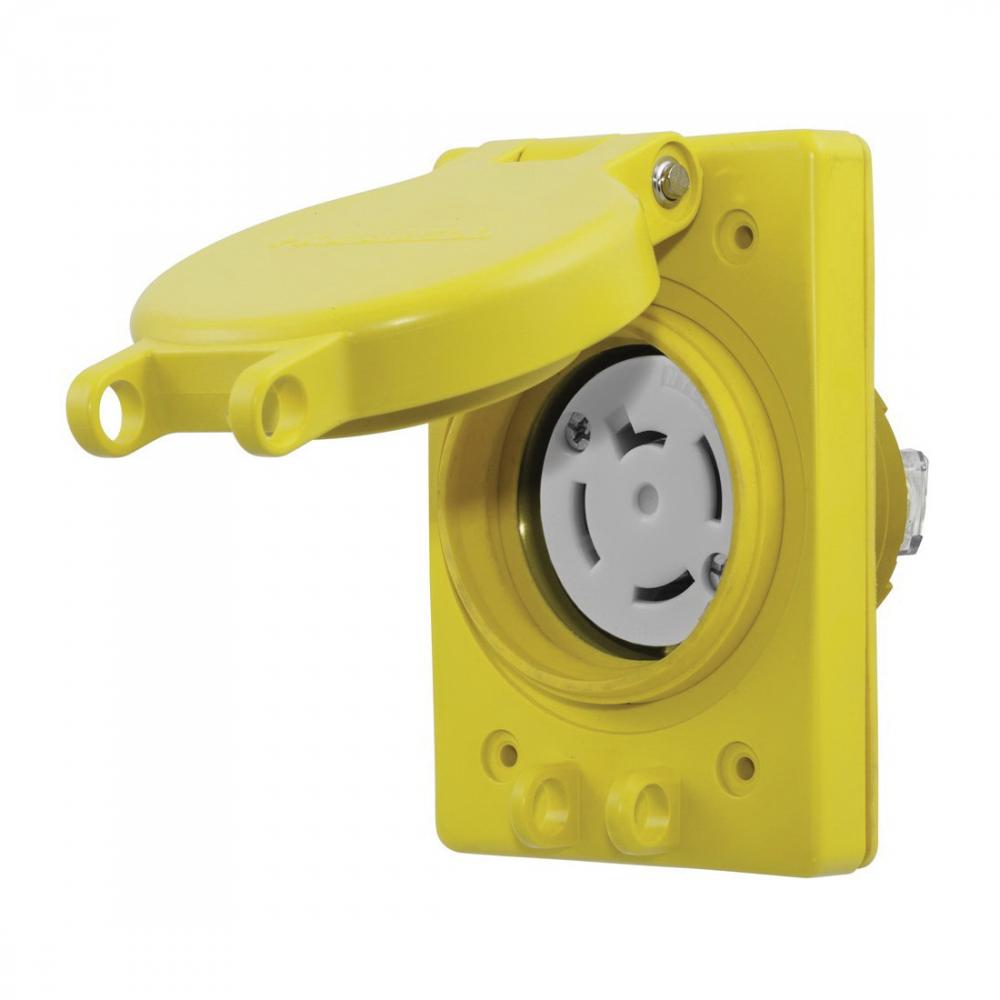

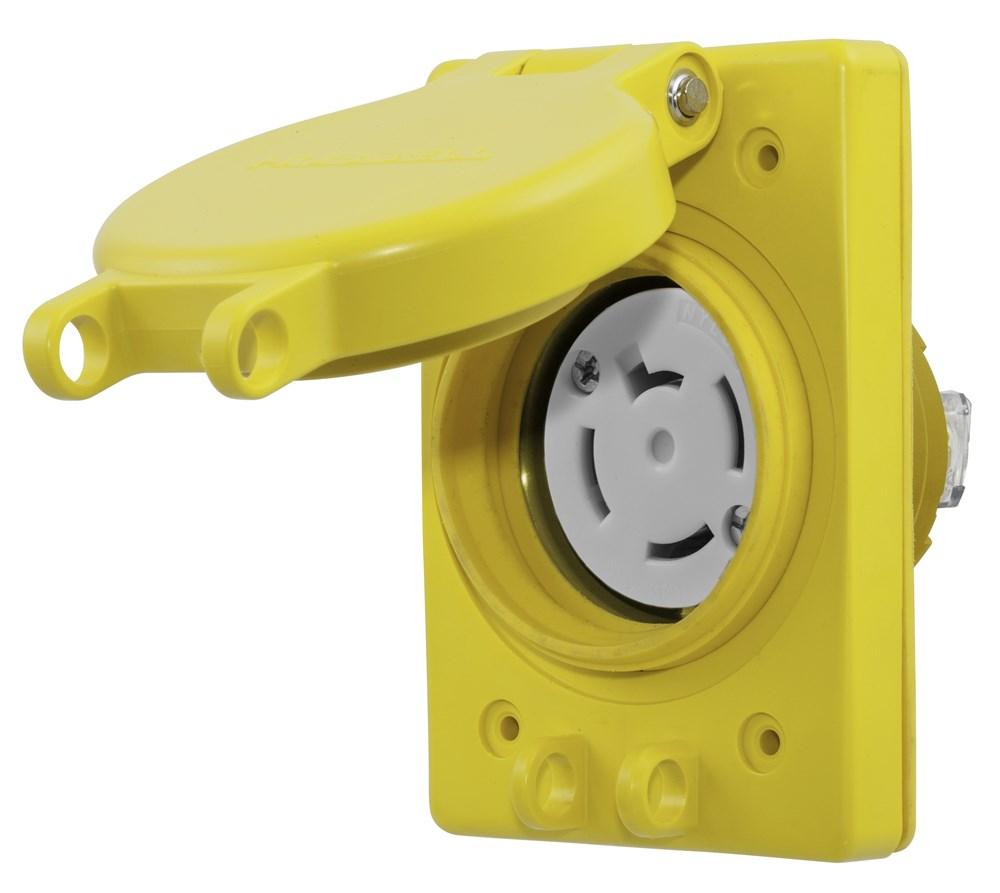

Wiring Device-Kellems Twist-Lock® HBL67W09 3-Phase Grounding Single Watertight Locking Receptacle With Lift Cover, 120/208 VAC, 20 A, 4 Poles, 4 Wires, Yellow
Specifications
Details
Category Level 1:
Wiring Devices
Category Level 2:
Locking Devices
Category Level 3:
Locking Receptacles
Amperage Rating:
20
20 A
Application:
For wet and wash applications
Category Name:
Locking Receptacles
Color:
Yellow
Country:
USA
Dimensions:
4.56 in H x 3.1 in W x 1.2 in D
Enclosure:
NEMA 4/4X/12/6/6P/IP65/66/67
NEMA 4/4X/12/6/6P/IP65/IP66/IP67
Grade:
Industrial
Length:
12.0
Material:
Composite/Elastomer
Number of Poles:
4
Number of Wires:
4
Standard/Approvals:
ANSI Specified|UL 498|CSA C22.2 No. 42|NEMA WD1|WD6|RoHS Compliant|ARRA Compliant|Buy American Act Compliant
Temperature Rating:
-40 to 60
-40 to 60 deg C
Terminal Type:
Screw
Type:
3-Phase Grounding Single Watertight
Unspsc:
39121406
Voltage Rating:
120/208
Volume:
0.0
Weight:
2.0
Additional Information
Manufactured By:
Hubbell
