Hubbell HBLB7NFD13AA

Hubbell HBLB7NFD13AA by Hubbell

Call for Price
  • Part Number: HBLB7NFD13AA
  • UPC: 00783585242620
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

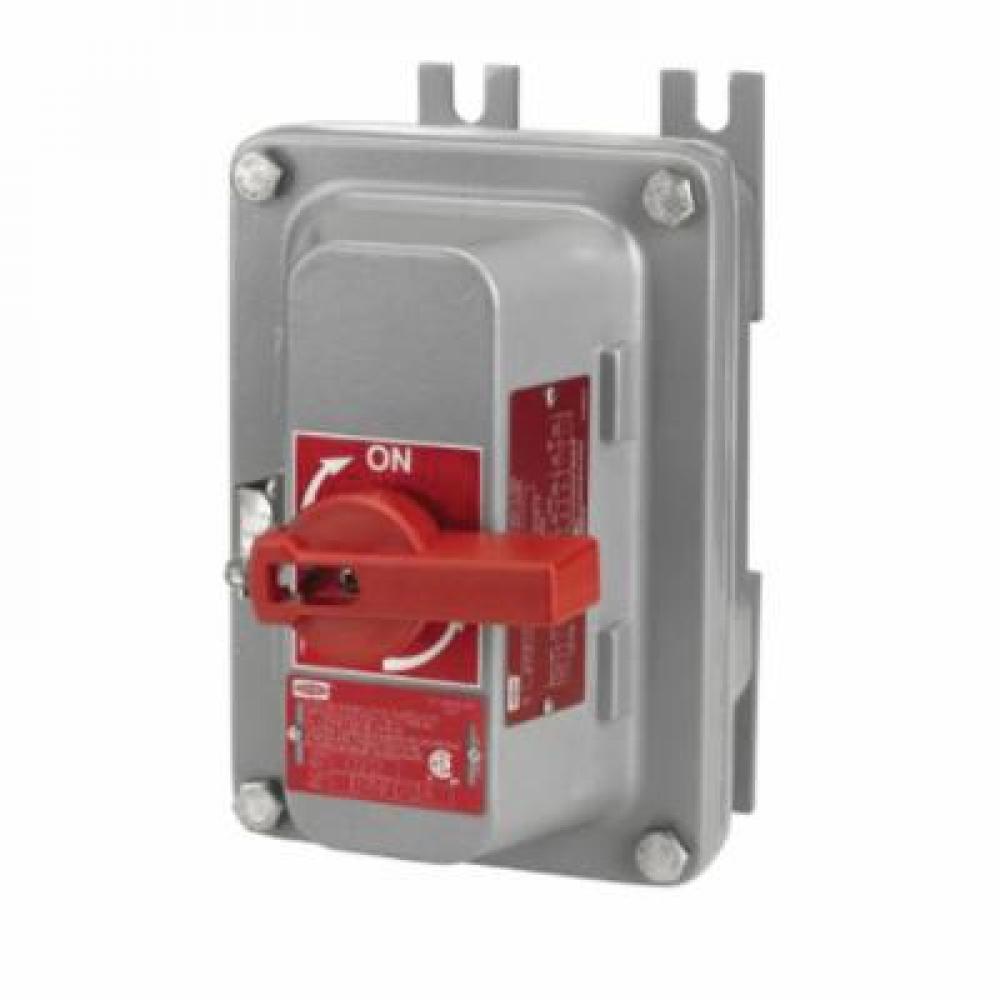

Hubbell® HBLB7NFD13AA Non-Fusible Hazardous Location Disconnect Switch With Auxiliary Contact, 600 VAC, 30 A, 30 hp, NO-NC Contact Form, 3 Poles
Specifications
Details
Category Level 1:
Distribution Equipment & Accessories
Category Level 2:
Safety & Disconnect Switches
Category Level 3:
Hazardous Location Disconnect Switches
Actuator Type:
Lever
Lockable Handle
Amperage Rating:
30
30 A
Application:
Outdoor or Indoor Damp, Wet and Dirty Locations and Extra Heavy Duty Industrial Applications
Category Name:
Hazardous Location Disconnect Switches
Color:
Gray
Contact Form:
2-Auxiallary/1NO
NO-NC
Country:
USA
Dimensions:
8.13 in L x 5.75 in W x 6.31 in H
Enclosure Type:
NEMA 3/4/4X/7/9
NEMA 4X
Finish:
Epoxy/Polyester
Powder Polyester Painted
Frequency Rating:
60
60 Hz
Horsepower:
30
30 hp
Length:
0.0
Material:
Aluminum
Metal
Mounting Type:
Feet
Feet/Snap
Number of Poles:
3
Phase:
3
Standard/Approvals:
UL 98, Class I, Div. 1 & 2, Groups B, C, D, Class l, Zones 1 & 2, Groups llB+ H2, llA, Class II, Div. 1 & 2, Groups E, F, G, Class III|OSHA Approved
Temperature Rating:
-40 to 67
-40 to 67 deg C
Terminal Type:
Screw
Type:
Complete Non-Fused Standard
Non-Fusible
Voltage Rating:
600
600 V
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Hubbell
