Hubbell K3A26U2N

Hubbell K3A26U2N by Hubbell

Call for Price
  • Part Number: K3A26U2N
  • UPC: 00781810601051
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

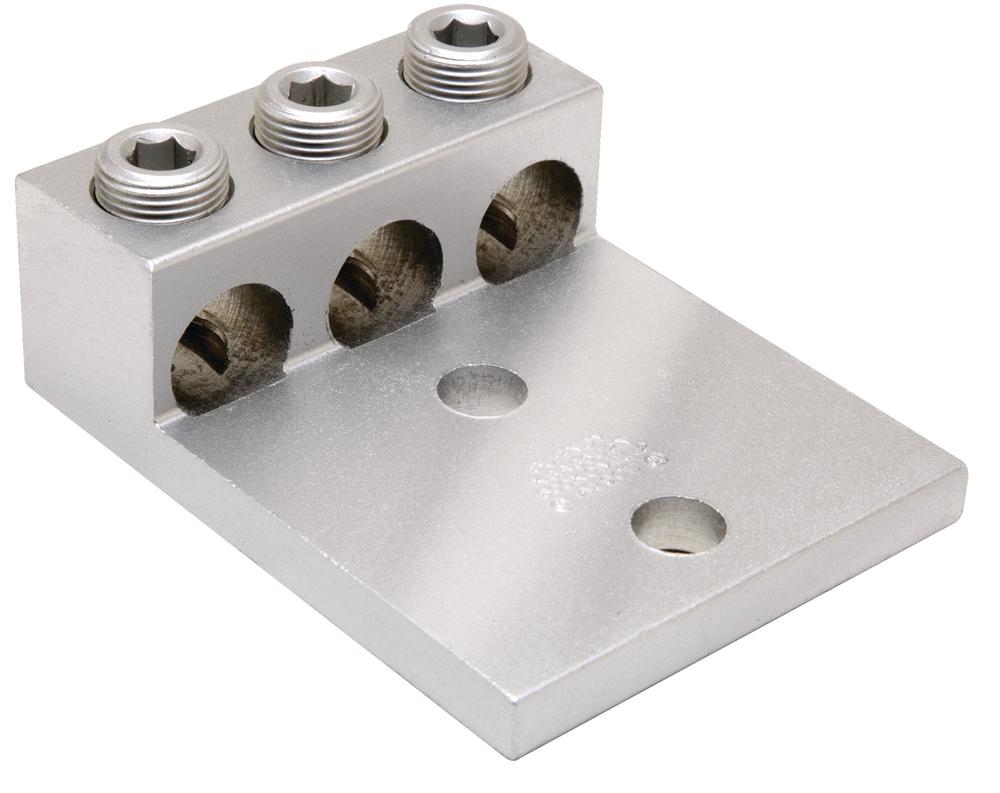

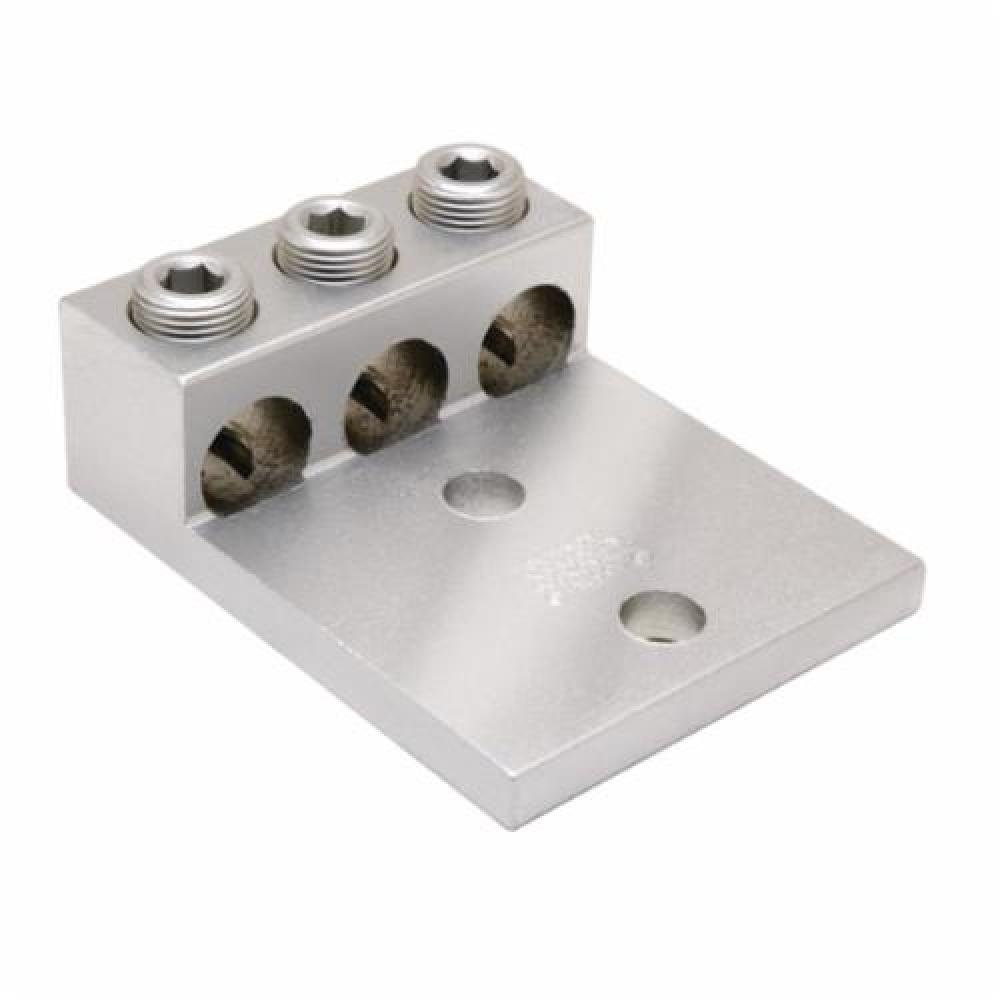

BURNDY® K3A26U2N K3A-U Dual Rated Universal Terminal Lug, 14 to 2/0 AWG Copper/Stranded Aluminum Conductor, 1/2 in Stud, 3 Bolt Holes, Aluminum Alloy
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Mechanical Connectors & Lugs
Category Level 3:
Mechanical Terminal Lugs
Application:
For aluminum and copper conductors
Category Name:
Mechanical Terminal Lugs
Conductor Size:
14 to 2/0
14 to 2/0 AWG
Conductor Type:
Copper/Stranded Aluminum
Country:
USA
Dimensions:
3.75 in L x 1.95 in W
Finish:
TiN Coated
Tin Plated
Length:
3.0
Material:
Aluminum Alloy
Number of Bolt Holes:
2
3
Series:
K3A-U
Specifications:
1.79 in H x 1.95 in W Collar, (3) Slotted Screw, 1-3/4 in Mounting Hole Spacing
1.79 in H x 1.95 in W Collar, Slotted Screw 1-3/4 in Mounting Hole Spacing
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|UL 468A/UL 468B|CSA Certified|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive h
Stud Size:
1/2
1/2 in
Temperature Rating:
194 deg F
Tongue Size:
1.97 in W x 0.19 in THK
Tongue Type:
Straight
Type:
Dual Rated
Unspsc:
39121408
Volume:
0.0
Weight:
1.0
Additional Information
Manufactured By:
Hubbell
