Hubbell KA25RK

Hubbell KA25RK by Hubbell

Call for Price
  • Part Number: KA25RK
  • UPC: 00781810359846
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

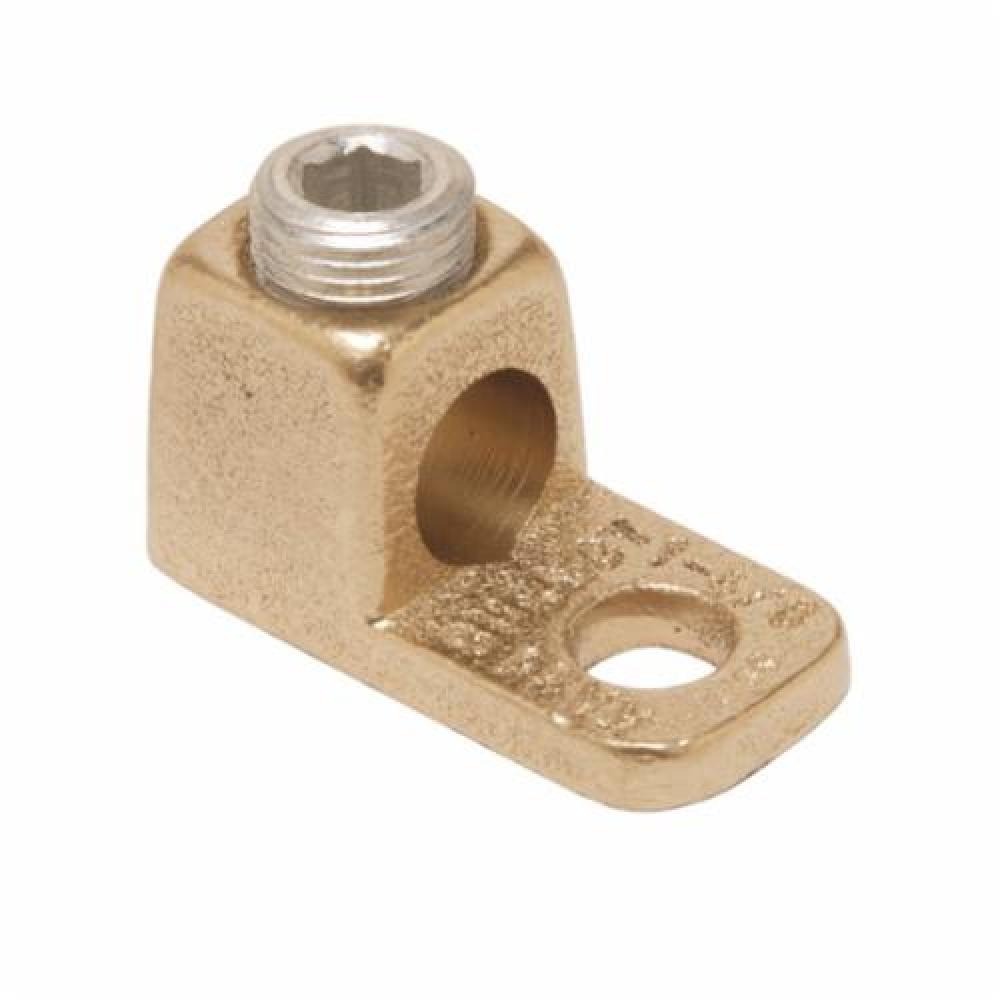

BURNDY® KA-LUG KA25RK Mechanical Terminal Lug, 4 to 1/0 AWG Stranded Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Copper Alloy
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Mechanical Connectors & Lugs
Category Level 3:
Mechanical Terminal Lugs
Application:
For joining a wide range of cable to equipment pads or terminal blocks
Category Name:
Mechanical Terminal Lugs
Conductor Size:
4 to 1/0
4 to 1/0 AWG
Conductor Type:
Stranded Copper
Country:
USA
Dimensions:
1.6875 in L x 0.94 in H
Finish:
Electro-Plated Zinc
Electro-Zinc Plated
Length:
2.0
Material:
Copper Alloy
Number of Bolt Holes:
1
Series:
KA Series
Specifications:
1 in L Collar Allen Screw 200 in-lb Installation Torque 1/2 in Bolt Size
1 in L Collar, Allen Screw, 200 in-lb Installation Torque, 1/2 in Bolt
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of Californ
Stud Size:
1/2
1/2 in
Temperature Rating:
194 deg F
Tongue Size:
0.75 in W x 0.13 in THK
Tongue Type:
Straight
Type:
Insulation
Unspsc:
39121408
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Hubbell
