Hubbell KA29U

Hubbell KA29U by Hubbell

Call for Price
  • Part Number: KA29U
  • UPC: 00781810370155
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

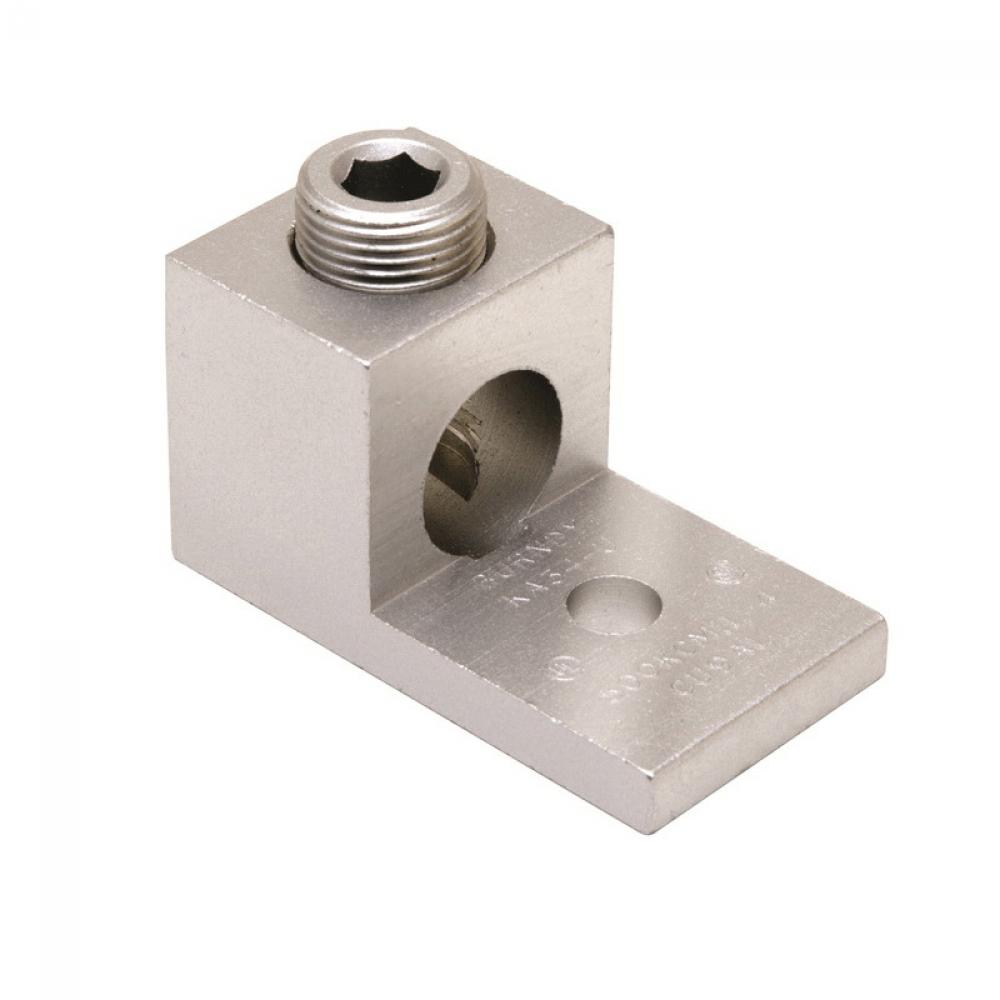

BURNDY® KA29U Type KA-U Dual Rated Universal Terminal, 6 AWG to 250 kcmil Aluminum/Stranded Copper Conductor, 5/16 in Stud, 1 Bolt Holes, Aluminum Alloy
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Mechanical Connectors & Lugs
Category Level 3:
Mechanical Terminal Lugs
Application:
For aluminum and copper conductors
Category Name:
Mechanical Terminal Lugs
Conductor Size:
6 AWG to 250 kcmil
Conductor Type:
Aluminum/Stranded Copper
Country:
USA
Dimensions:
2 in L x 1 in W
Finish:
Electro-Plated Tin
Electro-Tin Coated
Length:
2.0
Material:
Aluminum Alloy
Number of Bolt Holes:
1
Specifications:
1-Conductor
1-Conductor, (1) Screw
Standard/Approvals:
UL Listed|CSA Certified|AL9CU Rated|RoHS/ARRA Compliant|Buy American Act Compliant|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other rep
Stud Size:
5/16
5/16 in
Temperature Rating:
194 deg F
Tongue Size:
0.94 in L x 1.02 in W x 0.25 in THK
Type:
Type KA-U Dual Rated
Unspsc:
39121408
Volume:
0.0
Weight:
3.0
Additional Information
Manufactured By:
Hubbell
