Hubbell KA2U

Hubbell KA2U by Hubbell

Call for Price
  • Part Number: KA2U
  • UPC: 00781810370056
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

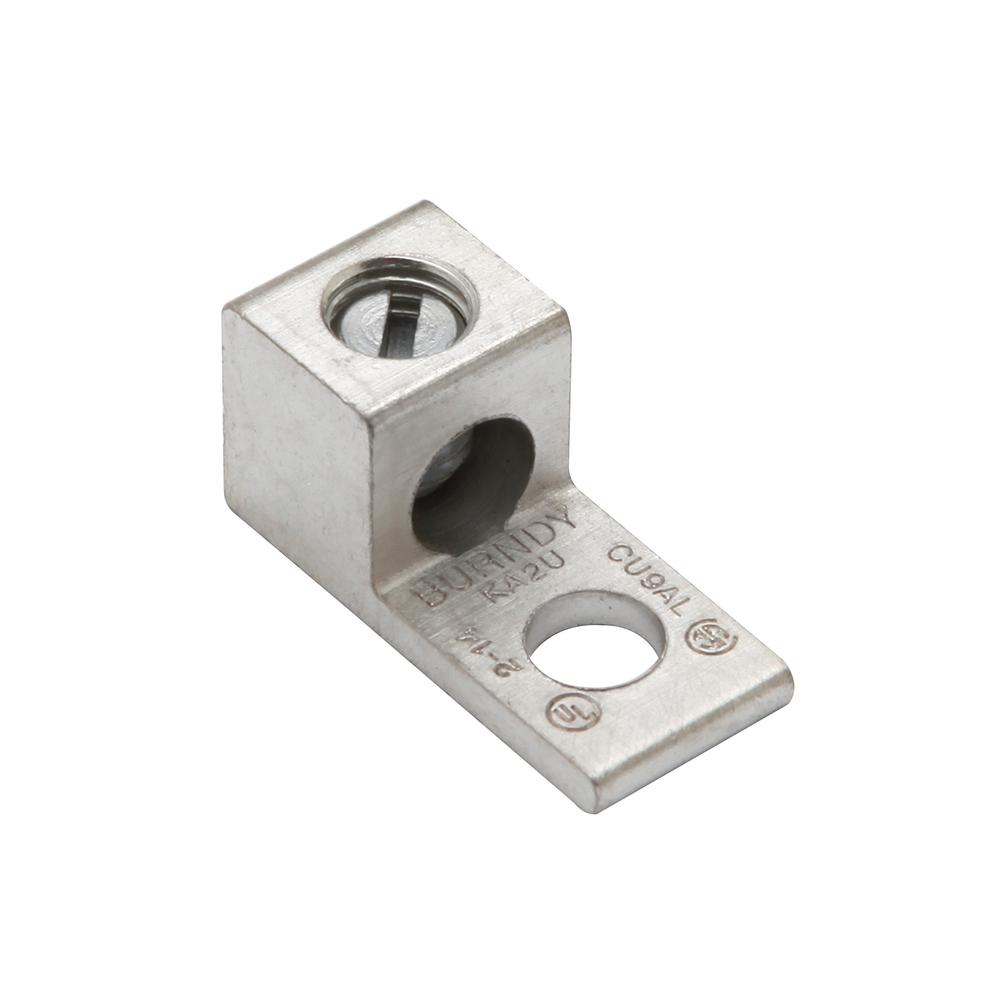

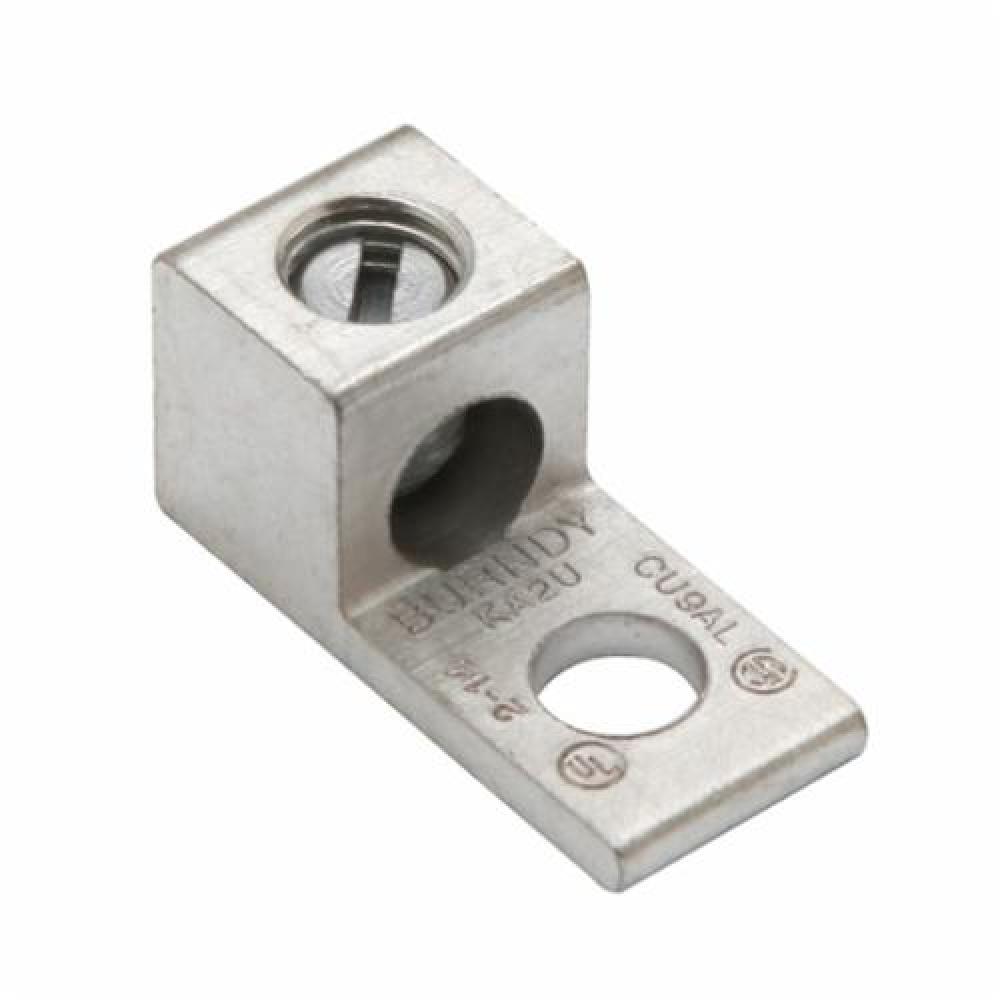

BURNDY® KA2U KA-U Dual Rated Universal Terminal Lug, 14 to 2 AWG Stranded Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Hole, Aluminum Alloy
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Mechanical Connectors & Lugs
Category Level 3:
Mechanical Terminal Lugs
Application:
For aluminum and copper conductors
Category Name:
Mechanical Terminal Lugs
Conductor Size:
14 to 2
14 to 2 AWG
Conductor Type:
Stranded Aluminum/Copper
Country:
USA
Dimensions:
1.16 in L x 0.55 in H
Finish:
Electro-Plated Zinc
Electro-Zinc Plated
Length:
3.0
Material:
Aluminum Alloy
Number of Bolt Holes:
1
Series:
KA-U
Specifications:
0.55 in H x 0.5 in W Collar, (1) Slotted Screw, 50 in-lb Installation Torque
0.55 in H x 0.5 in W Collar, Slotted Screw, 50 in-lb Installation Torque
Standard/Approvals:
ARRA Compliant|Buy American Act and RoHS Compliant|AL9CU Rated|CSA Certified|UL 468A-468B|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or ot
Stud Size:
1/4
1/4 in
Temperature Rating:
194 deg F
Tongue Size:
0.5 in W x 0.1 in THK
1/2 in W x 0.10 in THK
Tongue Type:
Straight
Type:
Dual Rated
Unspsc:
39121408
Volume:
0.0
Weight:
1.0
Additional Information
Manufactured By:
Hubbell
