Hubbell KPA34

Hubbell KPA34 by Hubbell

Call for Price
  • Part Number: KPA34
  • UPC: 00781810356951
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

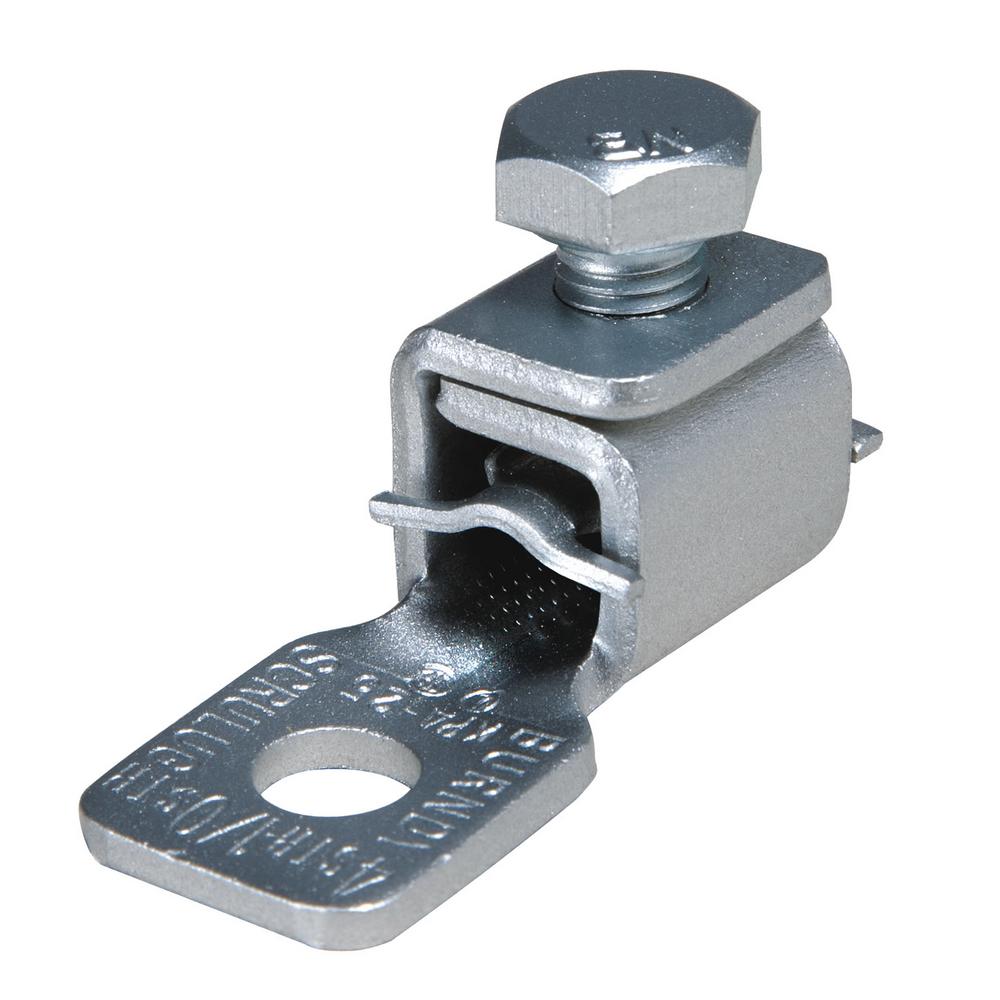

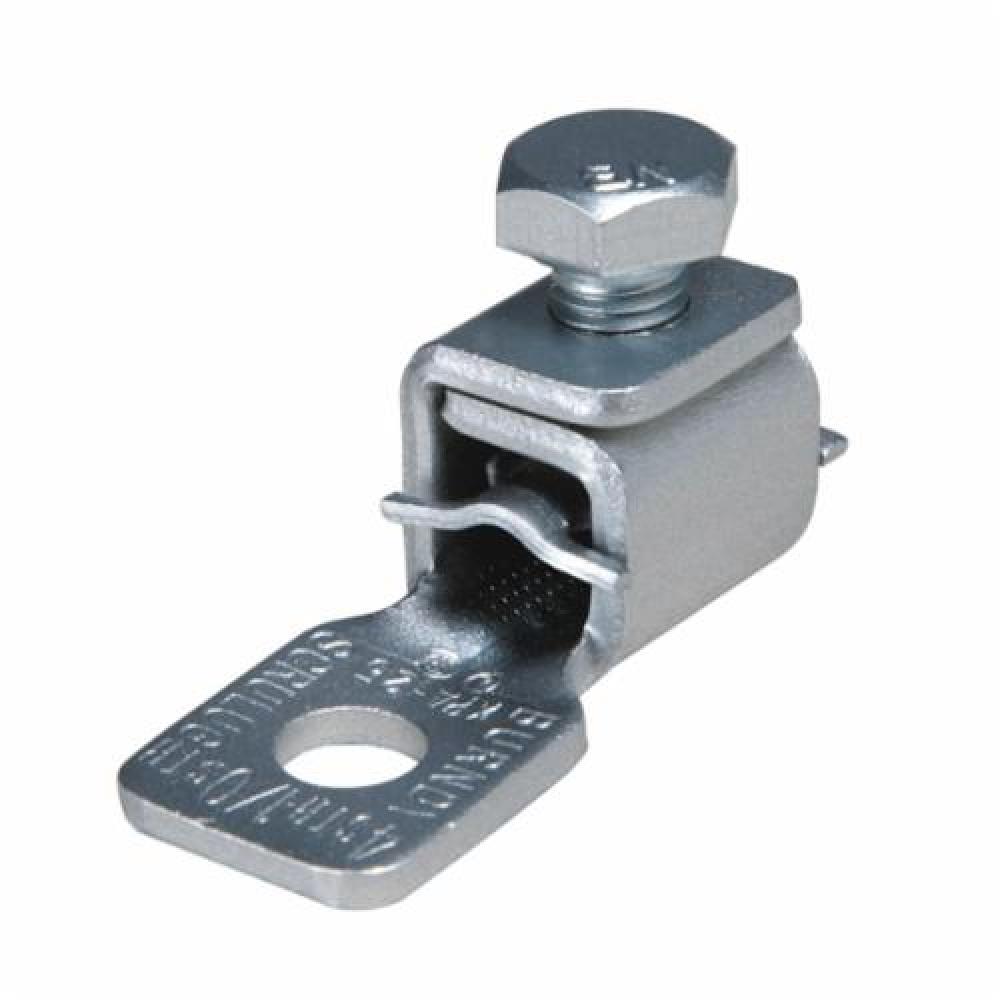

BURNDY® SCRULUG KPA34 Cable Terminal Lug, 2/0 AWG to 500 kcmil Copper Conductor, 5/8 in Stud, 1 Bolt Hole, Copper Alloy
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Mechanical Connectors & Lugs
Category Level 3:
Mechanical Terminal Lugs
Application:
For joining a wide range of cable to equipment pads or terminal blocks, especially good in light industrial applications
Category Name:
Mechanical Terminal Lugs
Conductor Size:
2/0 AWG to 500 kcmil
4/0 AWG to 500 kcmil
Conductor Type:
Copper
Country:
USA
Dimensions:
3.14 in L x 2.44 in H
Finish:
Electro-Plated Zinc
Electro-Zinc Plated
Length:
7.0
Material:
Copper Alloy
Number of Bolt Holes:
1
Series:
KPA
Specifications:
Hex Socket, 375 in-lb Installation Torque
Hex Socket, 375 in-lb Installation Torque, (1) Screw
Standard/Approvals:
ARRA Compliant|Buy American Act and RoHS Compliant|UL Listed|CSA Certified|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductiv
Stud Size:
1/2 in
5/8
Tongue Size:
1.5 in W x 0.2 in THK
Tongue Type:
Straight
Unspsc:
39121408
Volume:
0.0
Weight:
12.0
