Hubbell YA25L2

Hubbell YA25L2 by Hubbell

Call for Price
  • Part Number: YA25L2
  • UPC: 00781810553268
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

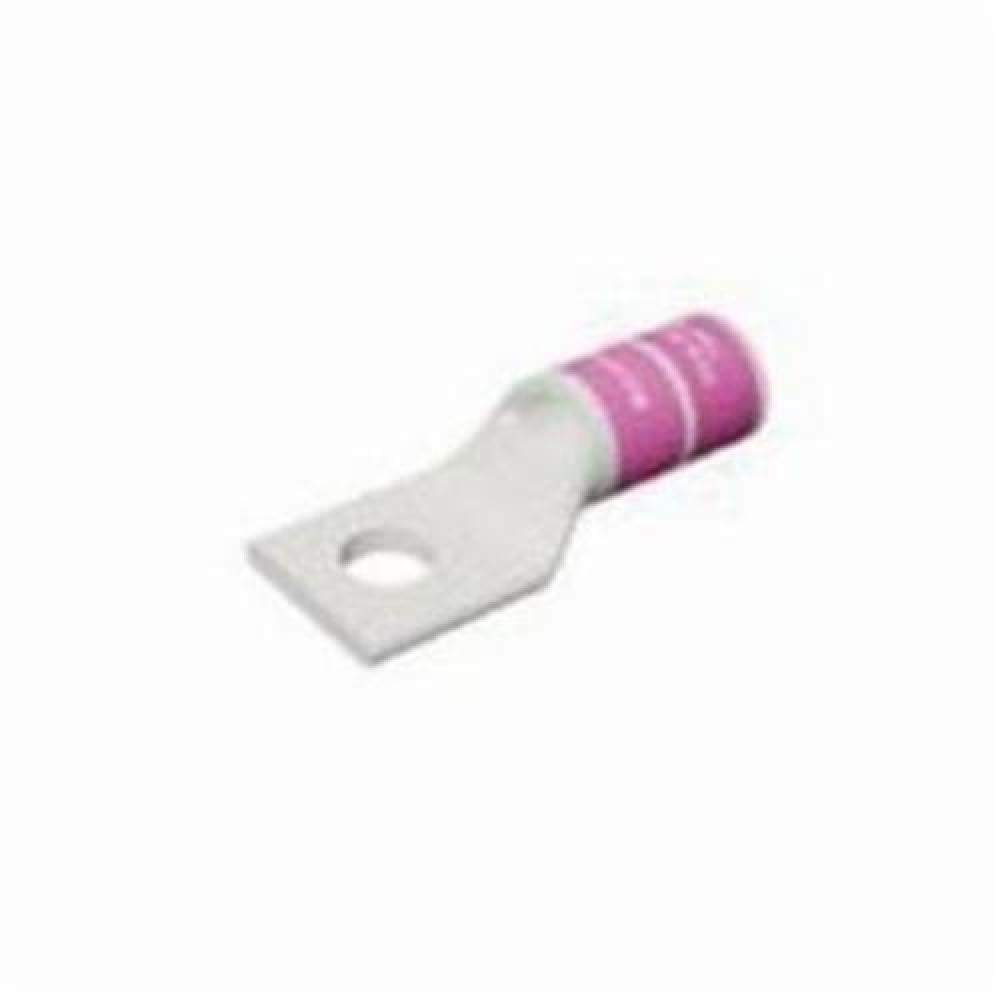

BURNDY® HYLUG YA25L2 YA-L 1-Hole Compression Lug With Inspection Window, 1/0 AWG Stranded Copper Conductor, Die Code: 12/348, 1/4 in Stud, Copper
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Compression Connectors & Lugs
Category Level 3:
Lug Compression Connectors
Application:
For code conductor
Barrel Size:

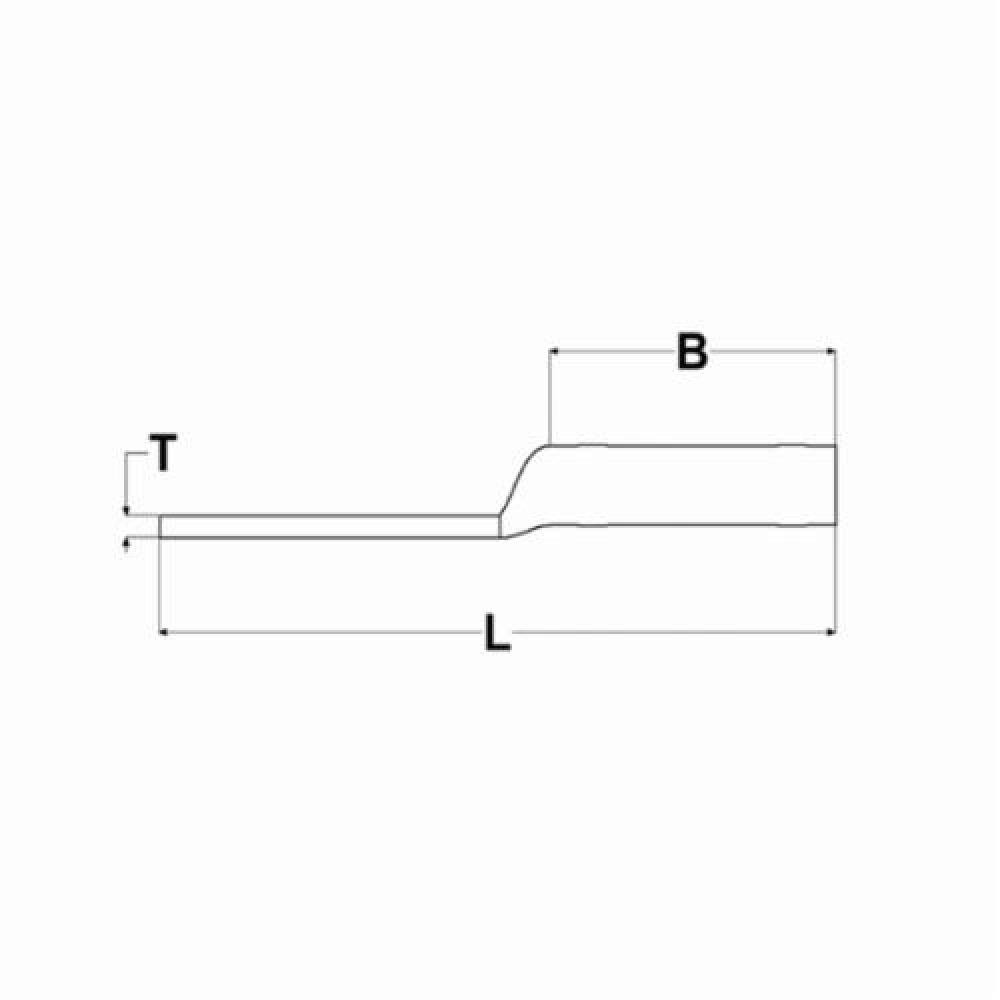

0.51 in OD x 0.88 in L
Barrel Type:
Chamfered/Skived/Standard
Category Name:
Lug Compression Connectors
Color:
Pink
Conductor Size:
1/0
1/0 AWG
Conductor Type:
Stranded Copper
Country:
USA
Die Code:
12/348
Length:
6.0
Material:
Copper
Electro-Tin Plated Copper
Overall Length:
1.84
1.84 in
Series:
YA-L
Specifications:
15/16 in L Wire Strip
15/16 in L Wire Stripe
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of Californ
Stud Size:
1/4
1/4 in
Temperature Rating:
90
90 deg C
Tongue Size:
0.75 in W x 0.12 in THK
Tongue Type:
Standard Straight
Standard/Straight
Type:
1-Hole
Unspsc:
39121405
Voltage Rating:
600 VAC to 35 kV
Volume:
0.0
Weight:
5.0
Additional Information
Manufactured By:
Hubbell
