Hubbell YA282N

Hubbell YA282N by Hubbell

Call for Price
  • Part Number: YA282N
  • UPC: 00781810503652
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

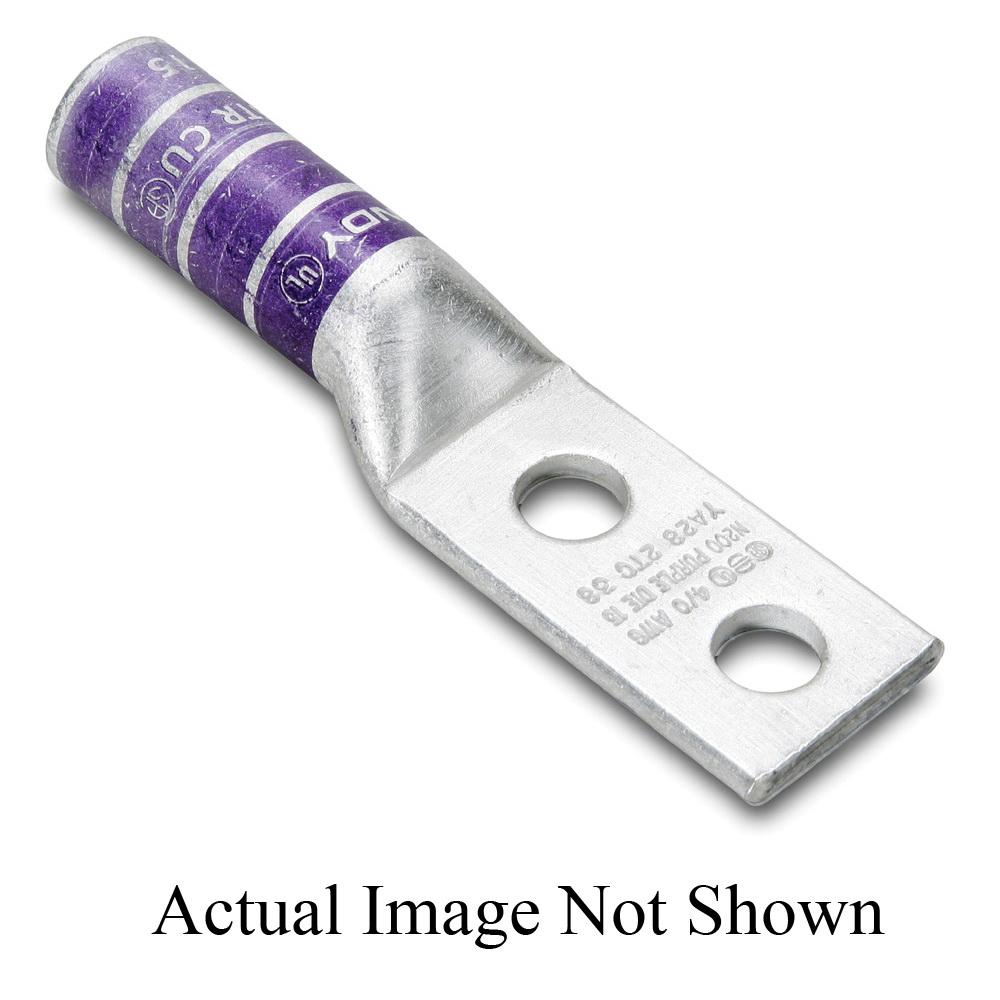

BURNDY® HYLUG™ YA282N 2-Hole Compression Lug Connector, 4/0 AWG Stranded Copper Conductor, Die Code: 15, 1/2 in Stud, Copper
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Compression Connectors & Lugs
Category Level 3:
Lug Compression Connectors
Application:
For code conductor
Barrel Size:
1.62 in L
Barrel Type:
Chamfered/Long
Long/Chamfered
Category Name:
Lug Compression Connectors
Color:
Purple
Conductor Size:
4/0
4/0 AWG
Conductor Type:
Stranded Copper
Country:
USA
Die Code:
15
Length:
8.0
Material:
Copper
Electro-Tin Plated Copper
Mounting Hole Size:
1-3/4
1-3/4 in
Overall Length:
5.17 in
5.17 L
Specifications:
1-11/16 in L Wire Strip
1-11/16 in Wire Stripe Length
Standard/Approvals:
UL 468A/468B|CSA Certified|RoHS/ARRA Compliant|Buy American Act Compliant|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive
Stud Size:
1/2
1/2 in
Temperature Rating:
90
90 deg C
Tongue Size:
1.02 in W x 0.14 in THK
Tongue Type:
Straight
Type:
2-Hole
Unspsc:
39121405
Voltage Rating:
600 to 35000
600 to 35000 VAC
Volume:
0.0
Weight:
2.0
Additional Information
Manufactured By:
Hubbell
