Product Overview

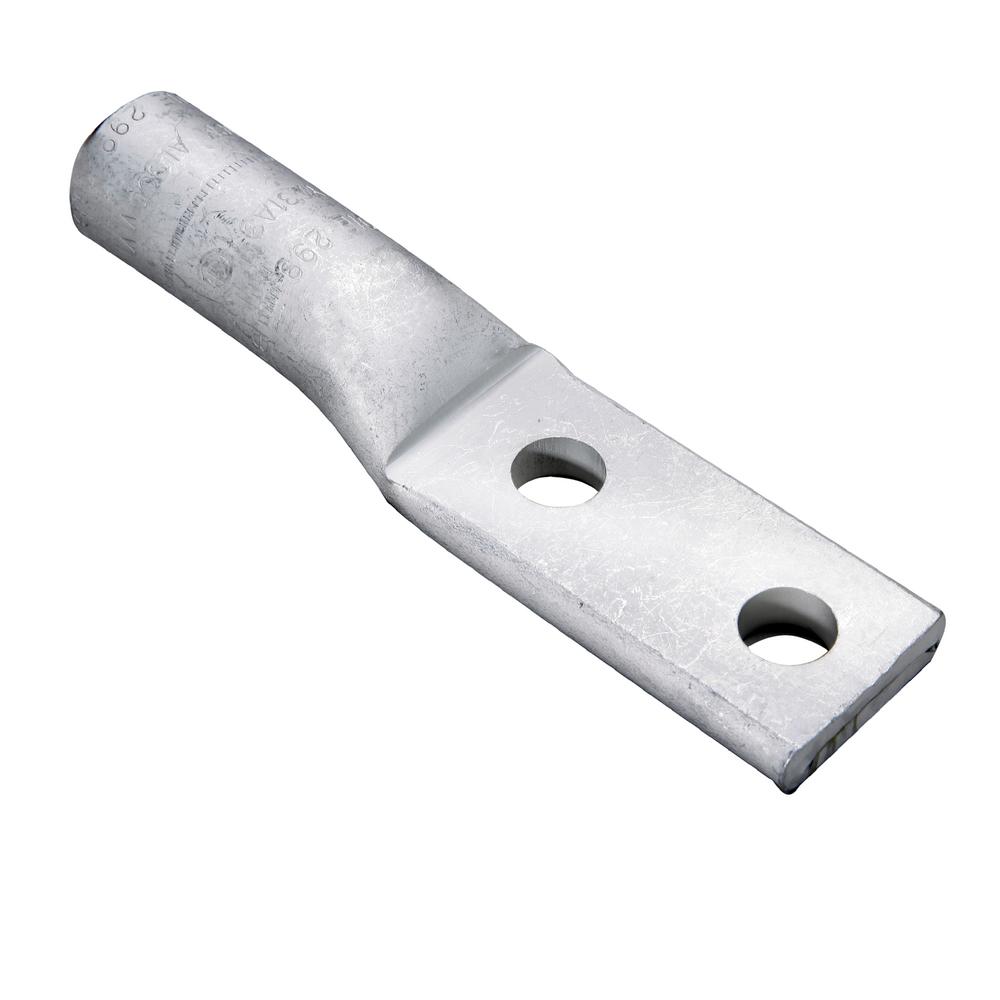

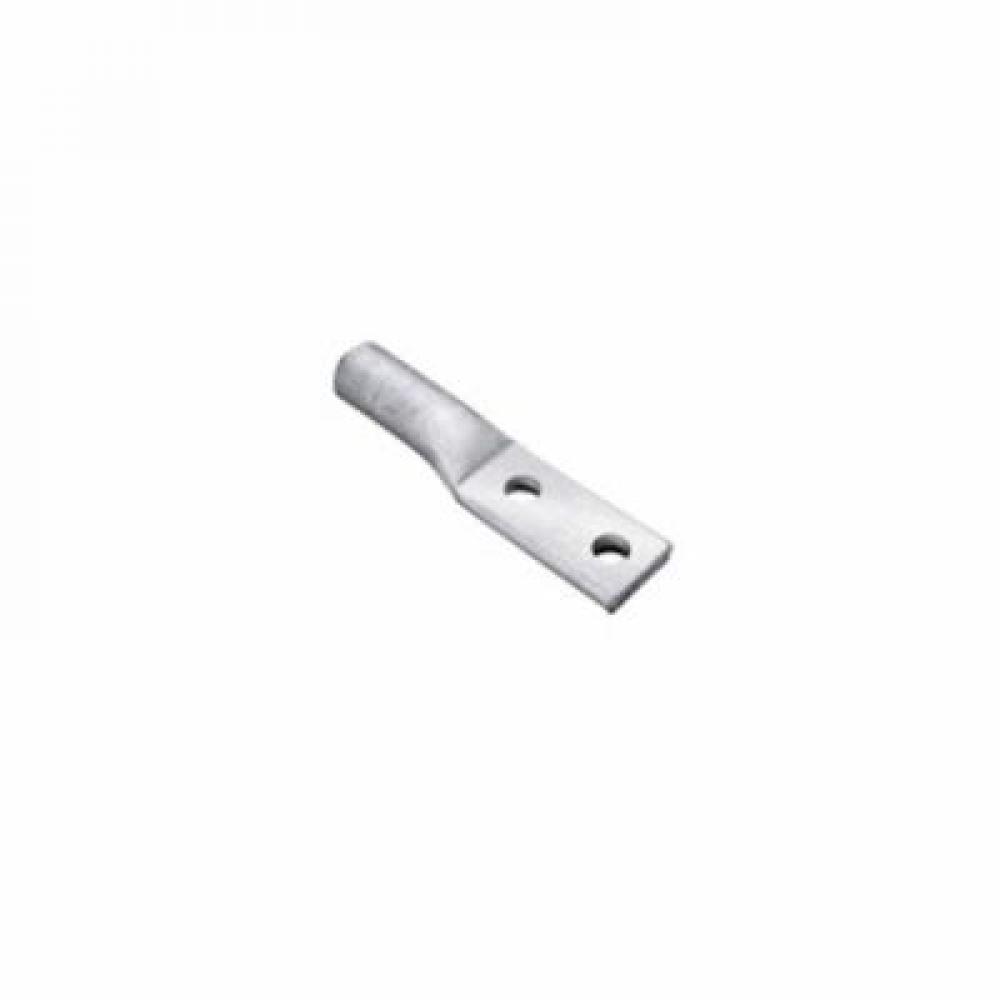

BURNDY® HYLUG YA28A7 YA-A 2-Hole Dual Rated Non-Insulated Compression Lug, 4/0 AWG Solid/Stranded Aluminum/Stranded Copper Conductor, Die Code: 298, 3/8 in Stud, Aluminum
Specifications
Details
Category Level 2:
Compression Connectors & Lugs
Category Level 3:
Lug Compression Connectors
Category Name:
Lug Compression Connectors
Conductor Type:
Solid/Stranded Aluminum/Stranded Copper
Material:
Aluminum
Electro-Tin Plated Aluminum
Specifications:
1-5/8 in L Wire Strip, 1 in Hole Spacing
1-5/8 in L Wire Stripe, 1 in Hole Spacing
Standard/Approvals:
ARRA Compliant|Buy American Act/RoHS Compliant|UL 468A/468B/486B|CSA Certified|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reprodu
Tongue Type:
Standard Straight
Standard/Straight
Type:
2-Hole Dual Rated Non-Insulated
2-Hole Dual Rated Uninsulated
