Hubbell YA2CL2TC38

Hubbell YA2CL2TC38 by Hubbell

Call for Price
  • Part Number: YA2CL2TC38
  • UPC: 00781810018170
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

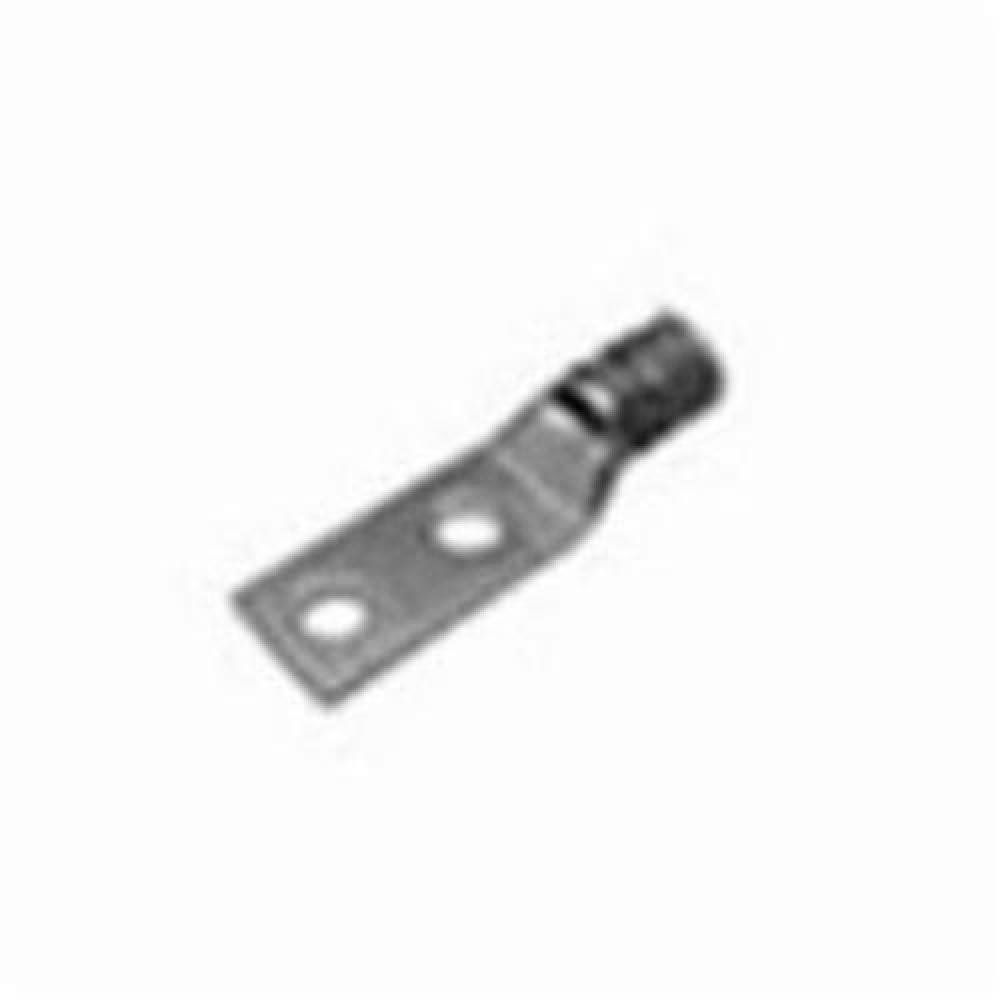

BURNDY® HYLUG YA2CL2TC38 YA-L-2TC 2-Hole Compression Lug With Inspection Window, 2 AWG Stranded Copper Conductor, Die Code: 10, 3/8 in Stud, Copper
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Compression Connectors & Lugs
Category Level 3:
Lug Compression Connectors
Application:
For code conductor
Barrel Size:
0.42 in OD x 0.88 in L
Barrel Type:
Chamfered/Short/Standard
Chamfered/Standard/Short
Category Name:
Lug Compression Connectors
Color:
Brown
Conductor Size:
2
2 AWG
Conductor Type:
Stranded Copper
Country:
USA
Die Code:
10
Length:
3.0
Material:
Copper
Electro-Tin Plated Copper
Overall Length:
3.03
3.03 in
Series:
YA-L-2TC
Specifications:
15/16 in L Wire Strip, 1 in Hole Spacing
15/16 in L Wire Stripe, 1 in Hole Spacing
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of Californ
Stud Size:
3/8
3/8 in
Temperature Rating:
90
90 deg C
Tongue Size:
0.6 in W x 0.11 in THK
Tongue Type:
Standard Straight
Standard/Straight
Type:
2-Hole
Unspsc:
39121405
Voltage Rating:
600 VAC to 35 kV
Volume:
0.0
Weight:
1.0
