Hubbell YA302TC38

Hubbell YA302TC38 by Hubbell

Call for Price
  • Part Number: YA302TC38
  • UPC: 00781810019924
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

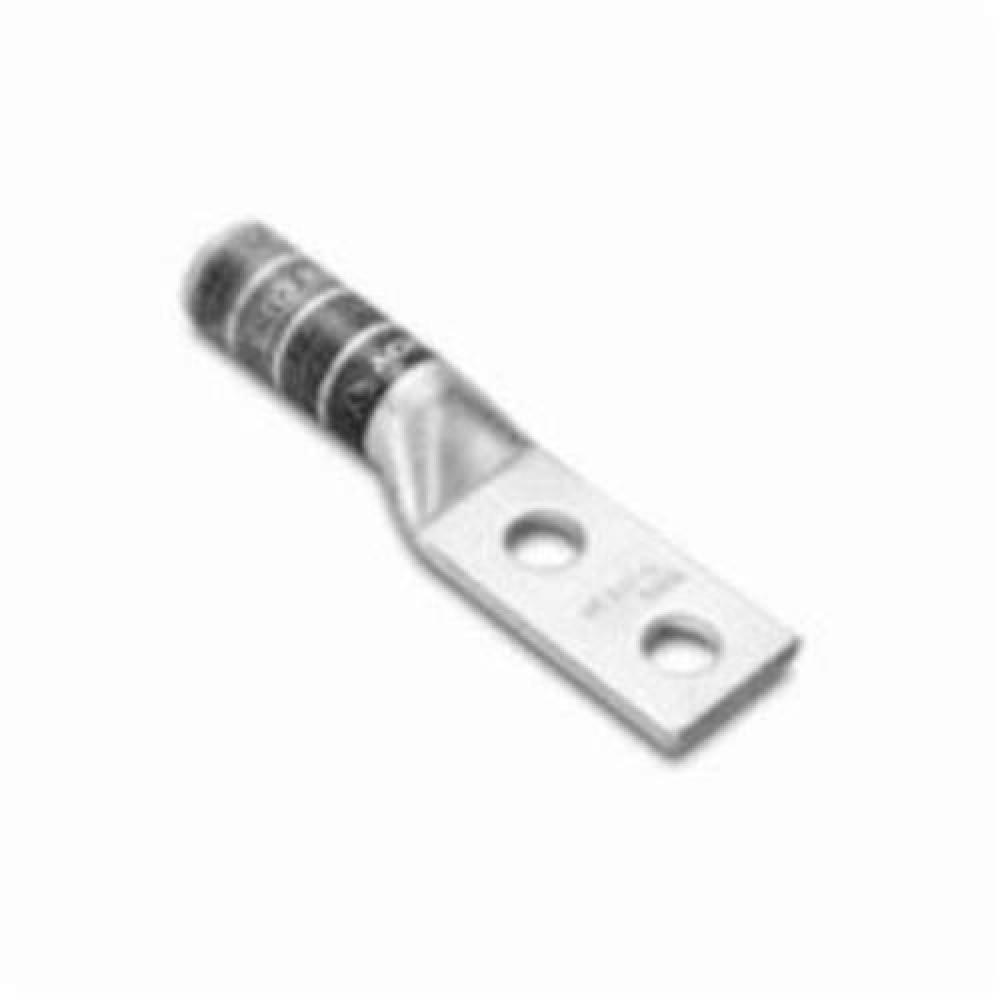

BURNDY® HYLUG YA302TC38 YA-2TC 2-Hole Compression Lug, 300 kcmil Stranded Copper Conductor, Die Code: 17/298, 3/8 in Stud, Copper
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Compression Connectors & Lugs
Category Level 3:
Lug Compression Connectors
Application:
For code conductor
Barrel Size:
0.81 in OD x 2 in L
Barrel Type:
Chamfered/Long
Category Name:
Lug Compression Connectors
Color:
White
Conductor Size:
300
300 kcmil
Conductor Type:
Stranded Copper
Country:
USA
Die Code:
17/298
Length:
8.0
Material:
Copper
Electro-Tin Plated Copper
Overall Length:
4.45
4.45 in
Series:
YA-2TC
Specifications:
2-1/16 in L Wire Strip, 1 in Stud Hole Spacing
2-1/16 in L Wire Stripe, 1 in Stud Hole Spacing
Standard/Approvals:
ARRA Compliant|Buy American Act/RoHS Compliant|UL 468A/468B Listed|CSA Certified|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other repro
Stud Size:
3/8
3/8 in
Temperature Rating:
90
90 deg C

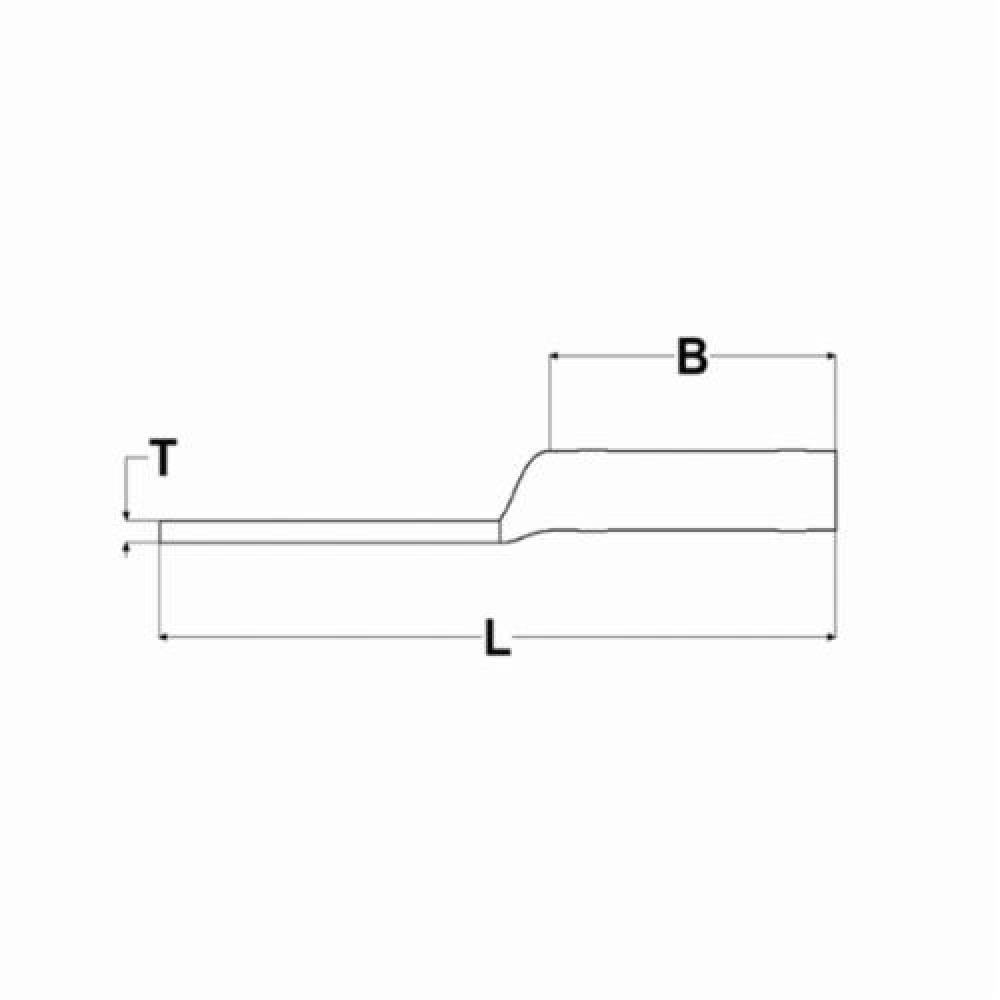

Tongue Size:
1.2 in W x 0.16 in THK
Tongue Type:
Straight
Type:
2-Hole
Unspsc:
39121405
Voltage Rating:
600 VAC to 35 kV
Volume:
0.0
Weight:
3.0
Additional Information
Manufactured By:
Hubbell
