Hubbell YA312NFXB

Hubbell YA312NFXB by Hubbell

Call for Price
  • Part Number: YA312NFXB
  • UPC: 00781810039908
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

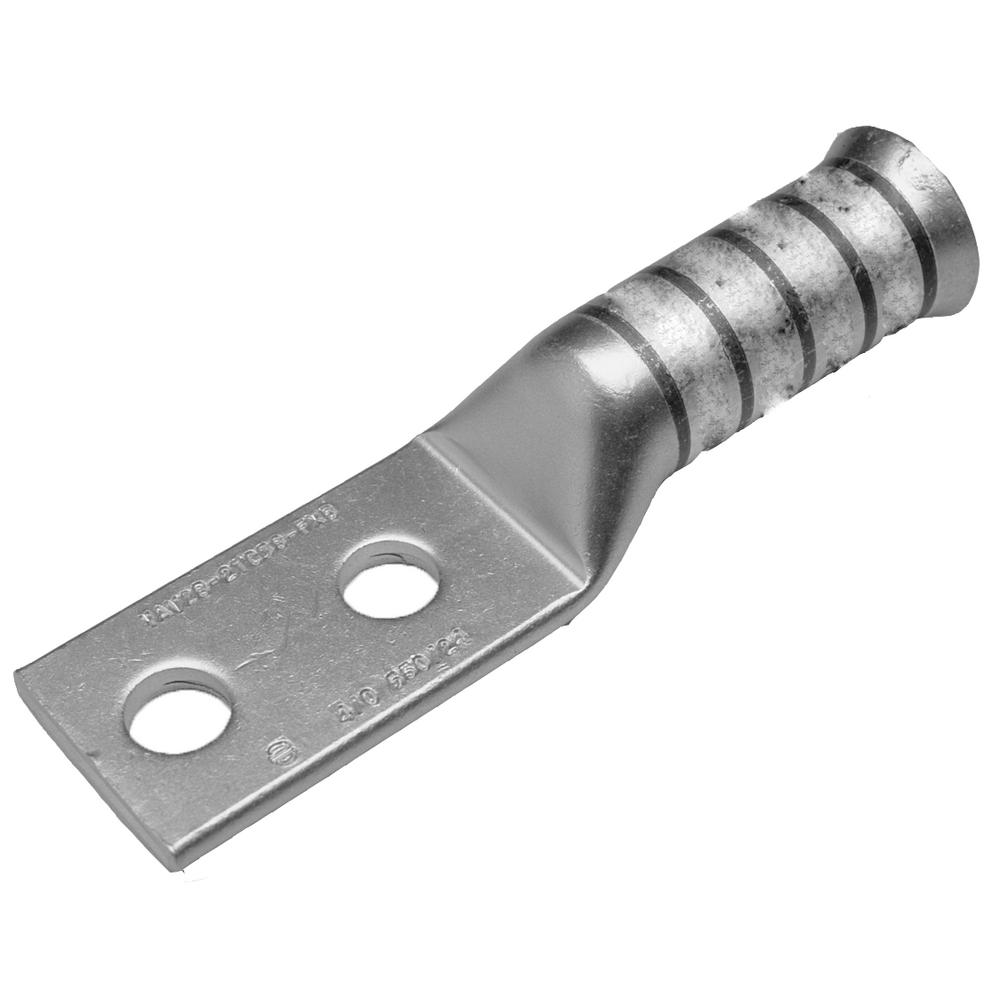

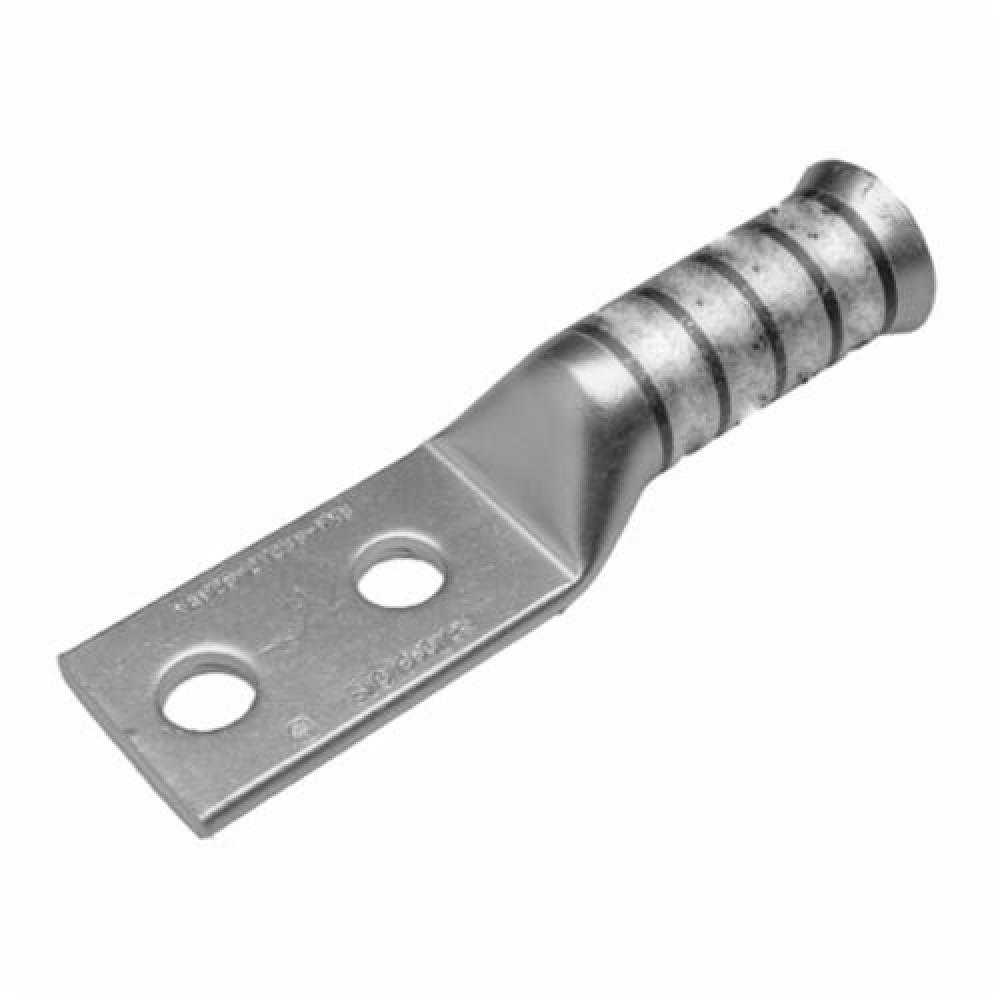

BURNDY® HYLUG YA312NFXB 2-Hole Compression Lug, 250 kcmil Copper Conductor, Die Code: 17, 1/2 in Stud, Copper
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Compression Connectors & Lugs
Category Level 3:
Lug Compression Connectors
Application:
For flex conductor
Barrel Size:
2.18 in L
Barrel Type:
Belled End/Long
Category Name:
Lug Compression Connectors
Color:
White
Conductor Size:
250
250 kcmil
Conductor Type:
Copper
Country:
USA
Die Code:
17
Length:
6.0
Material:
Copper
Electro-Tin Plated Copper
Overall Length:
5.85
5.85 in
Series:
YA Series
Specifications:
2-1/4 in L Wire Strip, 1-3/4 in Hole Spacing
2-1/4 in L Wire Stripe, 1-3/4 in Hole Spacing
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of Californ
Stud Size:
1/2
1/2 in
Temperature Rating:
90
90 deg C
Tongue Size:
1.29 in W x 0.18 in THK
Tongue Type:
Standard Straight
Standard/Straight
Type:
2-Hole
Unspsc:
39121405
Voltage Rating:
600 VAC to 35 kV
Volume:
0.0
Weight:
4.0
Additional Information
Manufactured By:
Hubbell
