Hubbell YA464N

Hubbell YA464N by Hubbell

Call for Price
  • Part Number: YA464N
  • UPC: 00781810086056
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

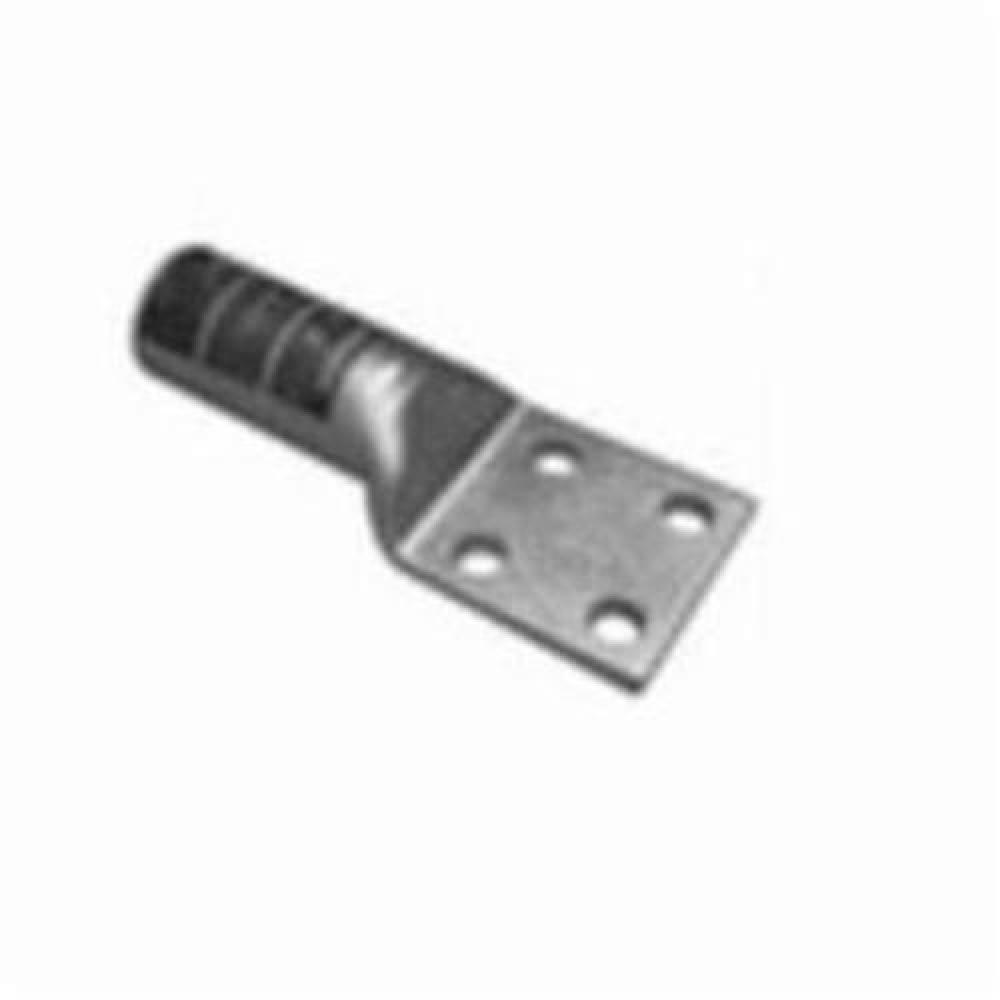

BURNDY® HYLUG YA464N 4-Hole Compression Lug, 1500 kcmil Stranded Copper Conductor, Die Code: 31, 1/2 in Stud, Copper
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Compression Connectors & Lugs
Category Level 3:
Lug Compression Connectors
Barrel Size:
1.84 in OD x 3.19 in L
Barrel Type:
Chamfered/Long
Category Name:
Lug Compression Connectors
Color:
Green
Conductor Size:
1500
1500 kcmil
Conductor Type:
Stranded Copper
Country:
USA
Die Code:
31
Length:
9.0
Material:
Copper
Tin Plated Copper
Overall Length:
7.55
7.55 in
Series:
YA Series
Specifications:
3-1/4 in L Wire Strip, 1-3/4 in Hole Spacing
3-1/4 in L Wire Stripe, 1-3/4 in Hole Spacing
Standard/Approvals:
ARRA, Buy American Act and RoHS Compliant, UL 468A, 468B Listed, CSA Certified
Stud Size:
1/2
1/2 in
Temperature Rating:
90
90 deg C
Tongue Size:
3 in W x 0.34 in THK
Tongue Type:
Straight
Type:
4-Hole
Unspsc:
39121405
Voltage Rating:
600 VAC to 35 kV
Volume:
0.0
Weight:
17.0
Additional Information
Manufactured By:
Hubbell
