Hubbell YAEV18BOX

Hubbell YAEV18BOX by Hubbell

Call for Price
  • Part Number: YAEV18BOX
  • UPC: 00781810023334
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

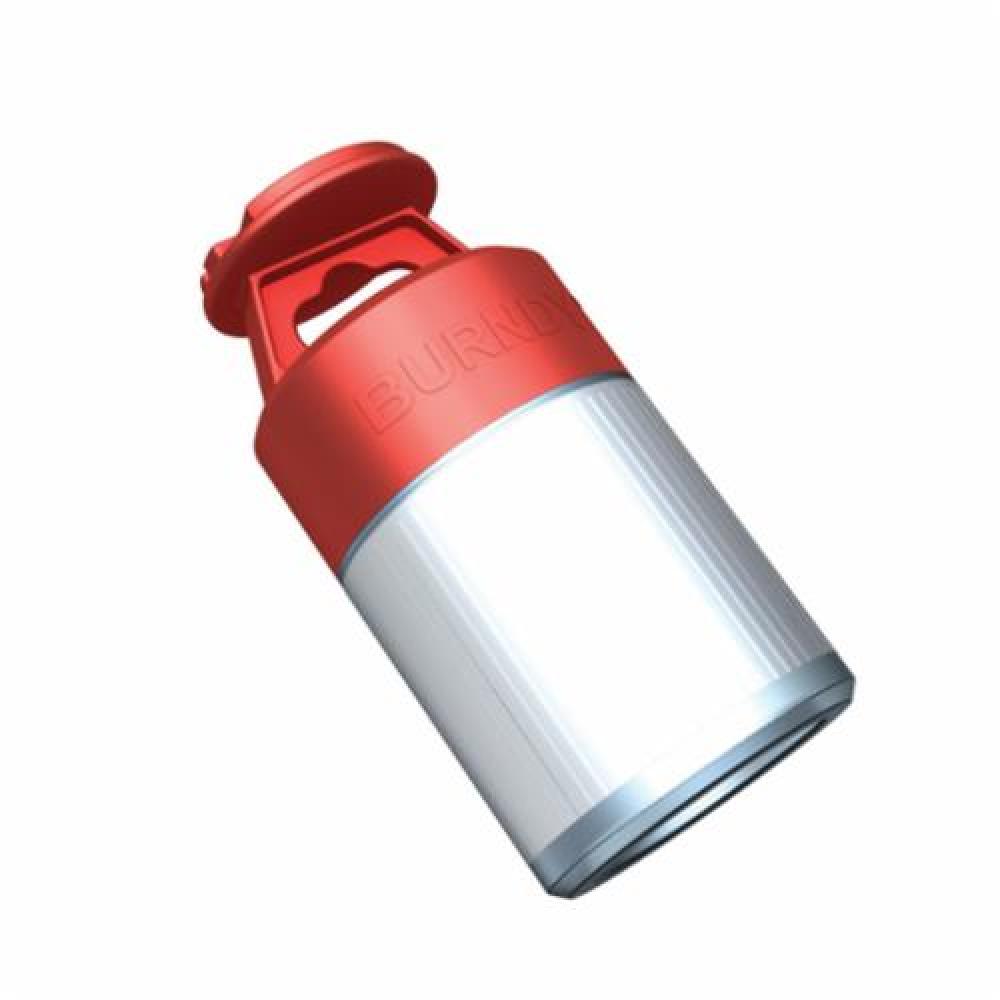

BURNDY® INSULUG YAEV18BOX 1-Hole Heavy Duty Compression Lug With Inspection Hole, 22 to 18 AWG Stranded Copper Conductor, #8 to #10 Stud, Copper
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Compression Connectors & Lugs
Category Level 3:
Lug Compression Connectors
Application:
For high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants
Barrel Type:
Short
Category Name:
Lug Compression Connectors
Color:
Red
Conductor Size:
22 to 18
22 to 18 AWG
Conductor Type:
Stranded Copper
Country:
USA
Length:
1.0
Material:
Copper
Overall Length:
0.91
0.91 in
Series:
YAEV
Specifications:
1/4 in L Wire Strip
1/4 in L Wire Stripe
Standard/Approvals:
ARRA, Buy American Act and RoHS Compliant, Military Specified UL486, MIL-T-7928 Listed, CSA Certified
Stud Size:
#8 to #10
Temperature Rating:
105
105 deg C
Tongue Size:
0.31 in W
Tongue Type:
Ring Straight
Ring/Straight
Type:
1-Hole Heavy Duty
Unspsc:
39121405
Voltage Rating:
300
300 VAC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Hubbell
