Hubbell YAEV8CL2

Hubbell YAEV8CL2 by Hubbell

Call for Price
  • Part Number: YAEV8CL2
  • UPC: 00781810027752
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

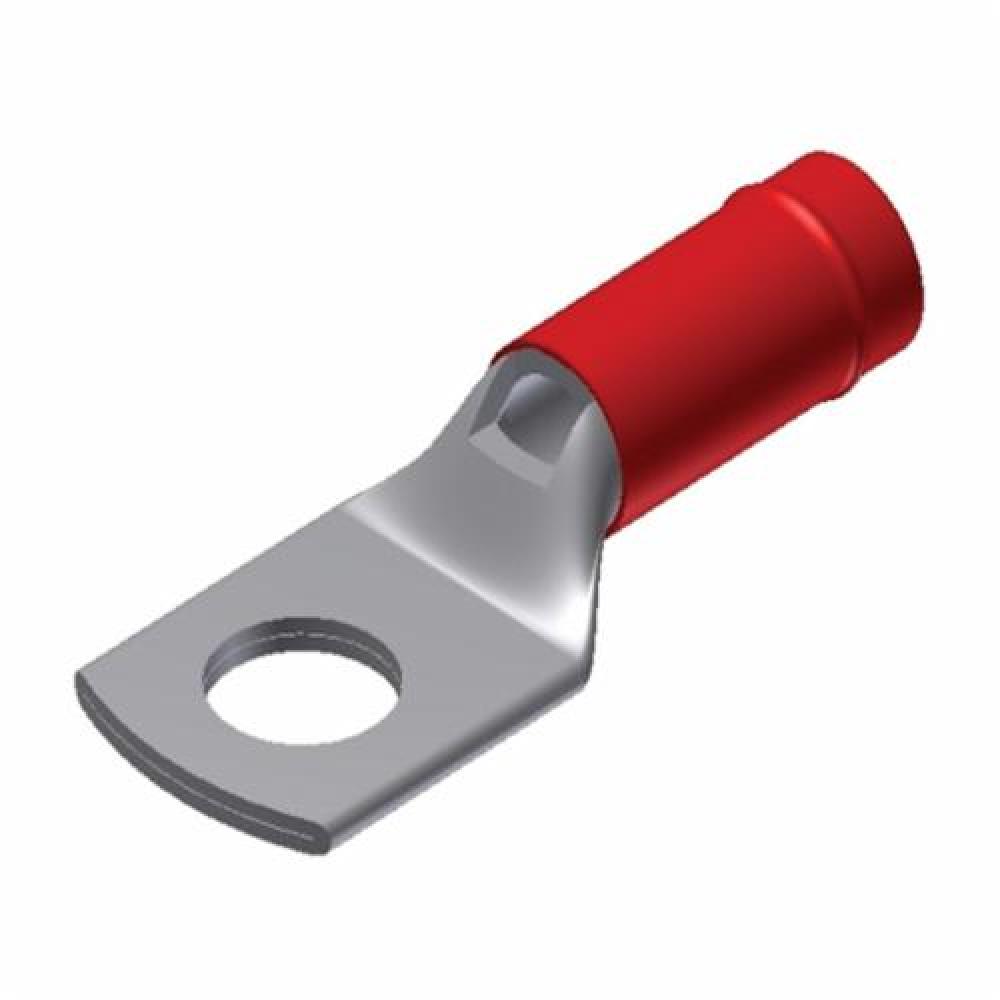

BURNDY® INSULUG YAEV8CL2 YAEV-L 1-Hole Heavy Duty Compression Lug With Inspection Hole, 8 AWG Stranded Copper Conductor, 5/16 in Stud, Copper
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Compression Connectors & Lugs
Category Level 3:
Lug Compression Connectors
Application:
For high vibration applications encountered in aircraft and aboard ships as well as motor lead applications in hospitals, industrials and generating plants
Barrel Type:
Short
Category Name:
Lug Compression Connectors
Color:
Red
Conductor Size:
8
8 AWG
Conductor Type:
Stranded Copper
Country:
USA
Length:
6.0
Material:
Copper
Overall Length:
1.54
1.54 in
Series:
YAEV-L
Specifications:
7/16 in L Wire Strip
7/16 in L Wire Stripe
Standard/Approvals:
ARRA, Buy American Act and RoHS Compliant, Military Specified UL486, MS15036-117 Listed, CSA Certified
Stud Size:
5/16
5/16 in
Temperature Rating:
105
105 deg C
Tongue Size:
0.57 in W
Tongue Type:
Ring Straight
Ring/Straight
Type:
1-Hole Heavy Duty
Unspsc:
39121405
Voltage Rating:
300
300 VAC
Volume:
0.0
Weight:
3.0
Additional Information
Manufactured By:
Hubbell
