Hubbell YAV26TC12FXB

Hubbell YAV26TC12FXB by Hubbell

Call for Price
  • Part Number: YAV26TC12FXB
  • UPC: 00781810065549
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

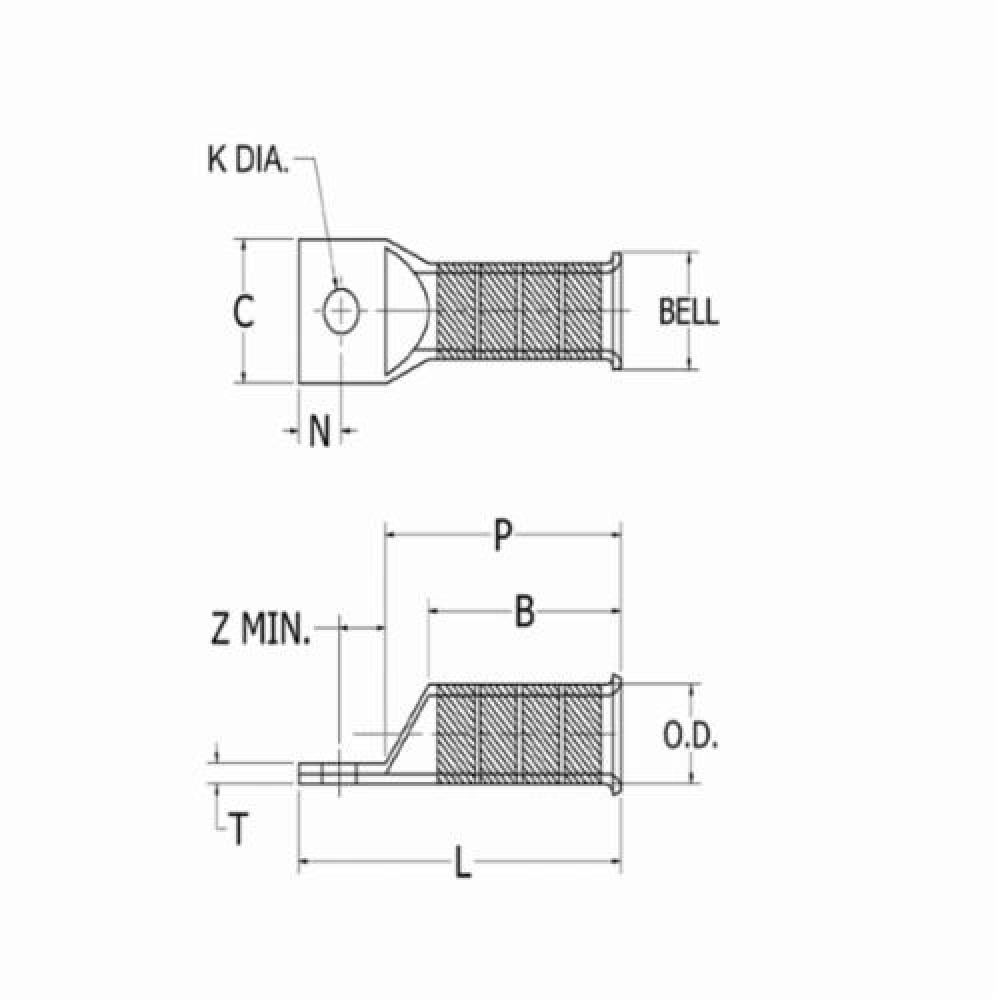

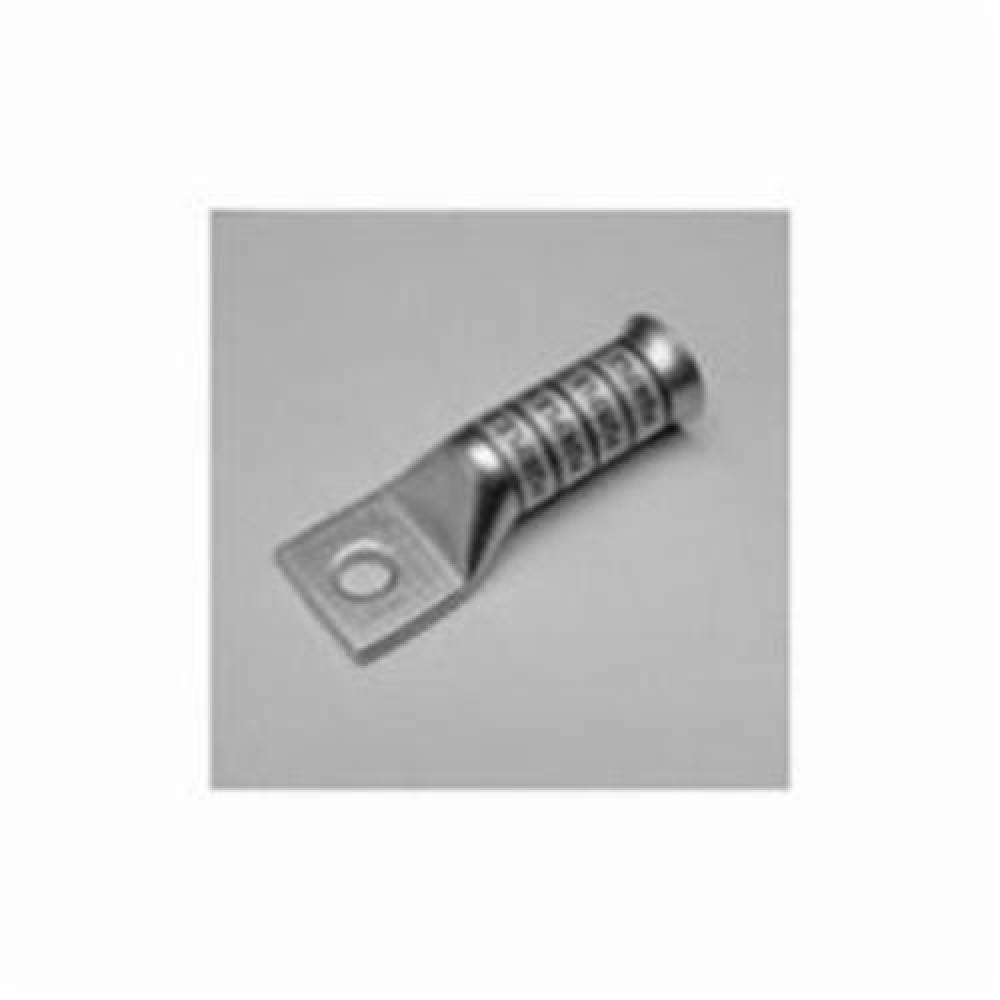

BURNDY® HYLUG YAV26TC12FXB YAV-TC-FXB 1-Hole Compression Lug, 2/0 AWG Stranded Copper Conductor, Die Code: 13, 1/2 in Stud, Copper
Specifications
Details
Category Level 1:
Wiring Connectors
Category Level 2:
Compression Connectors & Lugs
Category Level 3:
Lug Compression Connectors
Barrel Size:
0.74 in OD x 1.63 in L
Barrel Type:
Belled End/Long
Category Name:
Lug Compression Connectors
Color:
Black
Conductor Size:
2/0
2/0 AWG
Conductor Type:
Stranded Copper
Country:
USA
Die Code:
13
Length:
3.0
Material:
Copper
Electro-Tin Plated Copper
Overall Length:
3.39
3.39 in
Series:
YAV-TC-FXB
Specifications:
1-13/16 in L Wire Strip
1-13/16 in L Wire Stripe
Standard/Approvals:
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of Californ
Stud Size:
1/2
1/2 in
Temperature Rating:
90
90 deg C
Tongue Size:
0.93 in W x 0.13 in THK
Tongue Type:
Standard Straight
Standard/Straight
Type:
1-Hole
Unspsc:
39121405
Voltage Rating:
600 VAC to 35 kV
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Hubbell
