Intermatic DTAV40

Intermatic DTAV40 by Intermatic

Call for Price
  • Part Number: DTAV40
  • UPC: 00078275125162
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

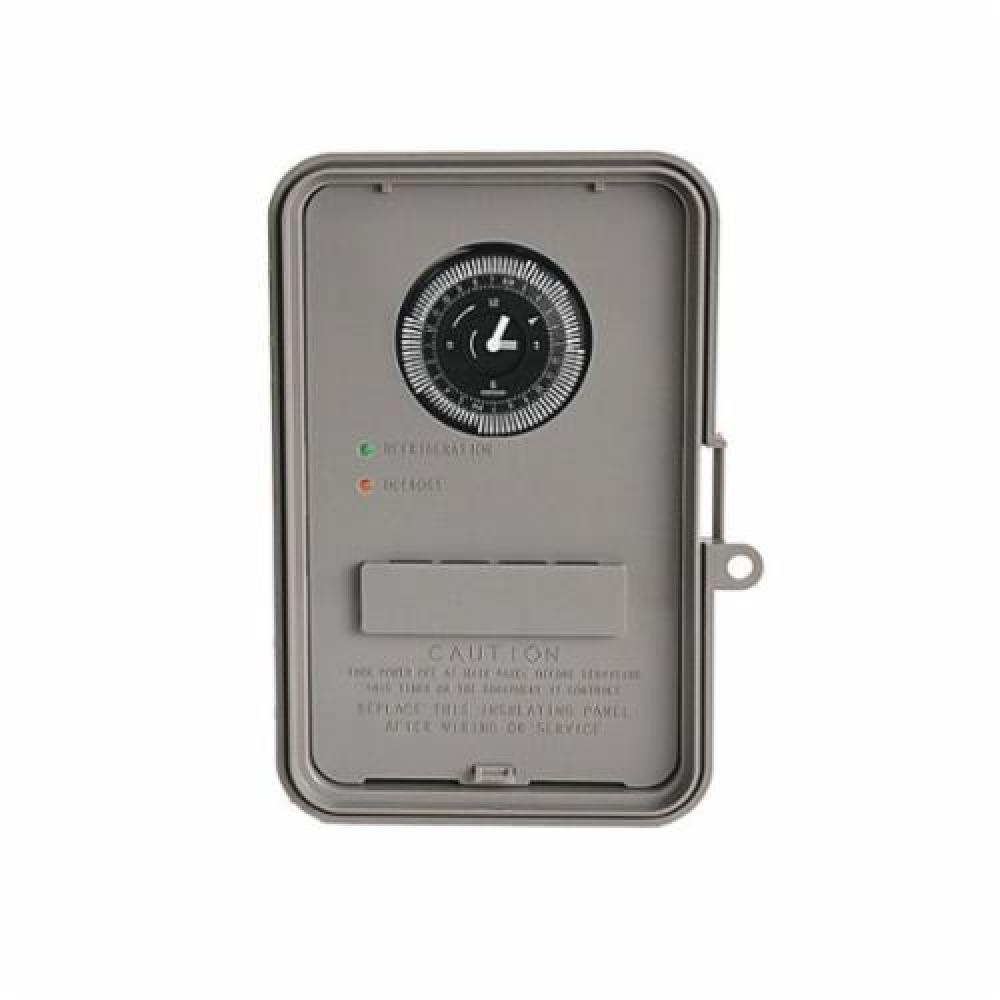

Intermatic® Grasslin® DTAV40 Auto Voltage Defrost Timer, 15 min to 23 hr/45 min Defrost, 120 to 240 VAC, 1 hp, 2 hp, DPST/SPST Contact Form, 2 Poles
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Timers
Category Level 3:
Defrost Timers
Amperage Rating:
40
40 A
Application:
Defrost, Medium and Low Temperature Commercial Refrigeration System and HVACR Applications
Category Name:
Defrost Timers
Contact Form:
DPST/SPST
Country:
USA/Canada
Defrost Time:
15 min to 23 hr/45 min
Dimensions:
8.88 in H x 6.61 in W x 3 in D
Electrical Connections:
Box Lug
Enclosure Type:
NEMA 3R
Horsepower:
1 hp, 2 hp hp
1, 2
Length:
7.0
Mounting Type:
Wall
Number of Channels:
1
Number of Poles:
2
Series:
DTAV40
Standard/Approvals:
RoHS Compliant|cULus Listed|HVACR Approved|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
Temperature Rating:
-40 to 104
-40 to 104 deg F
Type:
Auto Voltage
Unspsc:
39122208
Voltage Rating:
120 to 240
120 to 240 VAC
Volume:
0.0
Weight:
11.0
Additional Information
Manufactured By:
Intermatic
