Intermatic EK4136S

Intermatic EK4136S by Intermatic

Call for Price
  • Part Number: EK4136S
  • UPC: 00078275146297
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

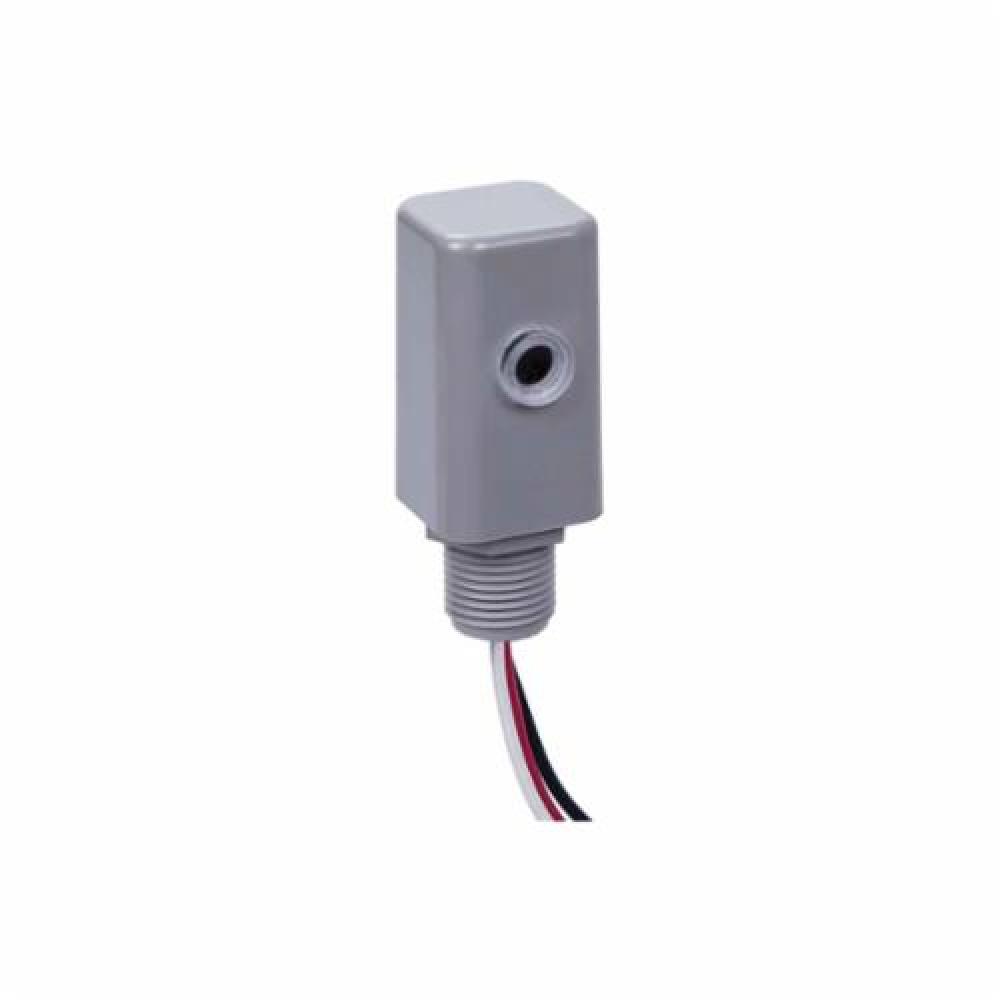

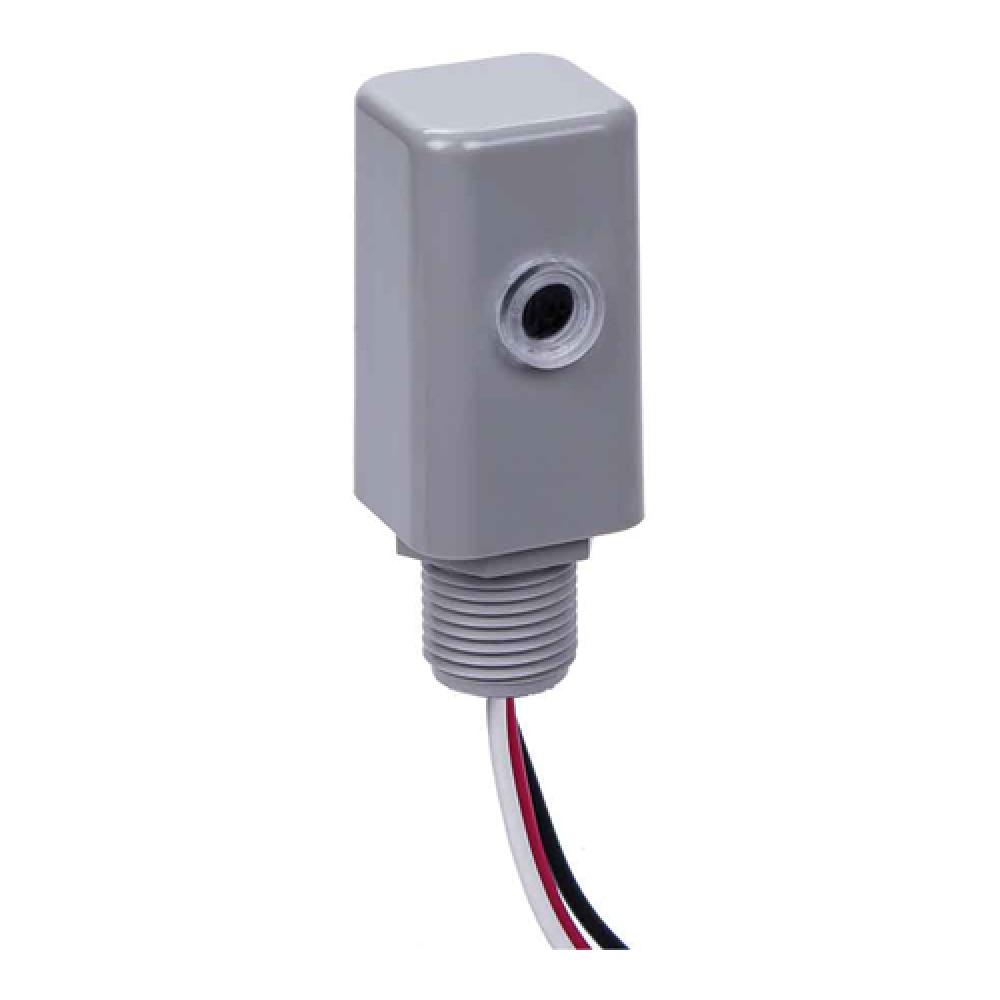

Intermatic® EK4136S Electronic Stem Mounting Photocontrol, 105 to 305 VAC, 1000 W Tungsten, 1800 VA Ballast, Stem Mount, Plastic
Specifications
Details
Category Level 1:
Lighting Controls & Ballasts
Category Level 2:
Photocontrols
Category Level 3:
Stem Mounting Photocontrols
Amperage Rating:
6
6 A
Application:
Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway, Landscape Lighting and Dusk to Dawn Lighting Control
Ballast Load:
1800
1800 VA
Category Name:
Stem Mounting Photocontrols
Color:
Gray
Country:
USA/Canada
Dimensions:
2.25 in H x 1.3 in W x 1.24 in D
Enclosure Type:
NEMA 4/10
Environmental Conditions:
-40 to 158 deg F Operating Temperature
Fixture Type:
HID/LED
Frequency Rating:
50/60
50/60 Hz
Length:
2.0
Material:
Plastic
Mounting Type:
Stem
Operating Cycles:
1000
Sensitivity:
1.5 fc ON/2.25 fc OFF
Sensor Type:
Solid State/Silicon IR Filter
Standard/Approvals:
RoHS Compliant|ANSI C136.24 Compliant|cULus|Title CA 20 Listed|cCSAus Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Timing Range:
2 to 5
2 to 5 s
Tungsten Rating:
1000
1000 W
Type:
Electronic
Unspsc:
39121524
Voltage Rating:
105 to 305
105 to 305 VAC
Volume:
0.0
Weight:
0.0
Wire Size:
18
18 AWG
Additional Information
Manufactured By:
Intermatic
