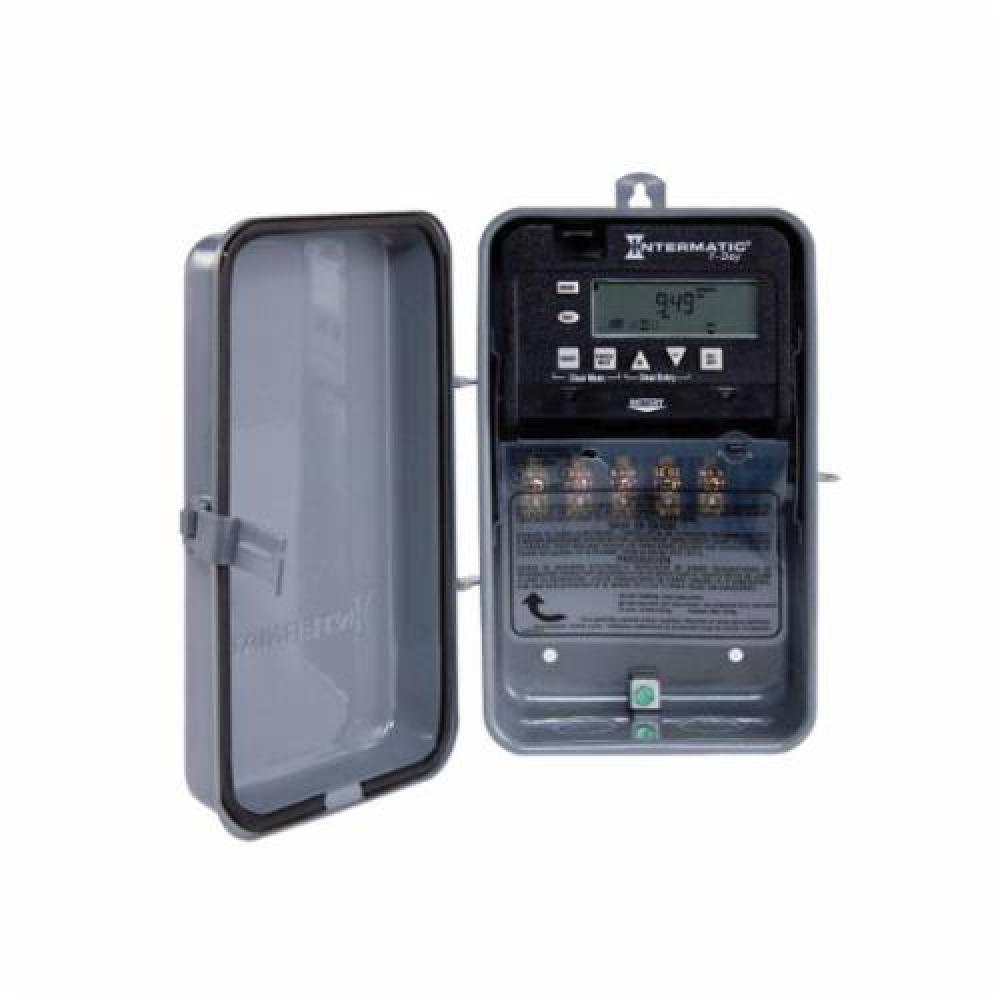

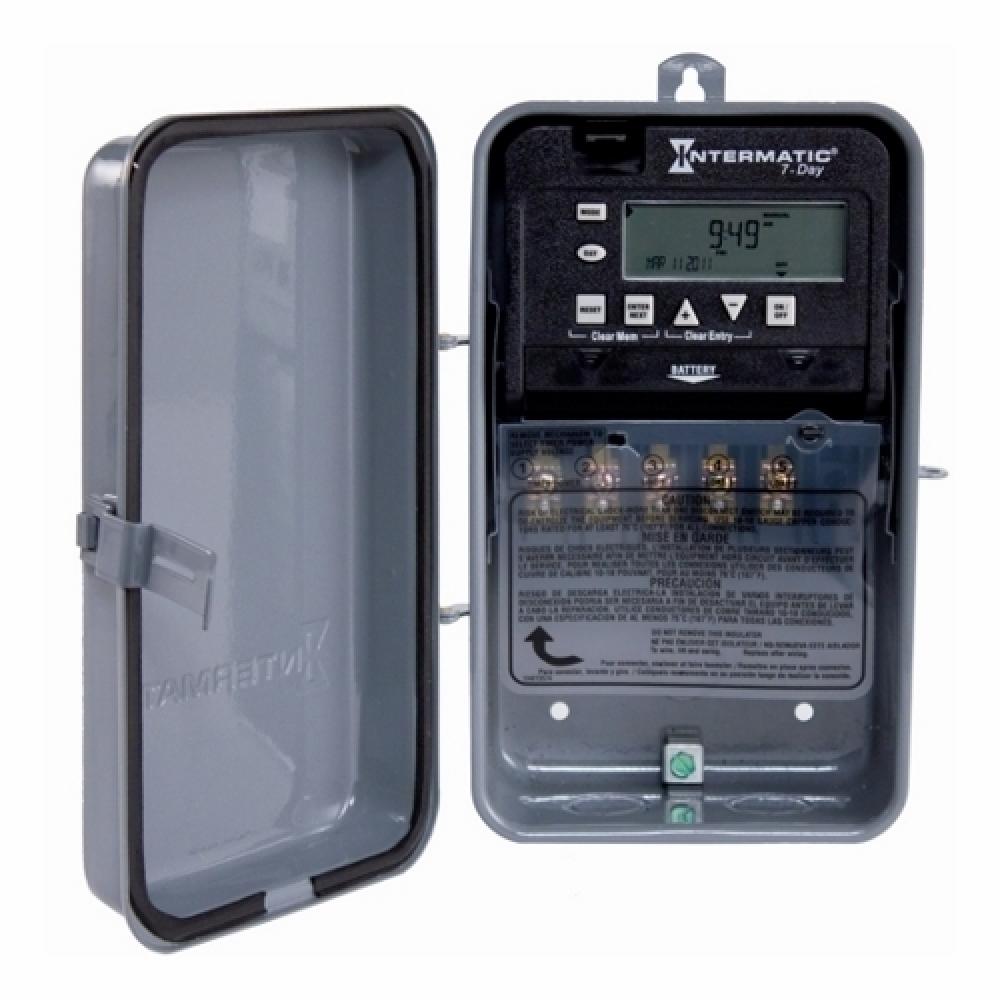

Intermatic ET1715CR

Intermatic ET1715CR by Intermatic

Call for Price
  • Part Number: ET1715CR
  • UPC: 00078275109889
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Intermatic® ET1700 Electronic Timer Switch, 1 min to 6 days 23 hr 59 min Time Setting, 120/277 VAC, 1 hp, 2 hp, 1NO-1NC SPDT Contact Form, 1 Pole
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Timers
Category Level 3:
Electronic Timers
Amperage Rating:
30
30 A
Application:
Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control and Various Other Electrical Loads, Outdoor, HVACR and Industrial Applications
Battery Type:
AAA Alkaline
Category Name:
Electronic Timers
Contact Form:
1NO-1NC SPDT
Country:
USA/Canada
Dimensions:
257.2 mm H x 165.1 mm W x 92.1 mm D
Electrical Connections:
Teeter/Wire Lead
Enclosure Type:
NEMA 3R
Horsepower:
1, 2
1, 2 hp
Length:
12.0
Mounting Type:
Wall
Number of Poles:
1
Operation Mode:
7
7 days
Series:
ET1700
Standard/Approvals:
RoHS Compliant|cCSAus Certified|HVACR Approved|Title CA 20 Listed|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Temperature Rating:
-40 to 155
-40 to 155 deg F
Time Setting:
1 min to 6 Days 23 hr 59 min
Unspsc:
39122208
Voltage Rating:
120/277
120/277 VAC
Volume:
0.0
Weight:
4.0
Additional Information
Manufactured By:
Intermatic
