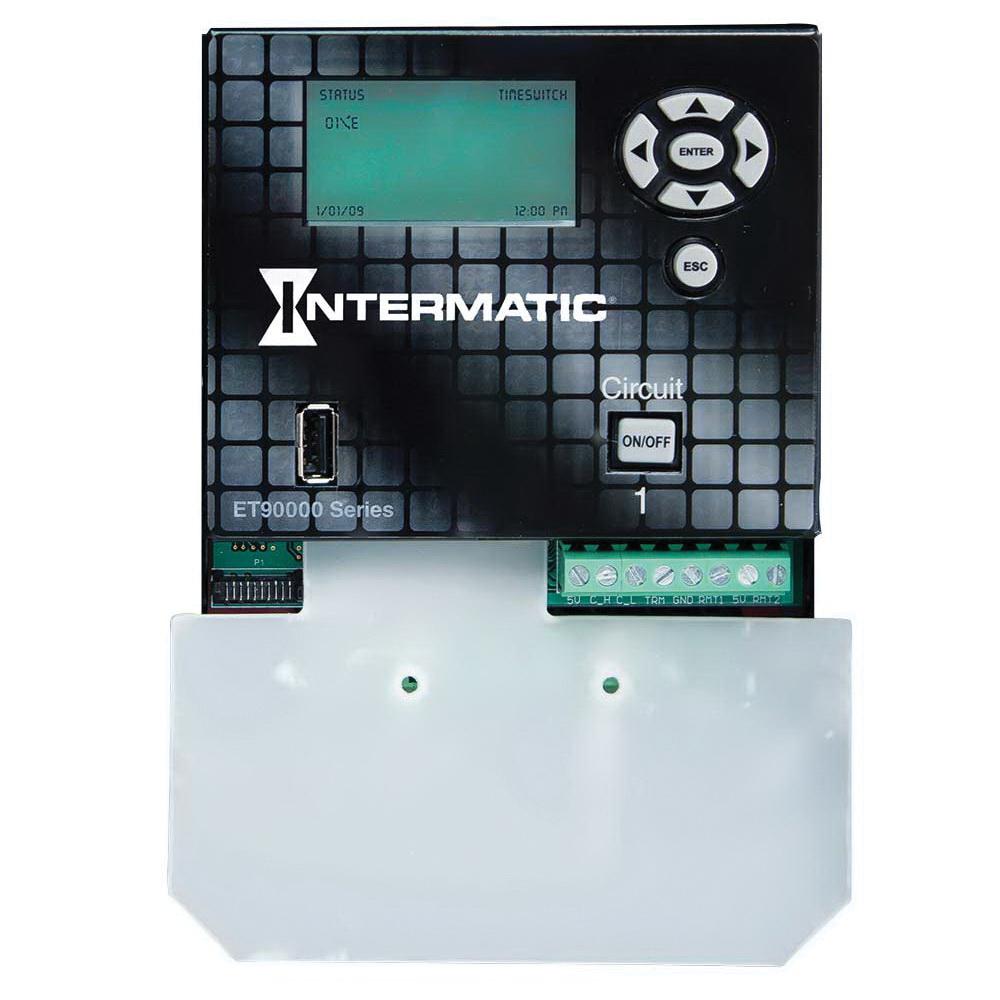

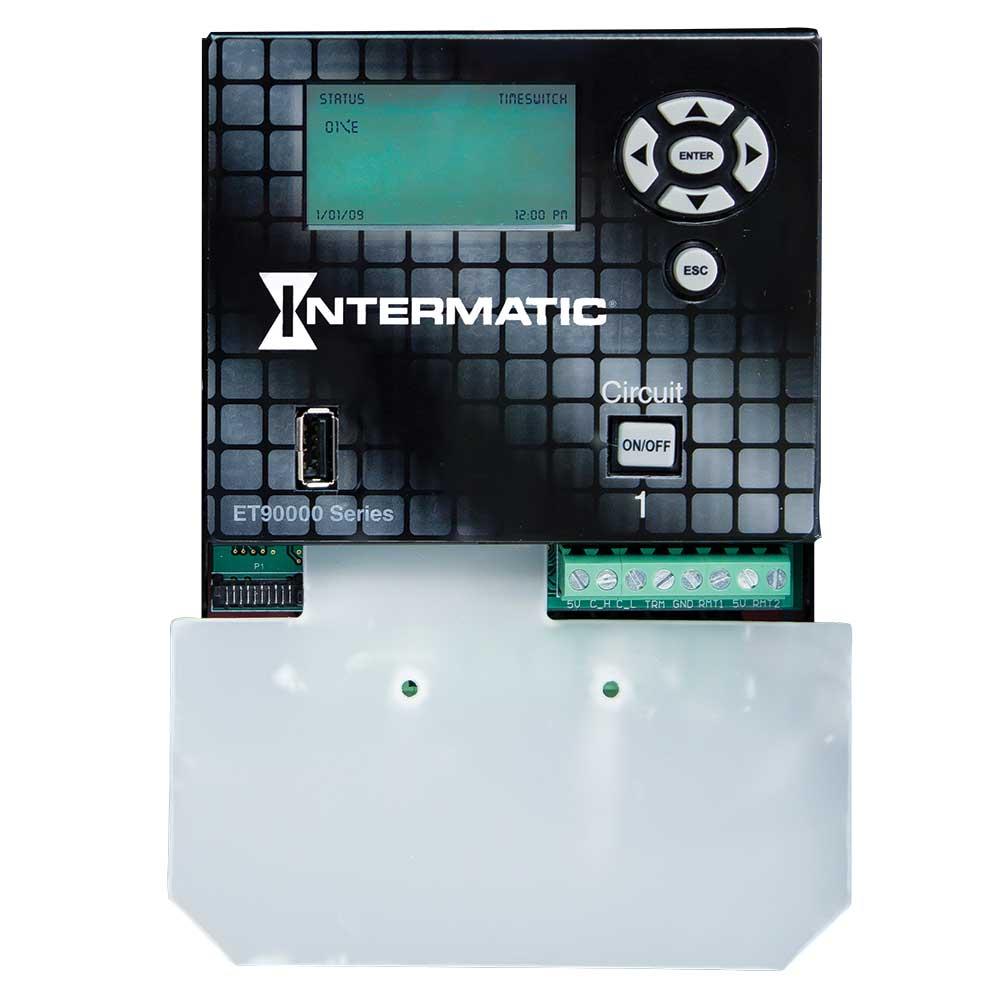

Intermatic ET90115M

Intermatic ET90115M by Intermatic

Call for Price
  • Part Number: ET90115M
  • UPC: 00078275129948
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Intermatic® ET90115M Astronomic Mechanism Electronic Time Switch, 1 sec to 365 Days Time Setting, 120 to 277 VAC, 0.25 hp, 0.5 hp, 1 hp, 2 hp, 1SPDT 1NO-1NC Contact Form, 1 Pole
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Timers
Category Level 3:
Electronic Timers
Amperage Rating:
3/20
3/20 A
Application:
General Purpose, HVACR, School Districts, Banks, Small Hotels, Franchises Retail Stores, Municipalities, Parking Lots, Offices
Category Name:
Electronic Timers
Contact Form:
1NO-1NC 1SPDT
1SPDT 1NO-1NC
Country:
USA/Canada
Display Type:
Digital
Electrical Connections:
20 to 6 AWG Wire Lead
Horsepower:
0.25, 0.5, 1, 2
1/4 hp, 1/2 hp, 1 hp, 2 hp
Length:
9.0
Number of Channels:
1
Number of Poles:
1
Number of Pulse Events:
2000
Operation Mode:
365 Days
Series:
ET90000
Standard/Approvals:
RoHS Compliant|cULus Listed|cCSAus Certified|HVACR Rated|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Temperature Rating:
-40 to 104
-40 to 104 deg F
Time Setting:
1 sec to 365 days
Type:
Astronomic Mechanism
Unspsc:
39122208
Voltage Rating:
120 to 277
120 to 277 VAC
Volume:
0.0
Weight:
1.0
Additional Information
Manufactured By:
Intermatic
