Intermatic FM1D1424U

Intermatic FM1D1424U by Intermatic

Call for Price
  • Part Number: FM1D14-24U
  • UPC: 00078275142794
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

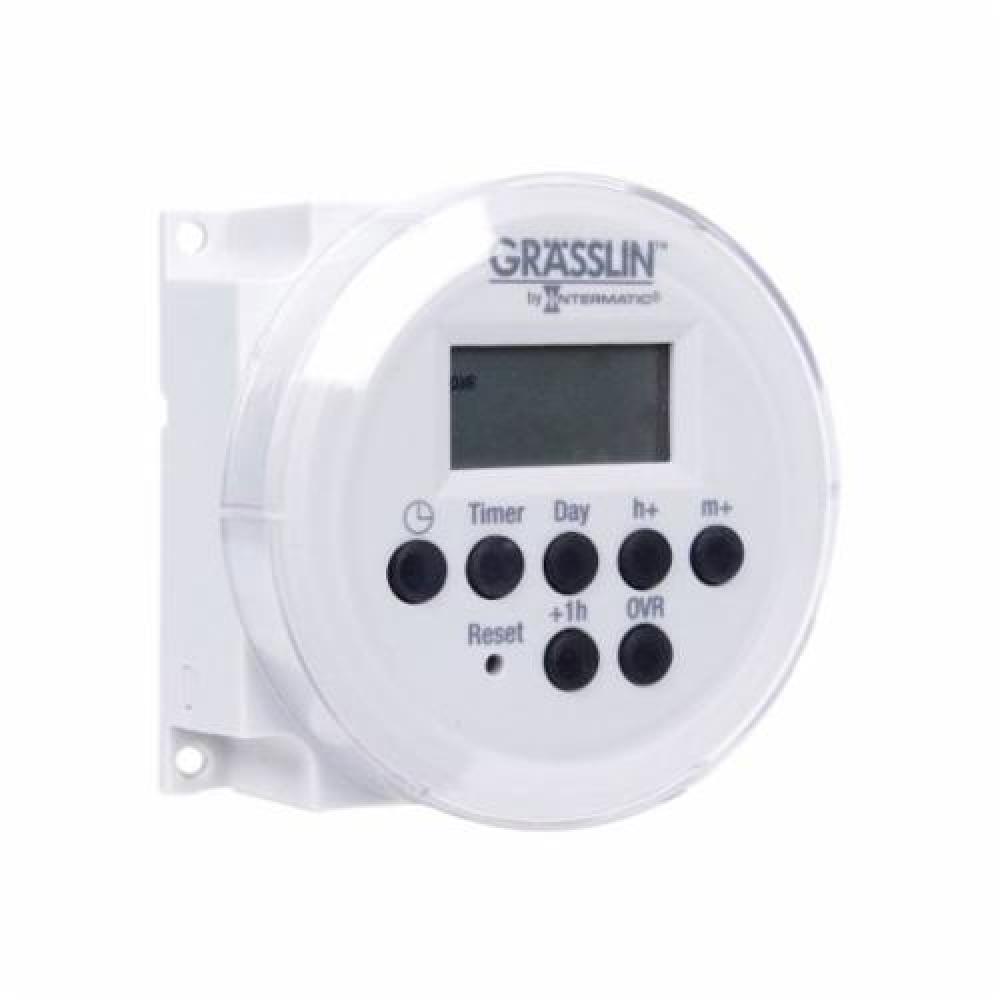

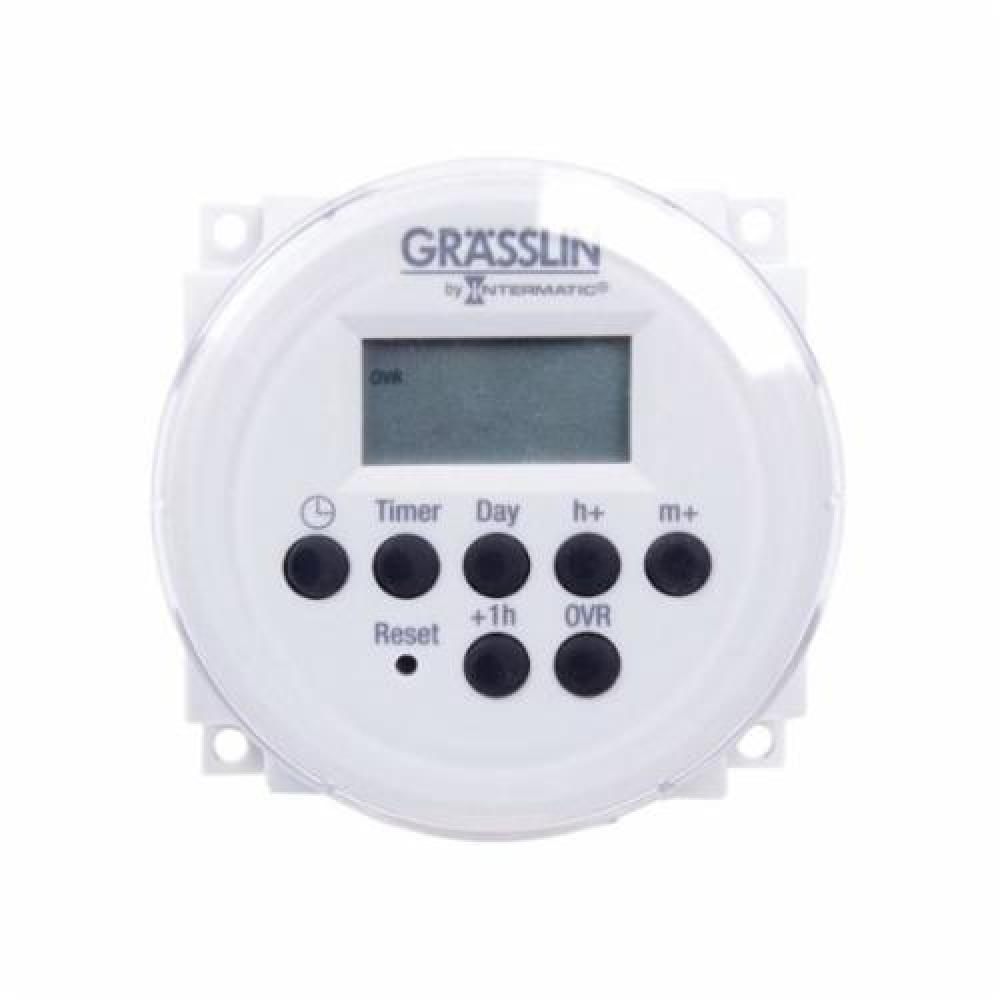

Intermatic® Grasslin® FM1D14 1-Channel Digital Electronic Timer Switch, 1 min to 24 hr/7 days Time Setting, 24 VAC/VDC, 1/2 hp, 1 hp, 1NO-1NC SPDT Contact Form, 1 Pole
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Timers
Category Level 3:
Electronic Timers
Amperage Rating:
12
12 A
Application:
Pumps, Fans, Heaters, HVAC, Machinery, Commercial, Industrial, Generator Exercising, Scheduling Occupied/Unoccupied Ventilation System Operation, Photovoltaic Control, Landscape Lighting and Security Gates Applications
Battery Type:
Rechargeable
Category Name:
Electronic Timers
Contact Form:
1NO-1NC SPDT
Country:
USA/Canada
Dimensions:
60 mm H x 60 mm W x 32 mm D
Display Type:
LCD
Electrical Connections:
Quick Connect
Horsepower:
1/2, 1
1/2, 1 hp
Length:
3.0
Mounting Type:
Panel
Number of Poles:
1
Operation Mode:
24 hr/7 Days
Series:
FM1D14
Standard/Approvals:
RoHS Compliant|cULus Listed|cCSAus Certified|HVACR Approved|Title CA 20 Listed|UL File No. E10694|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
Temperature Rating:
-40 to 131
-40 to 131 deg F
Time Setting:
1 min to 24 hr/7 Days
Type:
1-Channel Digital
Unspsc:
39122208
Voltage Rating:
24
24 VAC/VDC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Intermatic
