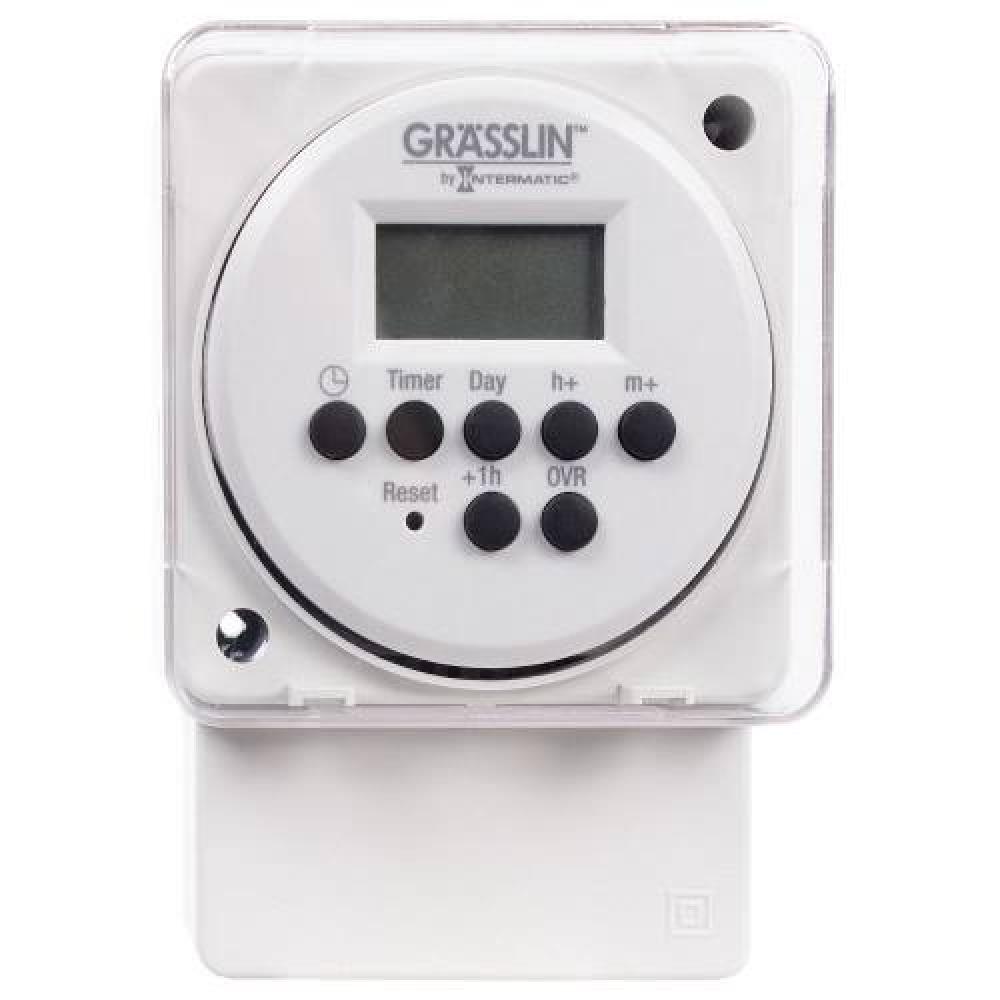

Intermatic® Grasslin FM1D14A-24 Electronic Time Switch With Clear Dust Cover, 24 hr to 7 Days Time Setting, 24 VAC/VDC, 0.5 hp, 1 hp, 1SPDT 1NO-1NC Contact Form, 1 Pole

Specifications

Details

Category Level 1:

Industrial Control

Category Level 2:

Timers

Category Level 3:

Electronic Timers

Amperage Rating:

15 A

Application:

Pumps, Fans, Heaters, HVAC, Machinery, Commercial, Industrial, Generator Exercising, Scheduling Occupied/Unoccupied Ventilation System Operation, Parts Washer, Commercial Refrigeration, Pump Control, Motor Control, Fan Control, HVAC Control Circuits, Photo

Category Name:

Electronic Timers

Contact Form:

1NO-1NC 1SPDT

1SPDT 1NO-1NC

Country:

USA/Canada

Dimensions:

2.36 in H x 2.36 in W x 2.06 in D

Display Type:

Digital LCD

Electrical Connections:

24 AWG Wire Lead

Horsepower:

0.5, 1

1/2 hp, 1 hp

Length:

5.0

Mounting Type:

DIN Rail/Surface

Surface/DIN Rail

Number of Channels:

Number of Poles:

Number of Pulse Events:

Operation Mode:

7 days

Series:

FM1D14

Standard/Approvals:

RoHS Compliant|cULus File No. E10694|HVACR Approved|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation

Temperature Rating:

-40 to 131

-40 to 131 deg F

Time Setting:

24 hr to 7 Days

Unspsc:

39122208

Voltage Rating:

24 VAC/VDC

Volume:

0.0

Weight:

1.0

Additional Information

Manufactured By:

Intermatic
