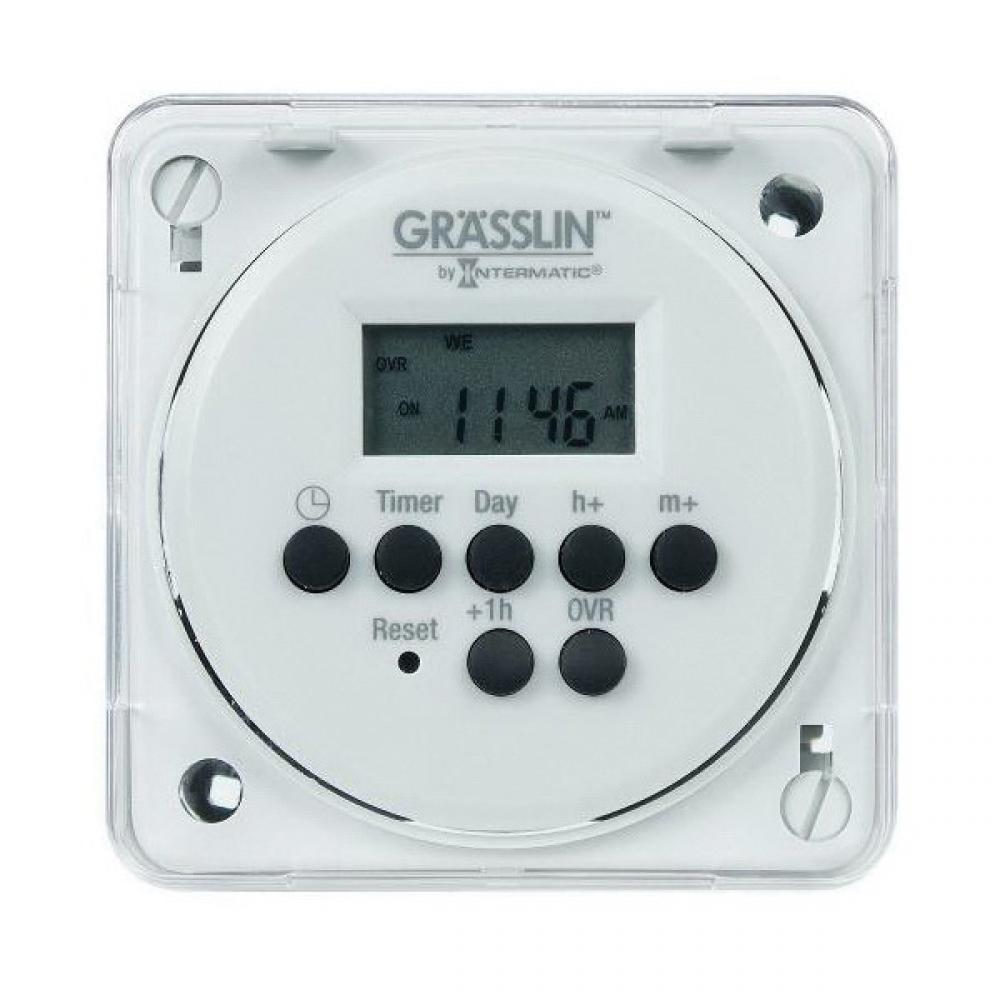

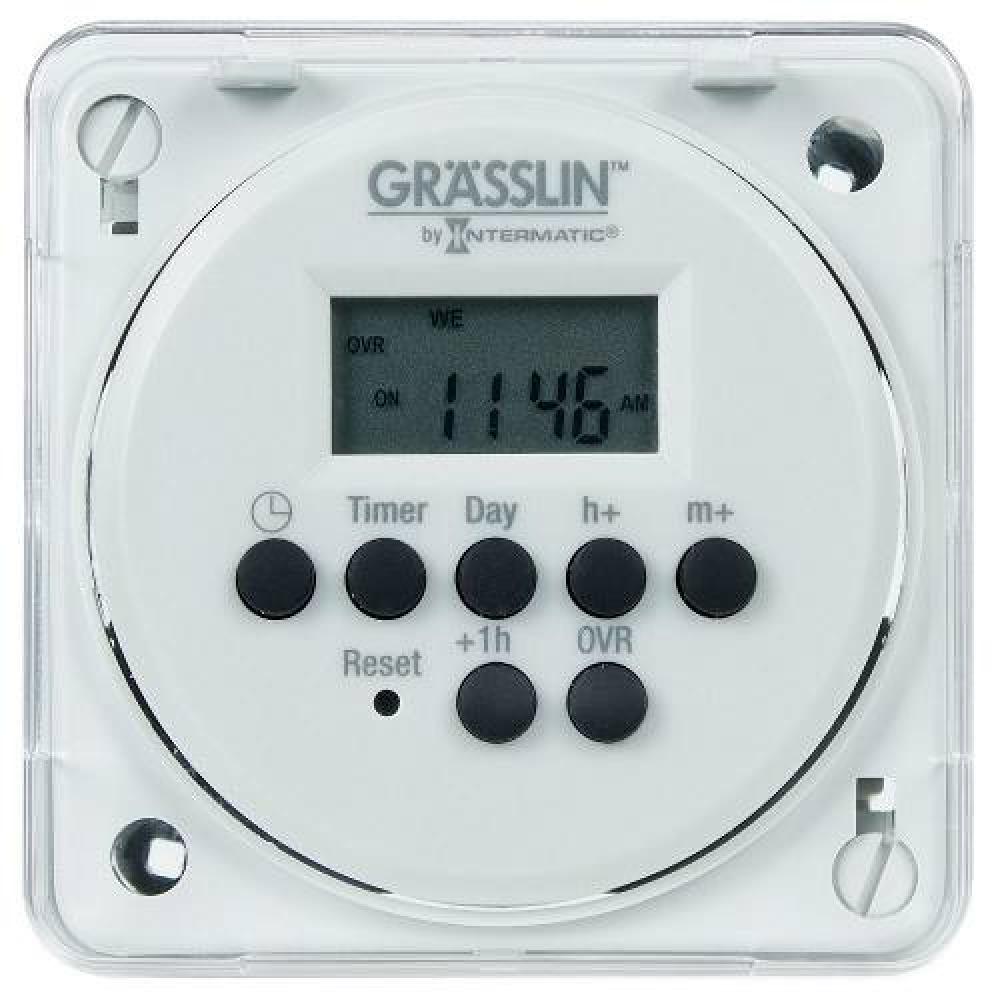

Intermatic FM1D14E12

Intermatic FM1D14E12 by Intermatic

Call for Price
  • Part Number: FM1D14E-12
  • UPC: 00078275143203
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Intermatic® Grasslin FM1D14E-12 Electronic Time Switch With Clear Dust Cover, 24 hr to 7 Days Time Setting, 12 VDC, 0.5 hp, 1 hp, 1SPDT 1NO-1NC Contact Form, 1 Pole
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Timers
Category Level 3:
Electronic Timers
Amperage Rating:
15
15 A
Application:
Pumps, Fans, Heaters, HVAC, Machinery, Commercial, Industrial, Generator Exercising, Scheduling Occupied/Unoccupied Ventilation System Operation, Parts Washer, Commercial Refrigeration, Pump Control, Motor Control, Fan Control, HVAC Control Circuits, Photo
Category Name:
Electronic Timers
Contact Form:
1NO-1NC 1SPDT
1SPDT 1NO-1NC
Country:
USA/Canada
Dimensions:
2.36 in H x 2.36 in W x 2.06 in D
Display Type:
Digital LCD
Electrical Connections:
24 AWG Wire Lead
Horsepower:
0.5, 1
1/2 hp, 1 hp
Length:
3.0
Mounting Type:
Flush
Number of Channels:
1
Number of Poles:
1
Number of Pulse Events:
14
Operation Mode:
7
7 days
Series:
FM1D14
Standard/Approvals:
RoHS Compliant|cULus File No. E10694|HVACR Approved|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
Temperature Rating:
-40 to 131
-40 to 131 deg F
Time Setting:
24 hr to 7 Days
Unspsc:
39122208
Voltage Rating:
12
12 VDC
Volume:
0.0
Weight:
1.0
Additional Information
Manufactured By:
Intermatic
