Intermatic FM1D20240U

Intermatic FM1D20240U by Intermatic

Call for Price
  • Part Number: FM1D20-240U
  • UPC: 00078275116368
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

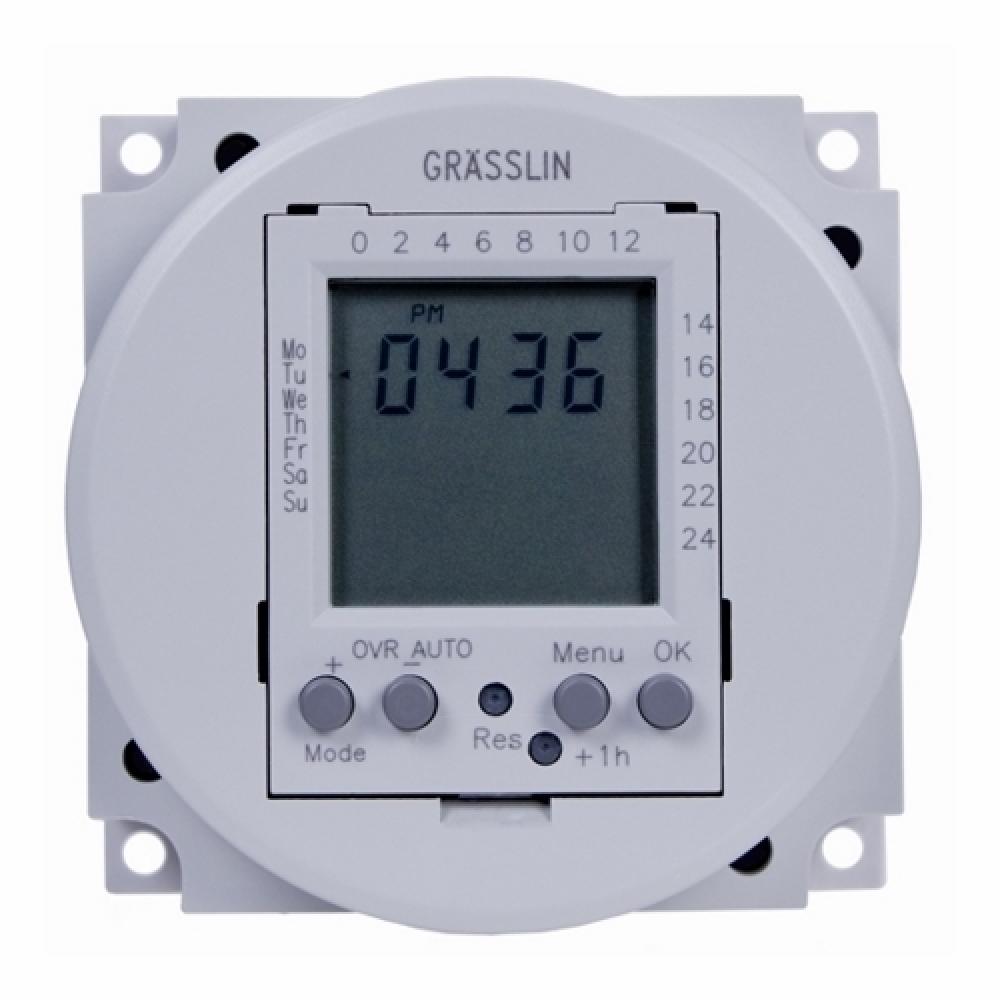

Intermatic® Grasslin FM1D20-240U Electronic Time Switch, 1 min to 24 hr/7 Days Time Setting, 240 VAC, 0.5 hp, 1 hp, 1SPDT 1NO-1NC Contact Form, 1 Pole
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Timers
Category Level 3:
Electronic Timers
Amperage Rating:
16
16 A
Application:
Pumps, Fans, HVACR, Commercial, Industrial, Machinery, HVAC, Lighting, Generator Exercising, Scheduling Occupied/Unoccupied Ventilation System Operation, Parts Washer, Commercial Refrigeration, Pump Control, Motor Control, Fan Control, HVAC Control Circuit
Battery Type:
CR2032 Lithium
Category Name:
Electronic Timers
Contact Form:
1NO-1NC 1SPDT
1SPDT 1NO-1NC
Country:
USA/Canada
Dimensions:
2.36 in H x 2.36 in W x 2.06 in D
Display Type:
Large Digital LCD
Large LCD
Electrical Connections:
1/4 in Quick Connect
Enclosure Type:
NEMA 1
Horsepower:
0.5, 1
1/2 hp, 1 hp
Length:
3.0
Mounting Type:
Panel
Number of Channels:
1
Number of Poles:
1
Number of Pulse Events:
20
Operation Mode:
24 hr/7 Days
Series:
FM1D20
Standard/Approvals:
RoHS Compliant|CE Certified|cULus File No. E10694|HVACR Approved|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
Temperature Rating:
-13 to 131
-13 to 131 deg F
Time Setting:
1 min to 24 hr/7 Days
Unspsc:
39122208
Voltage Rating:
240
240 VAC
Volume:
0.0
Weight:
0.0
