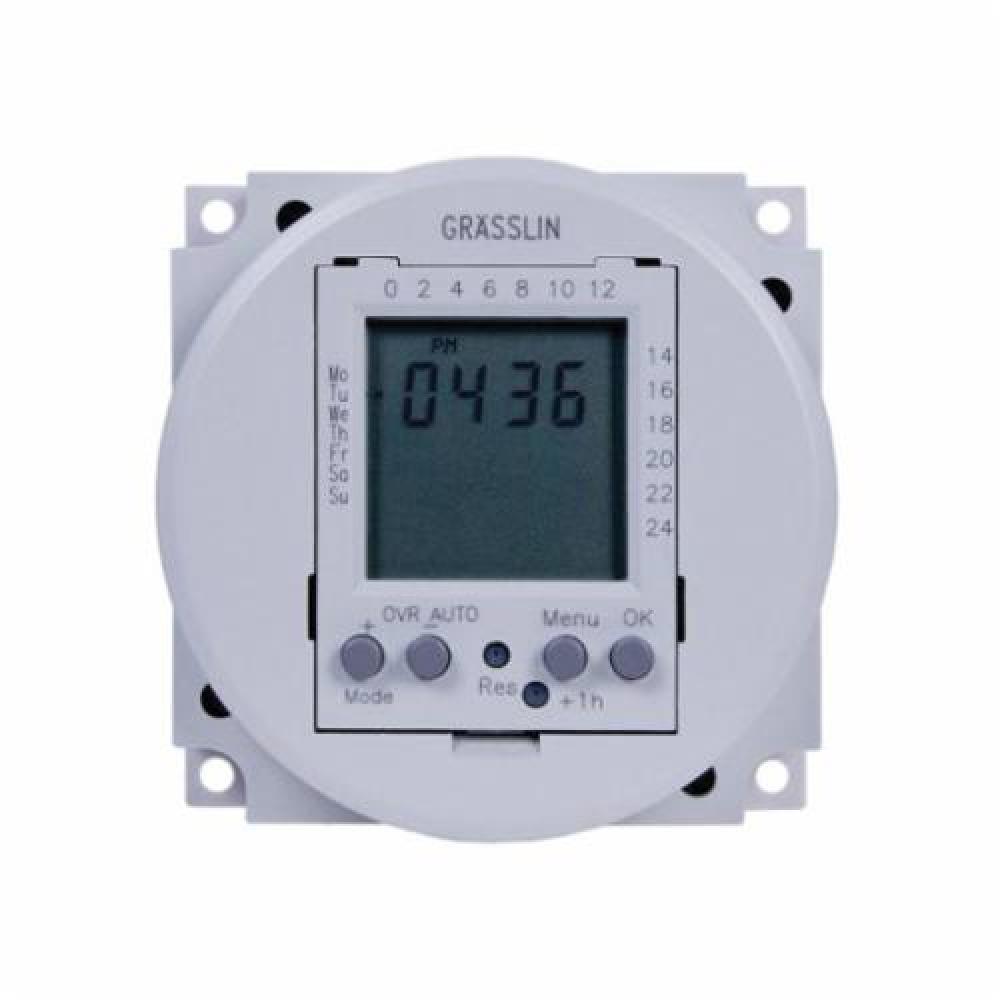

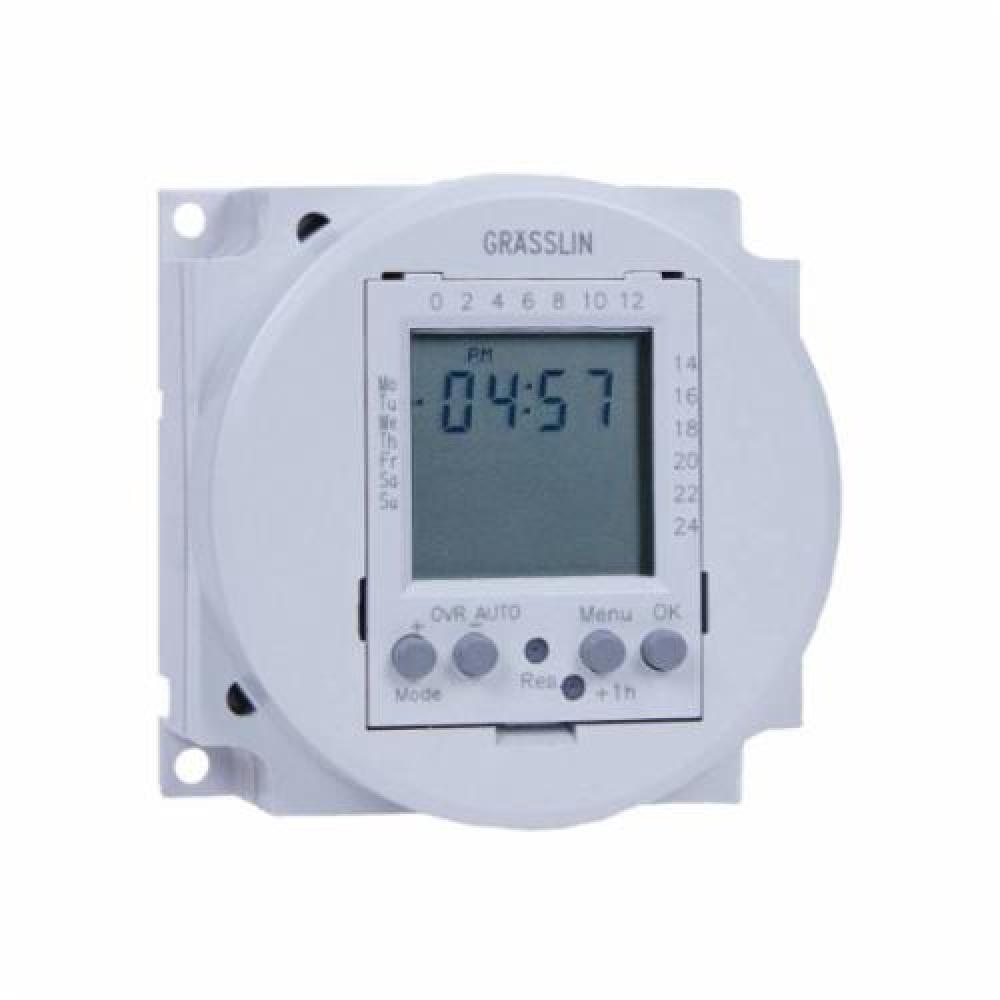

Intermatic® Grasslin® FM1D20 1-Channel Digital Electronic Timer Switch, 1 min to 24 hr/7 days Time Setting, 24 VAC/VDC, 1/2 hp, 1 hp, 1NO-1NC SPDT Contact Form, 1 Pole

Specifications

Details

Category Level 1:

Industrial Control

Category Level 2:

Timers

Category Level 3:

Electronic Timers

Amperage Rating:

8 A

Application:

Generator Exercising, Scheduling Occupied/Unoccupied Ventilation System Operation, Parts Washer, Commercial Refrigeration, Pump Control, Motor Control, Fan Control, HVAC Control Circuits, Lighting Control, Landscape Lighting and Security Gates, Industrial

Battery Type:

CR2032 Lithium

Category Name:

Electronic Timers

Contact Form:

1NO-1NC SPDT

Country:

USA/Canada

Dimensions:

60 mm H x 60 mm W x 52 mm D

Display Type:

LCD

Electrical Connections:

Quick Connect

Enclosure Type:

NEMA 1

Horsepower:

1/2, 1

1/2, 1 hp

Length:

3.0

Mounting Type:

Panel

Number of Poles:

Number of Pulse Events:

Operation Mode:

24 hr/7 Days

Series:

FM1D20

Standard/Approvals:

RoHS Compliant|cULus Listed E10694|Title CA 20 Listed|HVACR Approved|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation

Temperature Rating:

-13 to 131

-13 to 131 deg F

Time Setting:

1 min to 24 hr/7 Days

Type:

1-Channel Digital

Unspsc:

39122208

Voltage Rating:

24 VAC/VDC

Volume:

0.0

Weight:

0.0

Additional Information

Manufactured By:

Intermatic
