Intermatic FM1D20A240

Intermatic FM1D20A240 by Intermatic

Call for Price
  • Part Number: FM1D20A-240
  • UPC: 00078275121645
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

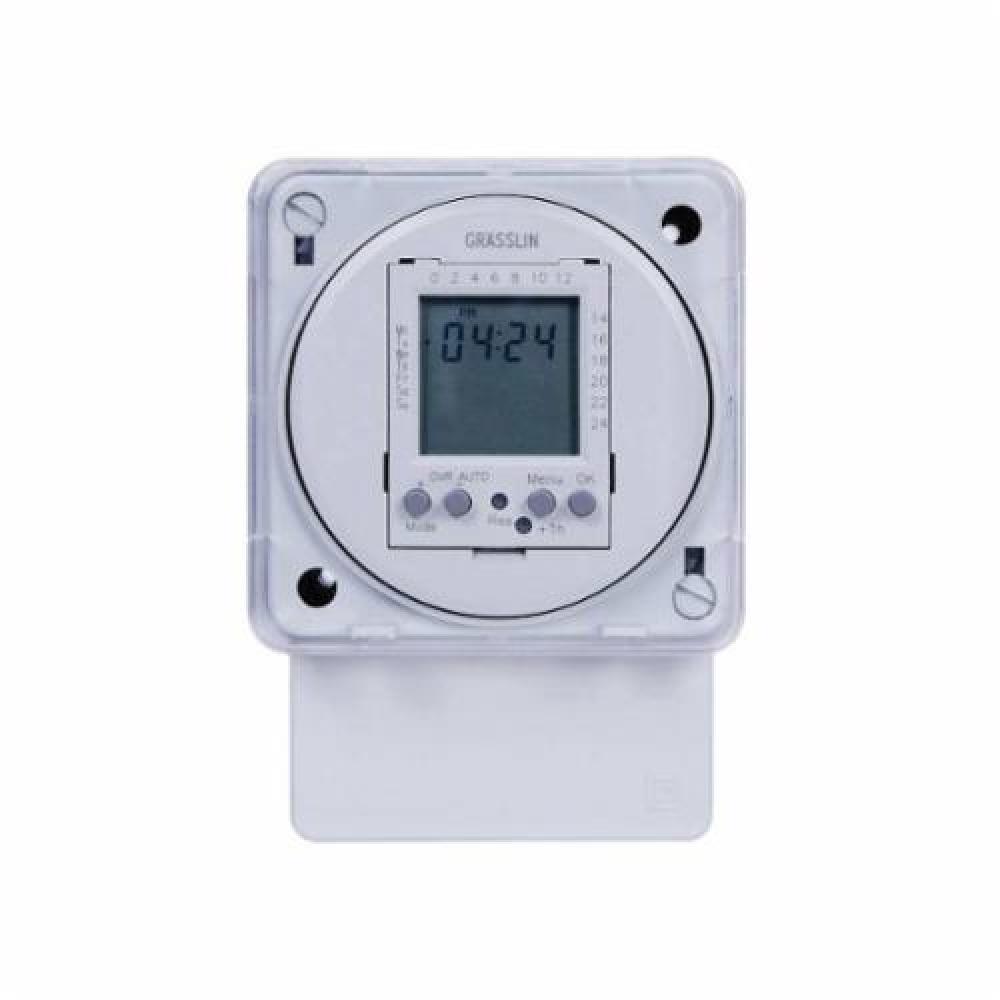

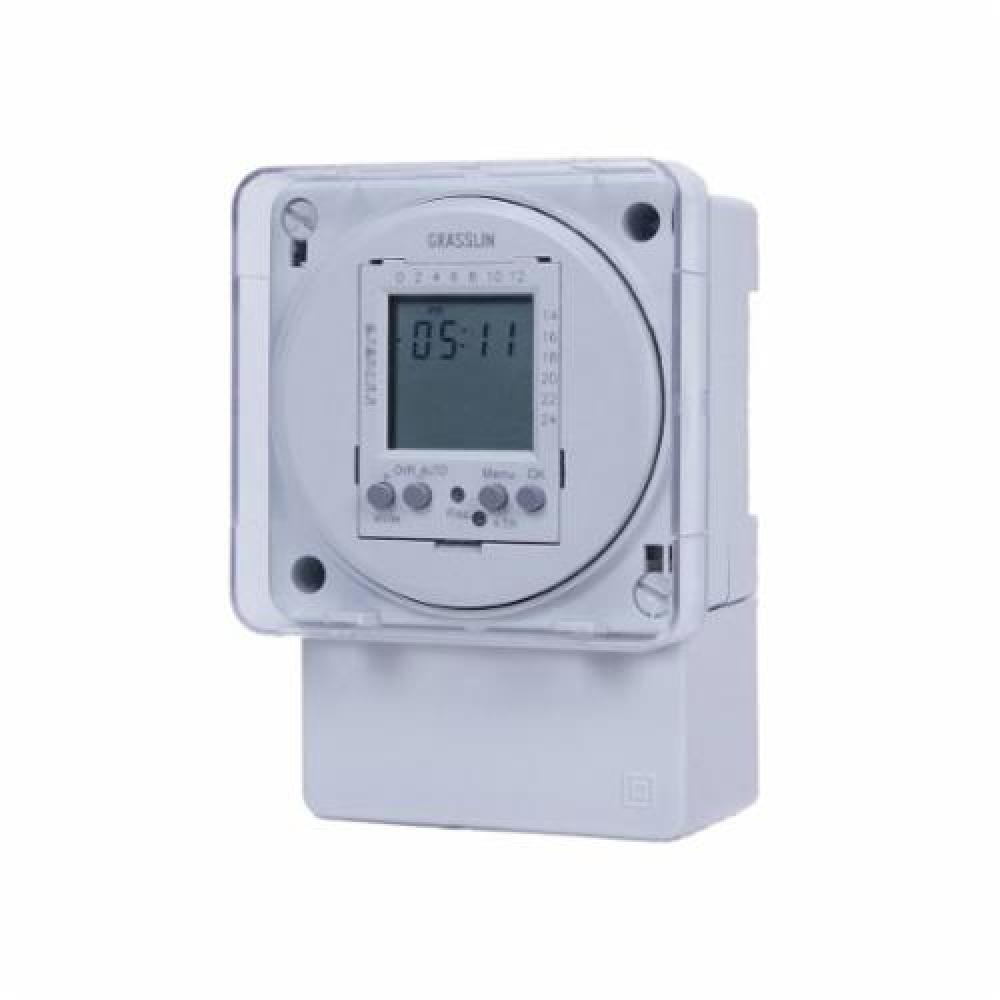

Intermatic® Grasslin® FM1D20 1-Channel Digital Electronic Timer Switch, 1 min to 24 hr/7 days Time Setting, 240 VAC, 1/2 hp, 1 hp, 1NO-1NC SPDT Contact Form, 1 Pole
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Timers
Category Level 3:
Electronic Timers
Amperage Rating:
8
8 A
Application:
Generator Exercising, Scheduling Occupied/Unoccupied Ventilation System Operation, Parts Washer, Commercial Refrigeration, Pump Control, Motor Control, Fan Control, HVAC Control Circuits, Lighting Control, Landscape Lighting and Security Gates Applications
Battery Type:
CR2032 Lithium
Category Name:
Electronic Timers
Contact Form:
1NO-1NC SPDT
Country:
USA/Canada
Dimensions:
102.5 mm H x 72 mm W x 52 mm D
Display Type:
LCD
Electrical Connections:
Screw
Enclosure Type:
NEMA 1
Horsepower:
1/2 hp, 1 hp
1/2, 1
Length:
5.0
Mounting Type:
DIN Rail/Surface
Number of Poles:
1
Number of Pulse Events:
20
Operation Mode:
24 hr/7 Days
Series:
FM1D20
Standard/Approvals:
RoHS Compliant|cULus Listed E10694|Title CA 20 Listed|HVACR Approved|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
Temperature Rating:
-13 to 131
-13 to 131 deg F
Time Setting:
1 min to 24 hr/7 Days
Type:
1-Channel Digital
Unspsc:
39122208
Voltage Rating:
240
240 VAC
Volume:
0.0
Weight:
1.0
Additional Information
Manufactured By:
Intermatic
