Intermatic FM1D50A24

Intermatic FM1D50A24 by Intermatic

Call for Price
  • Part Number: FM1D50A-24
  • UPC: 00078275121560
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

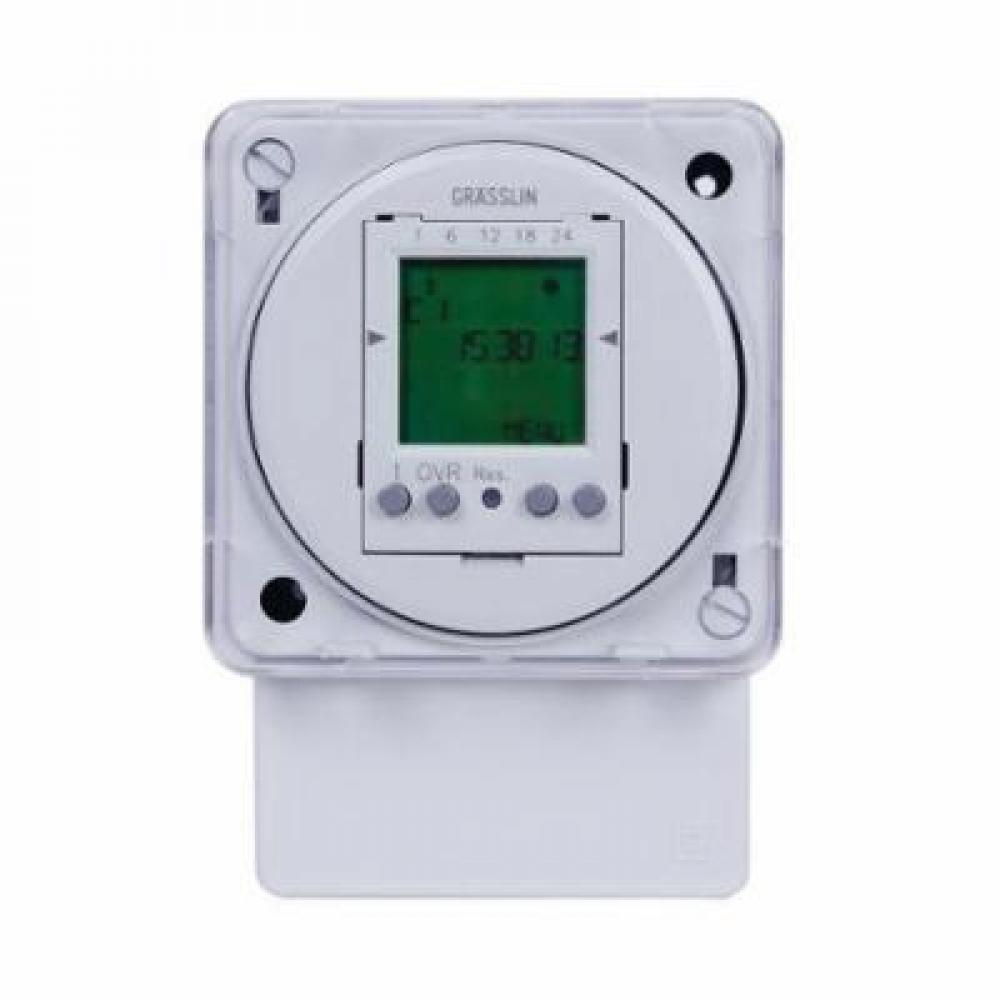

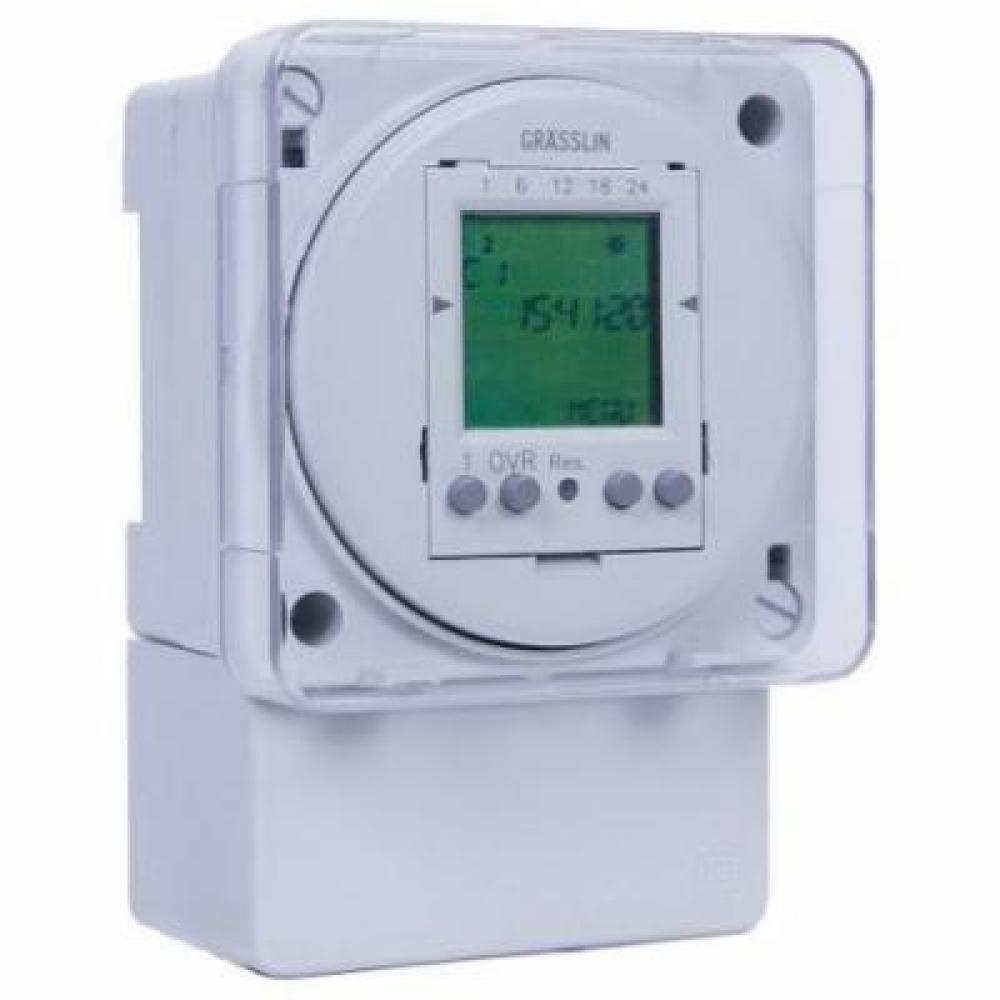

Intermatic® Grasslin® FM1D50A-24 1-Channel Electronic Timer Switch With Clear Dust Cover, 1 min to 24 hr/7 days Time Setting, 24 VAC/VDC, 1NO-1NC SPDT Contact Form, 1 Pole
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Timers
Category Level 3:
Electronic Timers
Amperage Rating:
16
16 A
Application:
HVACR, Pumps, Lighting, Industrial, Commercial, Fans, Heaters, Machinery and Agricultural Equipment
Category Name:
Electronic Timers
Contact Form:
1NO-1NC SPDT
Country:
USA/Canada
Dimensions:
4 in H x 2.83 in W x 2.06 in D
Display Type:
LCD
Electrical Connections:
Screw
Length:
5.0
Mounting Type:
DIN Rail/Surface
Number of Channels:
1
Number of Poles:
1
Operation Mode:
ON/OFF
Pulse Duration:
24 hr/7 days
Series:
FM1D50A
Standard/Approvals:
RoHS Compliant, Title CA 20 Listed, cLRus File No. E10694, California Title 20 Compliant, cULus File No. E10694, HVACR Approved
Temperature Rating:
-13 to 131
-13 to 131 deg F
Time Setting:
1 min to 24 hr/7 Days
Type:
1-Channel Electronic
Unspsc:
39122208
Voltage Rating:
24
24 VAC/VDC
Volume:
0.0
Weight:
1.0
Additional Information
Manufactured By:
Intermatic
