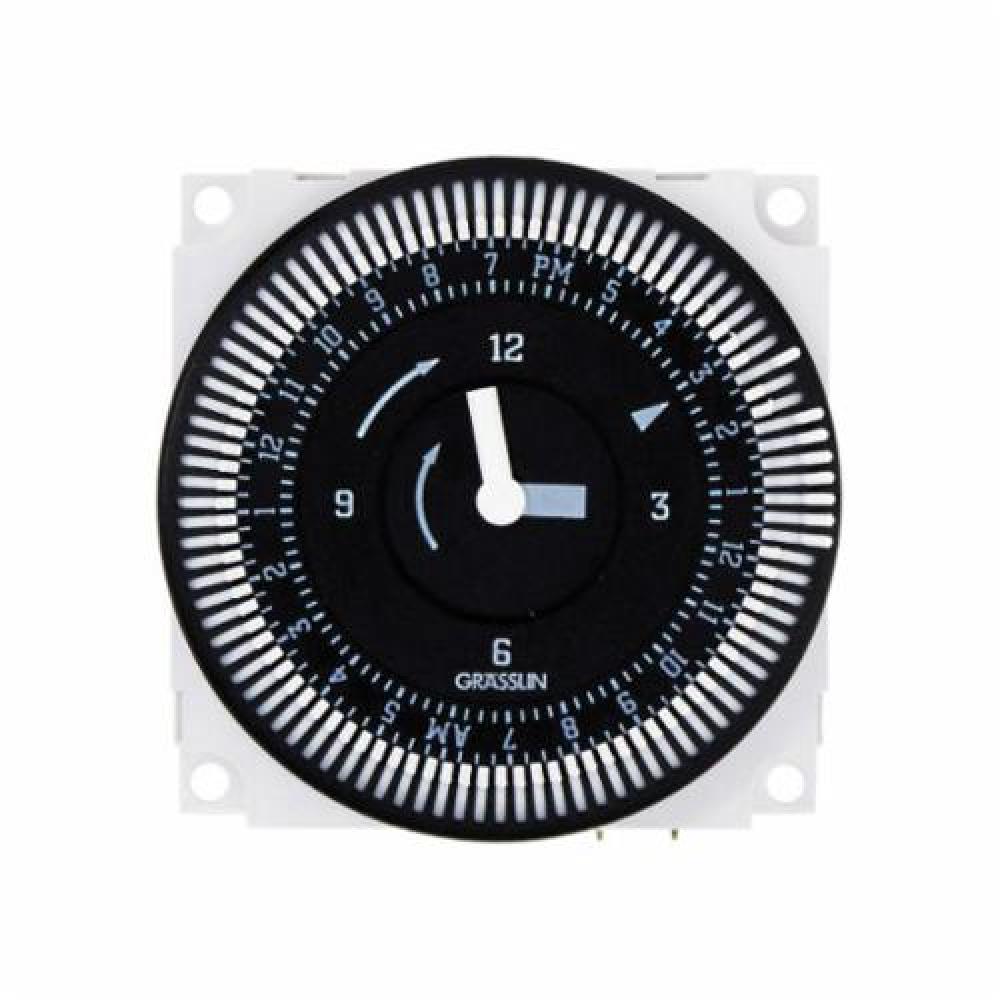

Intermatic FM1STUZ120U

Intermatic FM1STUZ120U by Intermatic

Call for Price
  • Part Number: FM1STUZ-120U
  • UPC: 00614573121019
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Intermatic® Grasslin® FM1 Synchronous Electromechanical Timer Module, 15 min to 24 hr Time Setting, 120 VAC, 1 hp, 1NO-1NC SPDT Contact Form, 1 Pole
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Timers
Category Level 3:
Electromechanical Timers
Amperage Rating:
21
21 A
Application:
HVACR, Lighting, Security, Circulating Pumps, Spas, OEM and Robust Applications
Category Name:
Electromechanical Timers
Contact Form:
1NO-1NC SPDT
Country:
USA/Canada
Dimensions:
2.36 in H x 2.36 in W x 1.25 in D
Electrical Connections:
1/4 in Quick Connect
Horsepower:
1
1 hp
Length:
4.0
Mounting Type:
Panel
Number of Poles:
1
Pulse Duration:
24
24 hr
Series:
FM1
Standard/Approvals:
RoHS Compliant|CE Certified|HVACR Approved|cULus File No. 10694|cCSAus File No. LR3730|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
Temperature Rating:
-40 to 185
-40 to 185 deg F
Time Setting:
15 min to 24 hr
Type:
Synchronous
Unspsc:
39122208
Voltage Rating:
120
120 VAC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Intermatic
