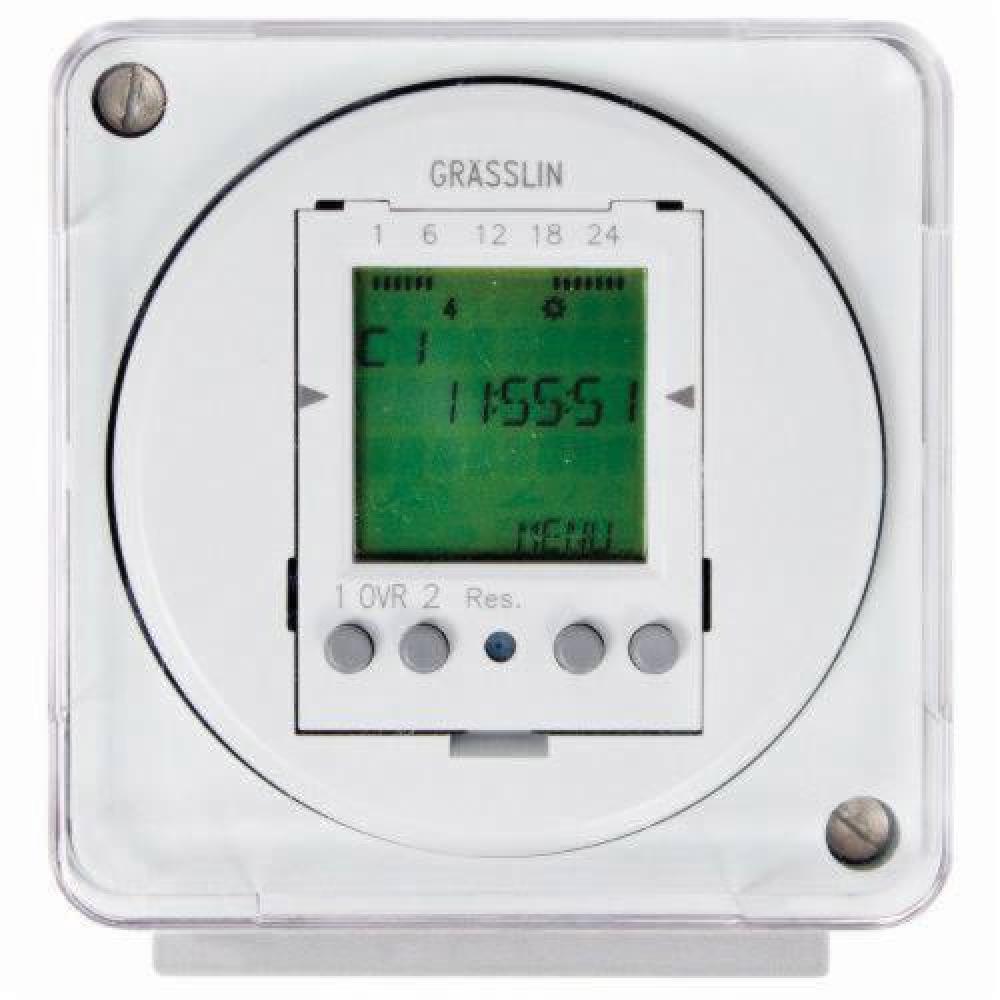

Intermatic® Grasslin® FM2D50-24 2-Channel Electronic Timer Switch, 1 min to 24 hr/7 days Time Setting, 24 VAC/VDC, 1 hp, 1/2 hp, 1NO-1NC SPDT Contact Form, 1 Poles

Specifications

Details

Category Level 1:

Industrial Control

Category Level 2:

Timers

Category Level 3:

Electronic Timers

Amperage Rating:

16 A

Application:

Generator Exercising, Scheduling Occupied/Unoccupied Ventilation System Operation, Parts Washer, Commercial Refrigeration, Pump Control, Motor Control, Fan Control, HVAC Control Circuits, Lighting Control, Landscape Lighting and Security Gates, Heaters, HV

Battery Type:

CR2032 Lithium

Category Name:

Electronic Timers

Contact Form:

1NO-1NC SPDT

Country:

USA/Canada

Dimensions:

2.83 in H x 2.83 in W x 2.28 in D

Display Type:

LCD

Electrical Connections:

Screw

Enclosure Type:

NEMA 1

Horsepower:

1 hp, 1/2 hp

1, 1/2

Length:

4.0

Mounting Type:

DIN Rail/Surface

Number of Channels:

Number of Poles:

Number of Pulse Events:

Operation Mode:

24 hr/7 Days

Standard/Approvals:

RoHS Compliant|cULus Listed E10694|Title CA 20 Listed|HVACR Approved|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation

Temperature Rating:

-13 to 131

-13 to 131 deg F

Time Setting:

1 min to 24 hr/7 Days

Type:

2-Channel

Unspsc:

39122208

Voltage Rating:

24 VAC/VDC

Volume:

0.0

Weight:

0.0

Additional Information

Manufactured By:

Intermatic
