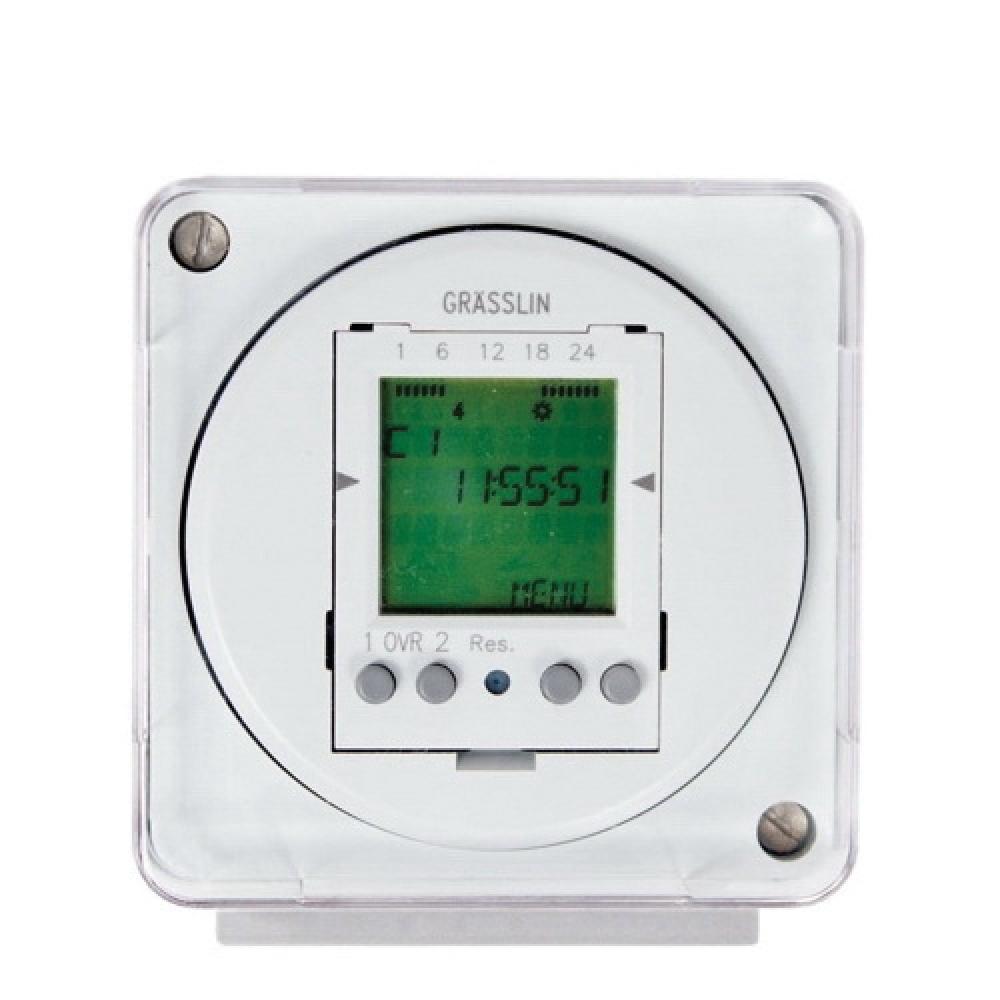

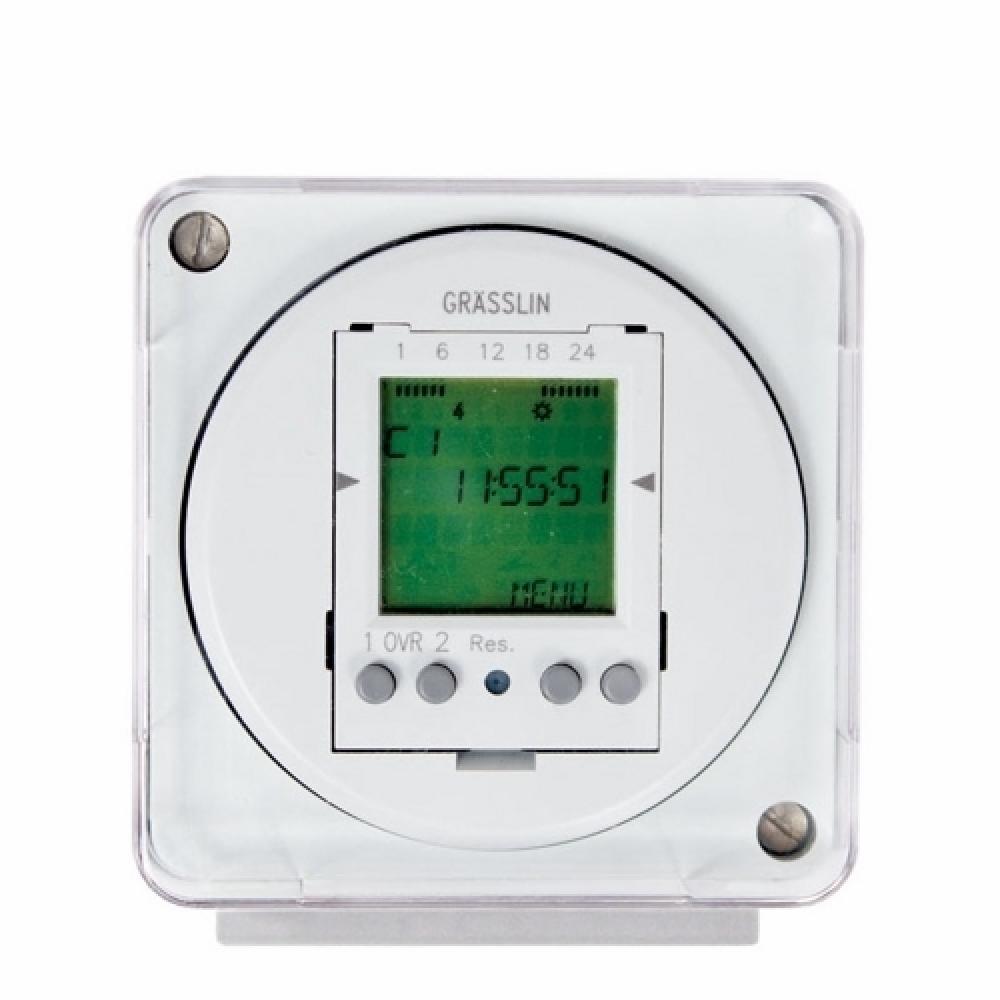

Intermatic FM2D50240

Intermatic FM2D50240 by Intermatic

Call for Price
  • Part Number: FM2D50-240
  • UPC: 00078275116313
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Intermatic® Grasslin FM2D50-240 Electronic Time Switch, 1 min to 24 hr/7 Days Time Setting, 240 VAC, 0.5 hp, 1 hp, 2SPDT 1NO-1NC Contact Form, 1 Pole
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Timers
Category Level 3:
Electronic Timers
Amperage Rating:
8/12/16
8/12/16 A
Application:
Heaters, HVAC, Lighting, Machinery, Commercial, Industrial, Agricultural, Generator Exercising, Scheduling Occupied/Unoccupied Ventilation System, Operation Parts, Washer, Commercial Refrigeration, Pump Control, Motor Control, Fan Control, Control Circuits
Category Name:
Electronic Timers
Contact Form:
1NO-1NC 2SPDT
2SPDT 1NO-1NC
Country:
USA/Canada
Dimensions:
2.83 in H x 2.83 in W x 2.28 in D
Display Type:
Large Digital LCD
Large LCD
Electrical Connections:
Screw Terminal
Horsepower:
0.5, 1
1/2 hp, 1 hp
Length:
4.0
Mounting Type:
DIN Rail/Surface
Surface/DIN Rail
Number of Channels:
2
Number of Poles:
1
Number of Pulse Events:
50
Operation Mode:
24 hr/7 Days
Series:
FM2D50
Standard/Approvals:
RoHS Compliant|CE Certified|cULus File No. E10694|HVACR Approved|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
Temperature Rating:
-13 to 131
-13 to 131 deg F
Time Setting:
1 min to 24 hr/7 Days
Unspsc:
39122208
Voltage Rating:
240
240 VAC
Volume:
0.0
Weight:
0.0
Additional Information
Manufactured By:
Intermatic
