Intermatic GM40AV

Intermatic GM40AV by Intermatic

Call for Price
  • Part Number: GM40AV
  • UPC: 00078275123755
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

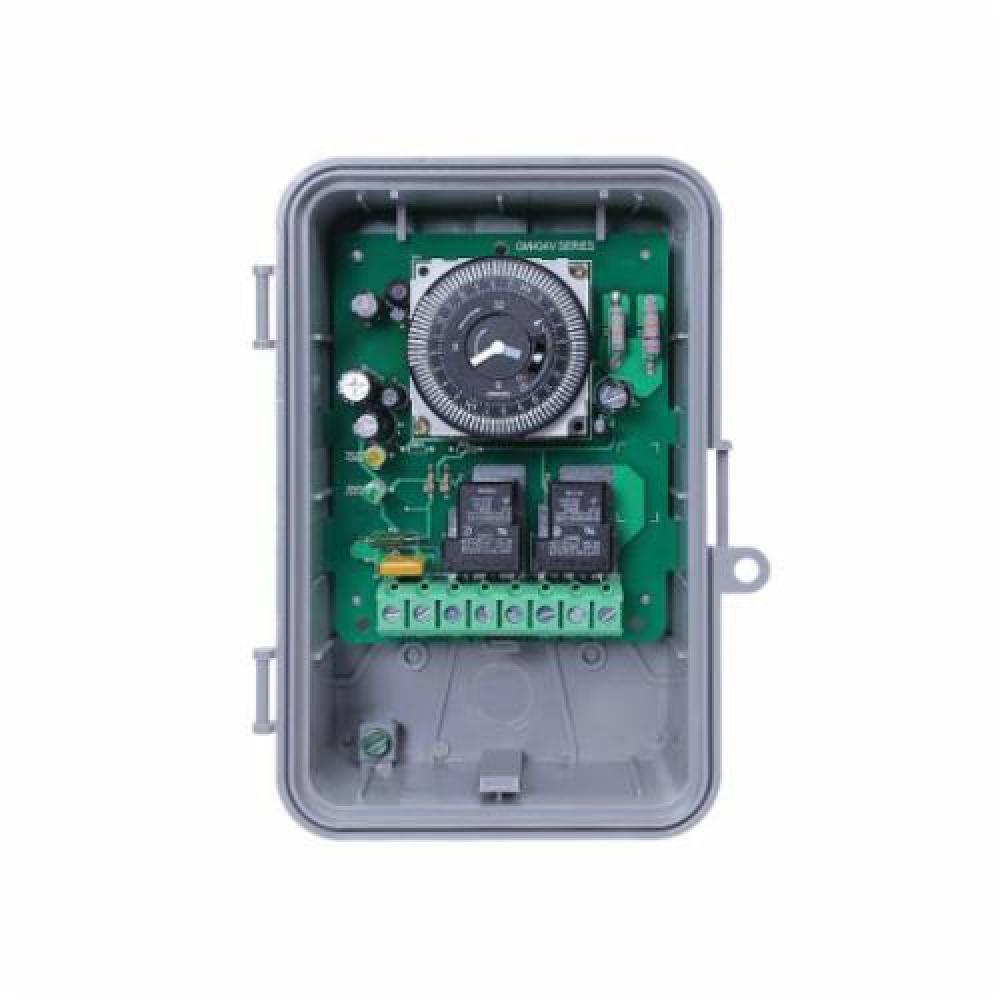

Intermatic® Grasslin® GM40 Auto Voltage Electromechanical Time Switch, 15 min to 24 hr Time Setting, 120 to 208/240/277 VAC, 1 hp, 2 hp, 2NO-2NC DPDT Contact Form, 2 Poles
Specifications
Details
Category Level 1:
Industrial Control
Category Level 2:
Timers
Category Level 3:
Electromechanical Timers
Amperage Rating:
40
40 A
Application:
General Purpose, Lighting, HVACR, Pumps, Motors, Fans, Access Controls, Agricultural , Indoor and Outdoor Applications
Category Name:
Electromechanical Timers
Contact Form:
2NO-2NC DPDT
Country:
USA/Canada
Dimensions:
8.88 in H x 6.61 in W x 3 in D
Electrical Connections:
Screw Box Lug
Enclosure Type:
NEMA 3R
Horsepower:
1 hp, 2 hp
1, 2
Length:
7.0
Mounting Type:
Wall
Number of Poles:
2
Pulse Duration:
24
24 hr
Series:
GM40
Standard/Approvals:
RoHS Compliant|cULus Listed File No. E10694|HVACR Approved|RoHS Compliant|PROP65: This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
Temperature Rating:
-40 to 131
-40 to 131 deg F
Time Setting:
15 min to 24 hr
Type:
Auto Voltage
Unspsc:
39122208
Voltage Rating:
120 to 208/240/277
120 to 208/240/277 VAC
Volume:
0.0
Weight:
11.0
Additional Information
Manufactured By:
Intermatic
