Intermatic IG13002T1C3

Intermatic IG13002T1C3 by Intermatic

Call for Price
  • Part Number: IG1300-2T-1C3
  • UPC: 00078275124387
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

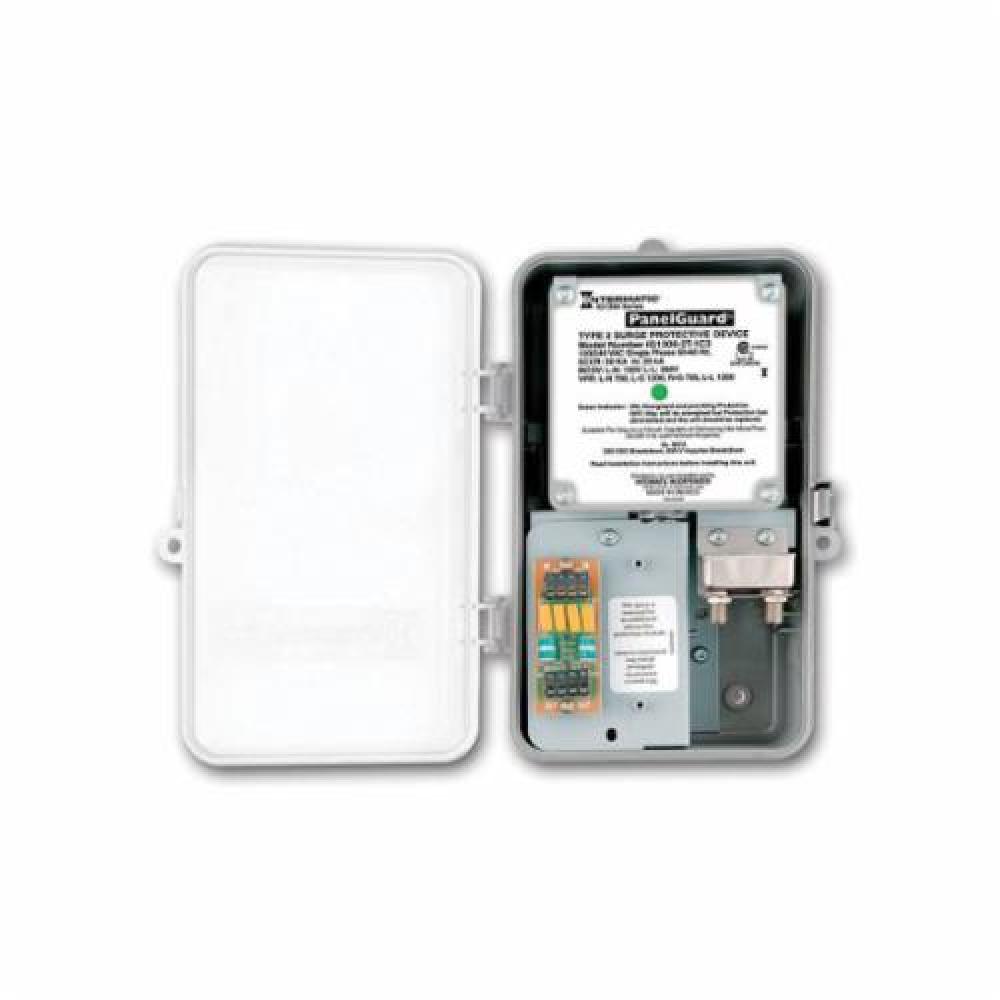

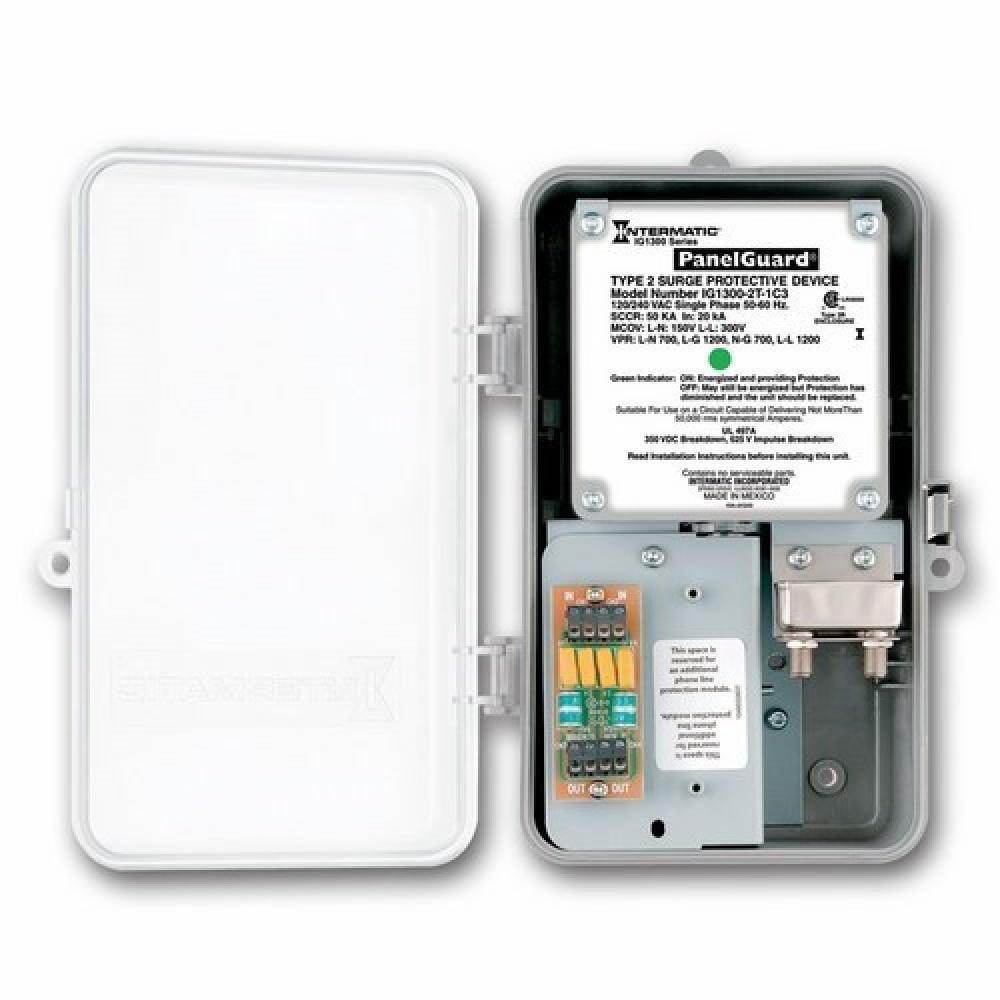

Intermatic® IG1300 Surge Protective Device With (2) Telephone and Coaxial Cable, 120/240 VAC, 50/60 Hz, 50 kA SCCR, 2 Phase
Specifications
Details
Category Level 1:
UPS & Power Conditioning
Category Level 2:
Surge Protective Devices
Category Level 3:
AC Surge Protective Devices
Application:
Residential and Light Commercial Applications
Category Name:
AC Surge Protective Devices
Country:
USA/Canada
Dimensions:
9.38 in H x 5.25 in W x 4 in D
Electrical Ratings:
120/240
120/240 VAC
Enclosure Type:
NEMA 1/2/3R
Environmental Conditions:
-35 to 85 deg C Operating Temperature
Frequency Rating:
50/60
50/60 Hz
Indicator Type:
Green LED
Length:
11.0
Material:
Polycarbonate
Modes of Protection:
L1-N/L2-N/L1-G/L2-G/N-G/L1-L2
Mounting Type:
Wall
Nominal Discharge Current:
20
20 kA
Phase:
2
Series:
IG1300
Short Circuit Current Rating:
50
50 kA
Standard/Approvals:
RoHS Compliant|ANSI/UL 1449 3rd Edition|CSA Certified|cCSAus Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Unspsc:
39121610
Volume:
0.0
Weight:
2.0
Additional Information
Manufactured By:
Intermatic
